Retrofit rear-entertainment with two screens - AZ82.60-P-0015GZ

MODEL 164.1/8 except CODE (864) Rear entertainment system except CODE (866) Pre-installation for rear entertainment system

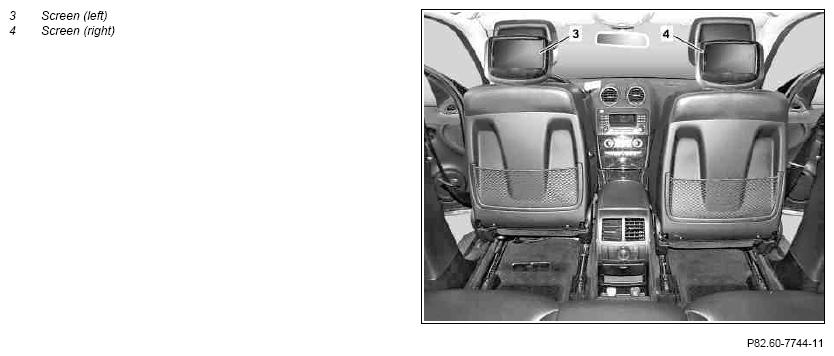

Fig 1: Identifying Rear-Entertainment Screens

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Loosen center console in rear area		AR68.20-P-2000GZ
2	Loosen front seats		AR91.10-P-1000GZ
3.1	Loosen left and right front seat head restraint motor	On vehicles with  code (275) Memory package (driver seat, steering column, mirrors) or with  code (242) Electrically adjustable front passenger seat with memory Do not completely remove the head restraint, simply loosen it.	AR91.29-P-1432GZ
3.2	Move left and right front seat head restraint all the way to the top	On vehicles without  code (275) Memory package (driver seat, steering column, mirror) and without  code (242) Electrically adjustable front passenger seat with memory
	Install
4	Retrofit bracket of screens (3, 4)		AZ82.60-P-0015-04GZ
			*BA82.60-P-1001-01A
5	Retrofit rear entertainment wiring harness	Ensure that the wiring harnesses are not damaged by chafing or pinching. Otherwise the corresponding wiring harness must be replaced.
		Vehicles without  code (275) Memory package (driver seat, steering column, mirrors)	AZ82.60-P-0015-02GY
		Vehicles with  code (275) Memory package (driver seat, steering column, mirrors)	AZ82.60-P-0015-02GZ
6	Retrofit rear entertainment control unit		AZ82.60-P-0015-01GZ
7	Retrofit screens (3, 4)		AZ82.60-P-0015-03GZ
8	Install remaining parts
9	Program rear entertainment infrared channel		AZ82.60-P-0015-05GZ
10	Program rear entertainment regional code		AZ82.60-P-0015-06GZ
11	Document retrofitted equipment using vehicle documentation (VeDoc)	Attach "Rear Seat Entertainment system with two screens retrofitted as per AZ82.60-P-0015GZ " note under field organization text to design group 82 and design group 91.
12	Perform function test	See rear entertainment operating instructions.
