Remove/install front seat headrest motor - AR91.29-P-1432GZ
MODEL 164
Shown on removed front seat

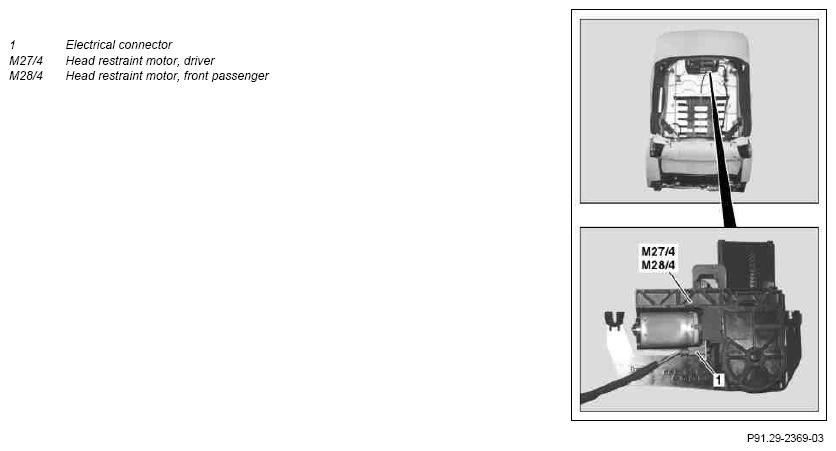

Fig 1: Identifying Front Seat Headrest Motor Remove/Install Components - Shown On Removed Front Seat
| Remove/install | |||
| 1 | Remove backrest shell from front seat backrest | AR91.10-P-1915GZ | |
| 2 | Remove front seat head restraint | AR91.16-P-0040GZ | |
| 3 | Slide head restraint motor, driver (M27/4) or head restraint motor, front passenger (M28/4) to the right | ||
| 4 | Remove head restraint motor, driver (M27/4) or head restraint motor, front passenger (M28/4) downwards | ||
| 5 | Disconnect electrical connector (1) from head restraint motor, driver (M27/4) or head restraint motor, front passenger (M28/4) and remove motor | ||
| 6 | Install in the reverse order |
