Retrofit rear entertainment system - AN82.60-P-0013GZ

MODEL 164

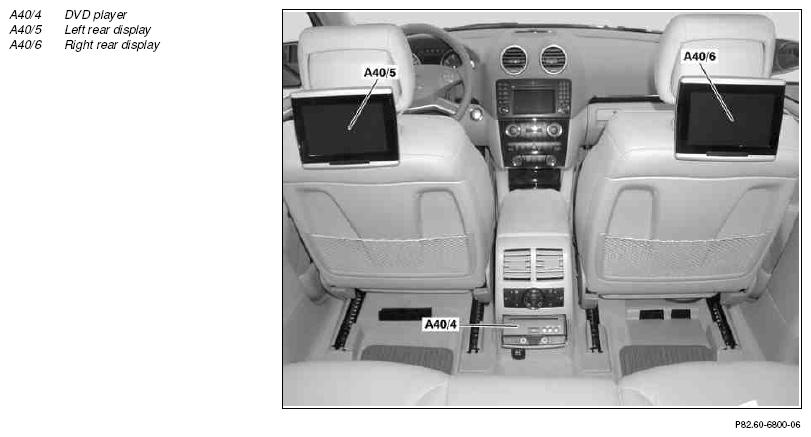

Fig 1: Identifying Rear Entertainment System

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove back shell from front seat backrest		AR91.10-P-1915GZ
2	Remove rear center console switch module	Dispose of rear center console. Switch module and air vent will be reinstalled in new part.	AR68.20-P-2210GZ
3	Remove 12 V socket	12 volt socket will be reinstalled in new part.
		Second seat row.	AR54.10-P-1000RTA
	Install
4	Retrofit DVD player (A40/4)		AN82.60-P-0013-01GZ
5	Retrofit left, right rear display (A40/5, A40/6)		AN82.60-P-0013-02GZ
6	Install back shell at front seat backrest		AR91.10-P-1915GZ
7	Connect STAR DIAGNOSIS		AD00.00-P-2000-04A
8	Enter special equipment on the vehicle data card and the online vehicle data card	Enter code (864) Rear entertainment system. ↓
		Initial startup of retrofits and modifications	AN00.01-P-1001-01V
9	Close STAR DIAGNOSIS		AD00.00-P-2000-04A
10	Document retrofitted equipment using vehicle documentation (VeDoc)	Attach "Rear entertainment system retrofitted as per AN82.60-P-0013GZ " note under field organization texts to design group 82.
11	Carry out function test

PARTS ORDERING NOTES

Part no.	Designation	Quantity
B6 782 7001	RSES parts kit (black), regional code 1	As required
B6 782 7003	RSES parts kit (beige), regional code 1	As required
B6 782 7004	RSES parts kit (gray), country code 1	As required
