Retrofit iPhone kit - AZ82.70-P-0013GZ

MODEL 164 Only for vehicles with iPod

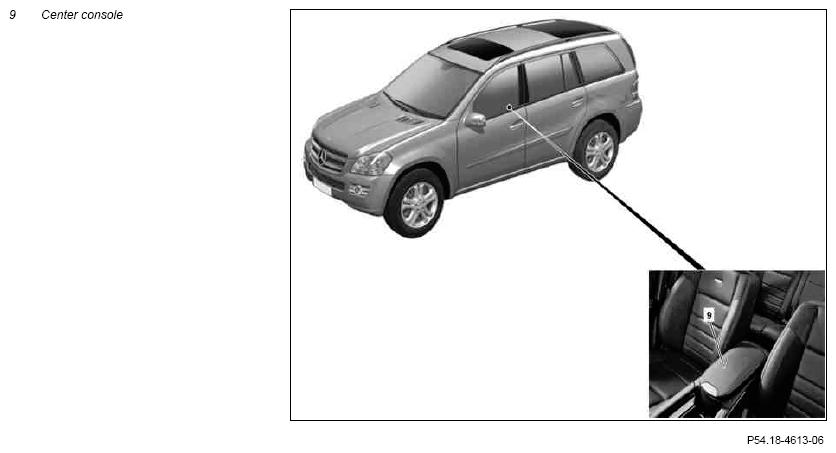

Fig 1: Identifying Center Console

G10118478

Courtesy of MERCEDES-BENZ USA

	Removing
	Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices	No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect battery ground line
			AR54.10-P-0003GZ
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on battery		AH54.10-P-0001-01A
2	Remove radio
			AR82.60-P-7502GZ
3	Remove center console	Only detach and remove center console far enough to ensure the routing of lines.
			AR68.20-P-2000GZ
4	Dismantle center console	Only disassemble as far as necessary to remove stowage compartment.
			AR68.20-P-2150GZ
	Install
5	Retrofit iPhone wiring harness		AZ82.70-P-0001-04GZY
6	Install remaining parts onto vehicle	Operation steps 4 to 1.
7	Carry out function check	Check iPhone functions as per iPhone operating instructions in vehicle.

PARTS ORDERING NOTES

Part no.	Designation	Quantity
A204 820 03 04	Package contents: electrical wiring harness, telephone/iPhone cradle. Assembly: wiring harness, telephone/iPhone cradle to iPod kit	1
