Retrofit audio 20 CD with CD changer - AN82.60-P-0012GZ

MODEL 164

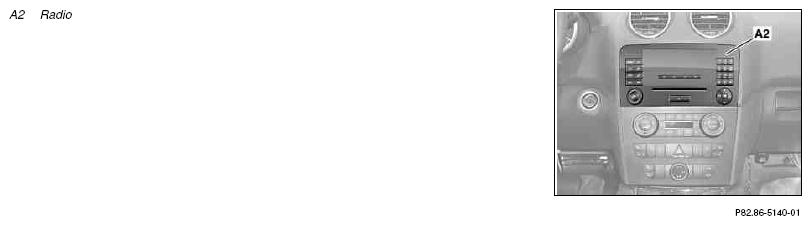

Fig 1: Identifying Radio

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove radio	The removed audio component is no longer required.	AR82.60-P-7502GZ
	Install
2	Install Audio 20 radio (A2)		AR82.60-P-7502GZ
3	Connect STAR DIAGNOSIS		AD00.00-P-2000-04A
4	Enter special equipment on the vehicle data card and the online vehicle data card	Enter code (510) Audio 20 CD with CD changer and delete code of removed audio component. ↓
		Initial startup of retrofits and modifications	AN00.01-P-1001-01V
5	Perform retrofit variant coding	Listed control units must be SCN coded using the Diagnosis Assistance System: Instrument cluster Audio 20 radio (A2)
6	Close STAR DIAGNOSIS		AD00.00-P-2000-04A
7	Document retrofitted equipment using vehicle documentation (VeDoc)	Attach "Audio 20 CD with CD changer retrofitted, as per AN82.60-P-0012GZ " note under the field organization texts to design group 82.
8	Perform function test

PARTS ORDERING NOTES

Part no.	Designation	Quantity
DG 99 (see EPC)	Scope of delivery for Audio 20 CD with CD changer	1
