Retrofit COMAND APS with DVD changer - AN82.85-P-0004GZ

MODEL 164

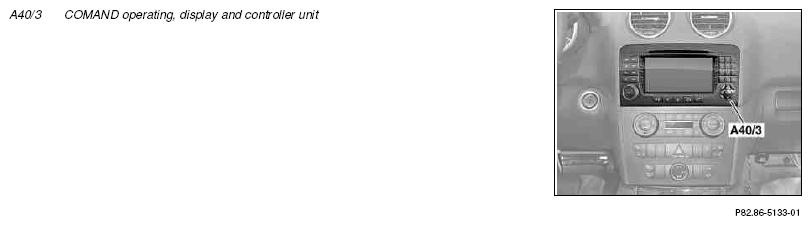

Fig 1: Identifying COMAND Operating, Display And Control Unit

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove radio	The removed audio component is no longer required.	AR82.60-P-7502GZ
	Install
2	Install COMAND operating, display and controller unit (A40/3) with DVD changer		AR82.60-P-7502GZ
3	Connect STAR DIAGNOSIS		AD00.00-P-2000-04A
4	Enter special equipment on the vehicle data card and the online vehicle data card	Enter code (512) COMAND APS with DVD changer and delete code (528) COMAND incl. DVD changer. ↓
		Initial startup of retrofits and modifications	AN00.01-P-1001-01V
5	Perform retrofit variant coding	Listed control units must be SCN coded using the Diagnosis Assistance System: Instrument cluster COMAND operating, display and controller unit (A40/3) with DVD changer
6	Close STAR DIAGNOSIS		AD00.00-P-2000-04A
7	Document retrofitted equipment using vehicle documentation (VeDoc)	Attach "COMAND APS with DVD changer retrofitted, as per AN82.85-P-0004GZ " note under the field organization texts to design group 82.
8	Perform function test

PARTS ORDERING NOTES

Part no.	Designation	Quantity
DG 99 (see EPC)	Scope of delivery for COMAND APS with DVD changer	1
