Retrofit Audio 50 APS with DVD changer - AN82.61-P-0007GZB

MODEL 164

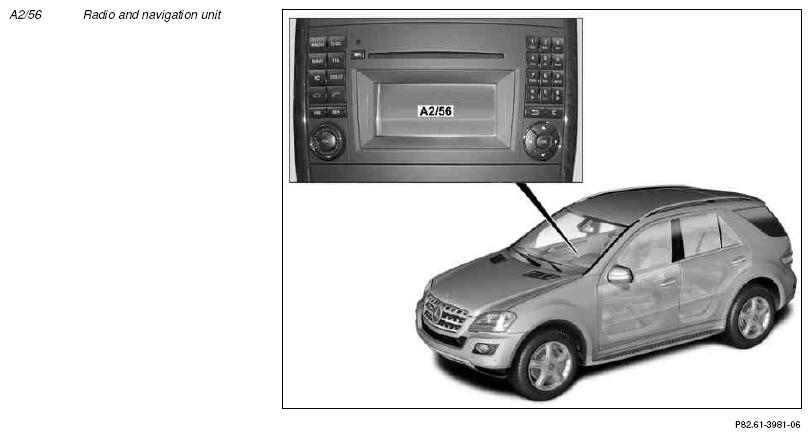

Fig 1: Identifying Radio And Navigation Unit

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove radio	The removed audio component is no longer required.	AR82.60-P-7502GZ
	Install
2	Install radio and navigation unit (A2/56)		AR82.60-P-7502GZ
3	Connect STAR DIAGNOSIS		AD00.00-P-2000-04A
4	Enter special equipment on the vehicle data card and the online vehicle data card	Enter code (511) Audio 50 APS radio with DVD changer and delete code of the removed audio component. ↓
		Initial startup of retrofits and modifications	AN00.01-P-1001-01V
5	Subsequently perform variant coding with STAR DIAGNOSIS	Listed control units must be SCN coded using the Diagnosis Assistance System: Instrument cluster Audio 50 APS radio and navigation unit (A2/56) with DVD changer.
6	Close STAR DIAGNOSIS		AD00.00-P-2000-04A
7	Document retrofitted equipment using vehicle documentation (VeDoc)	Attach "Audio 50 APS radio with DVD changer retrofitted as per AN82.61-P-0007GZB " note under field organization texts to design group 82.
8	Perform function test	See operating instructions of the Audio 50 APS radio and navigation unit (A2/56) with DVD changer.

PARTS ORDERING NOTES

Part no.	Designation	Quantity
DG 99 (see EPC)	Audio 50 APS with DVD changer package	1
