Removing and installing CD changer - AR82.64-P-7508GZ

MODEL 164

Illustrated on model 164.1

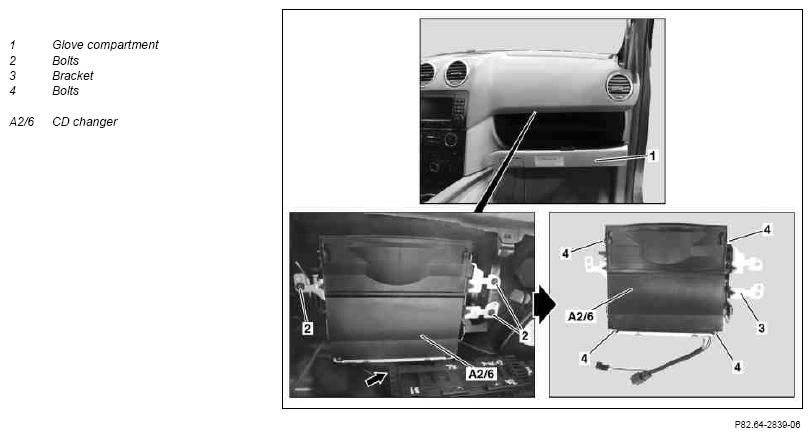

Fig 1: Identifying CD Changer Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off radio and ignition, and remove transmitter key from EIS control unit	On vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
2	Remove glove compartment (1)		AR68.10-P-1400GZ
3	Detach electrical connectors (arrow)	Two electrical connectors.
4	Unscrew bolt (2)	Prop up CD changer (A2/6) to prevent it from falling out.
5	Remove CD changer (A2/6) with bracket (3)
6	Place CD changer (A2/6) onto workbench
7	Remove screws (4)
8	Remove CD changer (A2/6) from bracket (3) towards the front
9	Install in the reverse order
