Remove/install windshield washer nozzle - AR82.35-P-6970GZ
MODEL 164
| Remove/install | |||
| 1 | Remove air inlet duct under the hood | AR83.25-P-1407GZ | |

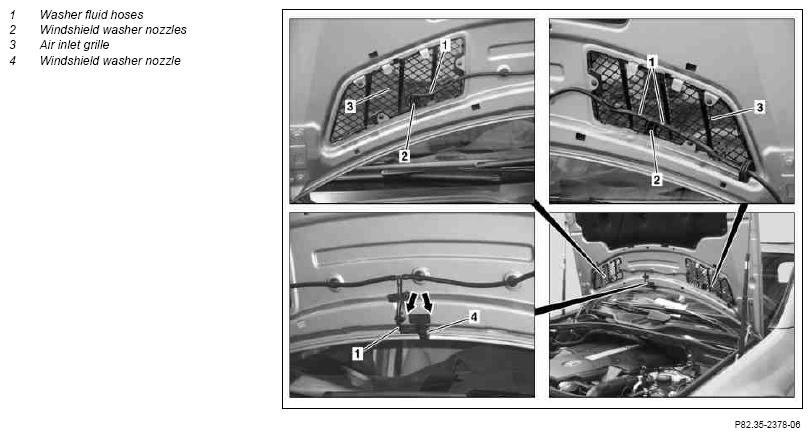

| 2 | Unclip windshield washer nozzles (2) from air inlet grille (3) | ||
| 3 | Remove windshield washer nozzles (2) | ||
| 4 | Unclip windshield washer nozzle (4) (arrows) | ||
| 5 | Detach washer fluid hoses (1) from windshield washer nozzles (2) and windshield washer nozzle (4) | ||
| 6 | Install in the reverse order | ||
| 7 | Fill up washer fluid reservoir | ||
| Windshield washer system - inspect fluid level, adjust to correct level | AP82.35-P-8210GZ |
