Remove/install telescoping nozzle for headlamp cleaning system - AR82.15-P-6100GZ

MODEL 164 with CODE (600) Headlamp cleaning system

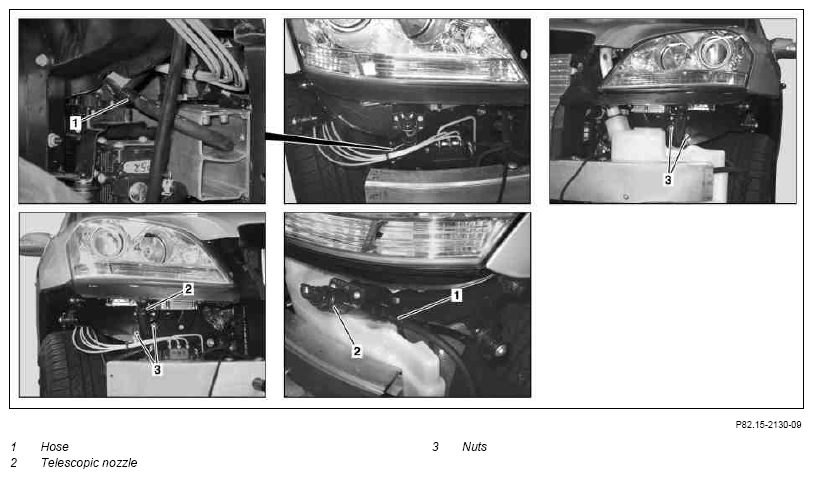

Fig 1: Identifying Telescoping Nozzle Remove/Install Components For Headlamp Cleaning System

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove front bumper		AR88.20-P-2000GZ
2	Detach hose (1) from telescopic nozzle (2)
3	Loosen nuts (3)
4	Remove telescopic nozzle (2)
5	Install in the reverse order
6	Check the fluid level in the windshield washer system	Correct if necessary
	Check windshield washer system fluid level and correct if necessary		AP82.35-P-8210GZ
