Remove/install front bumper - AR88.20-P-2000GZ
MODEL 164
Shown on model 164.1
Shown on model 164.1
Shown on model 164.8
Shown on model 164.1 with code 220 Parktronic system (PTS)
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between lifting platform columns and position the four mounting plates at lifting platform mounting points specified by manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift/jack up vehicle | AR00.60-P-1000GZ | |

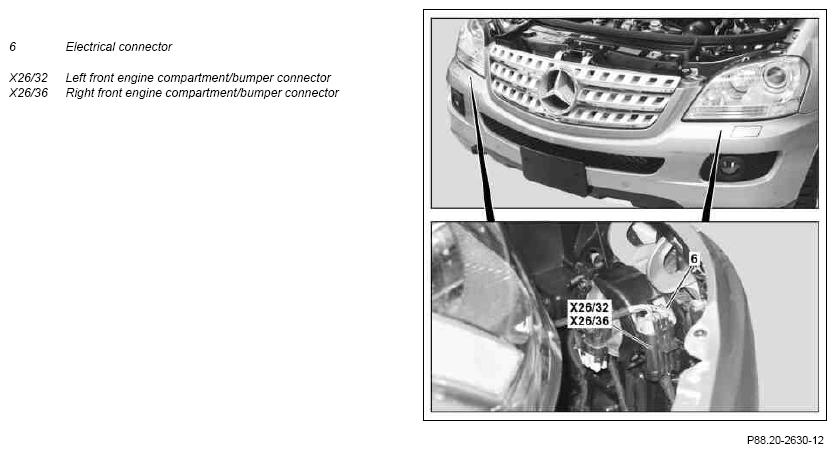

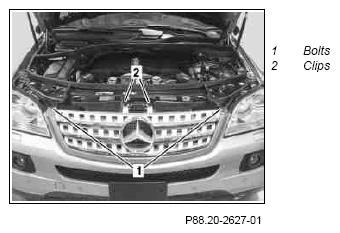

| 2 | Remove bolt (1) | ||
| 3 | Unclip clips (2) | ||
| 4 | Remove front section of fender liner in right and left front fender | AR88.10-P-1310GZ | |

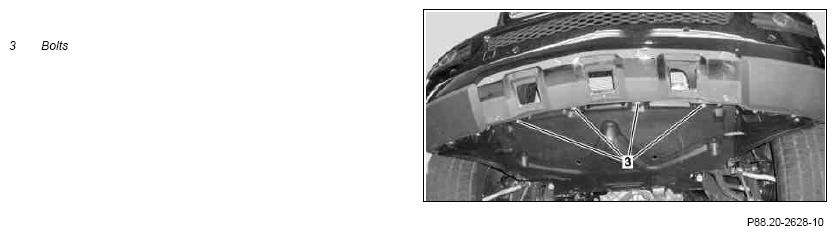

| 5 | Remove bolt (3) | ||
| 6 | Remove expansion rivet on underride guard | ||

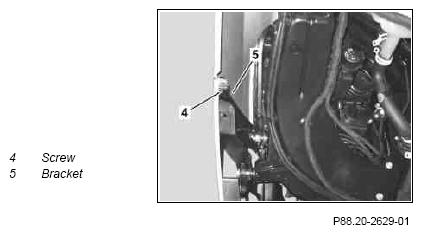

| 7 | Remove bolt (4), pivot bracket (5) to vehicle and remove toward rear. | ||
| 8 | Disconnect electrical connector (6) from left engine compartment/bumper connector (X26/32) | ||
| 9 | Disconnect electrical connector (6) from right front engine compartment/bumper connector (X26/36) | ||
| 10 | Remove bumper toward front. | ||
| Gap dimension | *BE60.00-P-1004-01P | ||
| Gap dimension | *BE60.00-P-1005-01P | ||
| Figure | |||
| 11 | Check and correct the adjustment of the headlamps | ||
| AP82.10-P-8260GZ | |||
| 12 | Install in the reverse order |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 164.1 | Model 164.8 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1004-01P | Gap dimension | Rear door to C-pillar | Dim. "L" | mm | 4.5 (±0.5) | 4, 5 (±1, 0) |
| Engine hood to headlamp | Dim. "M" | mm | 4 (±1) | 4, 0 (±1, 0) | ||
| Bumper to headlamp | Dim. "N" | mm | 4 (±1) | 4, 0 (±1, 0) | ||
| Front grille to bumper | Dim. "O" | mm | 6 (±1.5) | - | ||
| Taillamp to rear-end door | Dim. "P" | mm | 5 (±0.5) | 5.0 (±1.0) | ||
| See picture | ||||||
| AR60.00-P-0700-01GZ | AR60.00-P-0700-01GZ | |||||
| BE60.00-P-1005-01P | Gap dimension | Front bumper to fender | Dim. "Q" | mm | - | 0, 0 (±1, 0) |
| Taillamp to rear-end door | Dim. "R" | mm | 5 (±0.5) | 5.0 (±1.0) | ||
| Bumper to taillamp | Dim. "S" | mm | 3 (±0.5) | 3, 0 (±1, 0) | ||
| Top of taillamp to D-pillar | Dim. "T" | mm | 3 (±0.5) | 3, 0 (±1, 0) | ||
| Bottom of taillamp to D-pillar | Dim. "T1" | mm | 5 (±0.5) | 3, 0 (±1, 0) | ||
| See picture | ||||||
| AR60.00-P-0700-01GZ | AR60.00-P-0700-01GZ | |||||
