Remove/install fog lamp bulb - AR82.10-P-1825GZ

MODEL 164

Shown on model 164.1

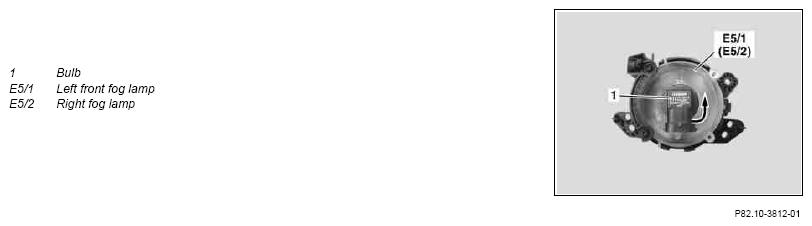

Fig 1: Identifying Fog Lamp Bulb Remove/Install Component - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left fog lamp (E5/1) or right fog lamp (E5/2)	MODEL 164.8	AR82.10-P-5103GY
		MODEL 164.1	AR82.10-P-5103GZ
2	Remove bulb (1)	Do not directly touch the bulb (1) with your fingers. Use a soft, lint-free cloth. Otherwise fingerprints can be burned in there and leave cloudiness on the bulb (1) To unlock, rotate counterclockwise. Bulb (1) and electrical connector form a unit.
3	Install in the reverse order
