Remove/install fog lamp - AR82.10-P-5103GY

MODEL 164.8

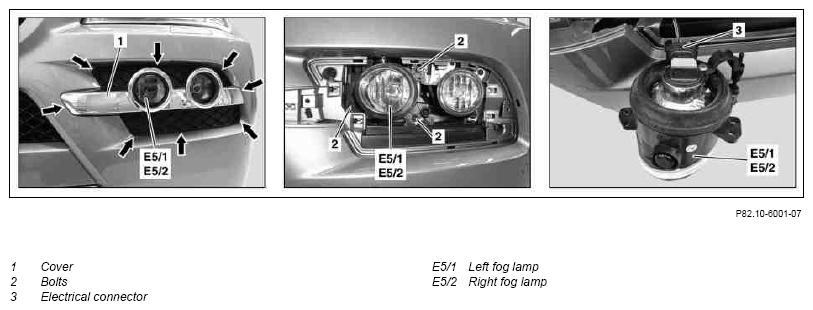

Fig 1: Identifying Fog Lamp Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Shown up to model year 2009

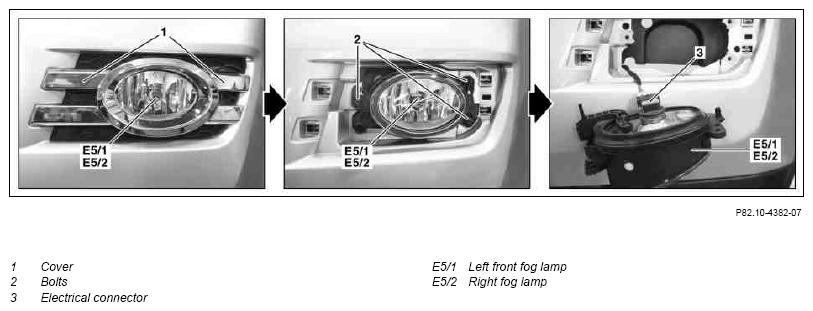

Fig 2: Identifying Fog Lamp Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Shown as of model year 2010

	Remove/install
1	Remove cover (1)	Long wedge	Figure
2	Remove bolt (2)
3	Remove left front fog lamp (E5/1) or right front fog lamp (E5/2) and disconnect electrical connector (3)
4	Install in the reverse order
5	Check front fog lamp settings, adjust if necessary
	Adjust or check front fog lights		AP82.10-P-8260-04GZ

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
