Remove/install additional turn signal lamp - AR82.25-P-4726GZA

MODEL 164.### #A as of 441045

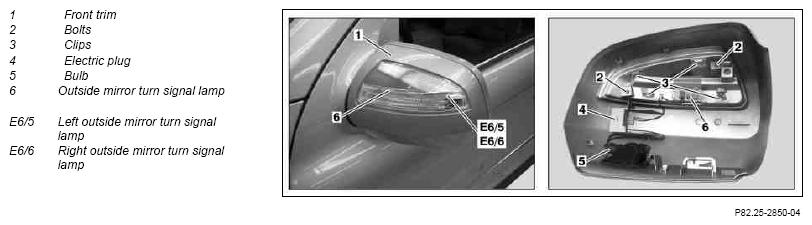

Fig 1: Identifying Additional Turn Signal Lamp Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove covering on outside rearview mirror		AR88.70-P-9040GZA
2	Remove bolts (2)
3	Unclip clips (3)
4	Unclip electrical plug (4)
5	Unplug bulb (5)
6	Remove left outside mirror turn signal lamp (E6/5) or right outside mirror turn signal lamp (E6/6) out of front paneling towards the front (1)	Ensure that electrical lines are routed properly.
7	Install in the reverse order
