Wiper system automatic speed reduction, function - GF82.30-P-4006GZ
MODEL 164.1 except CODE (494) USA version up to Model Year 2008
Function requirements:
- Circ. 15R On
Function

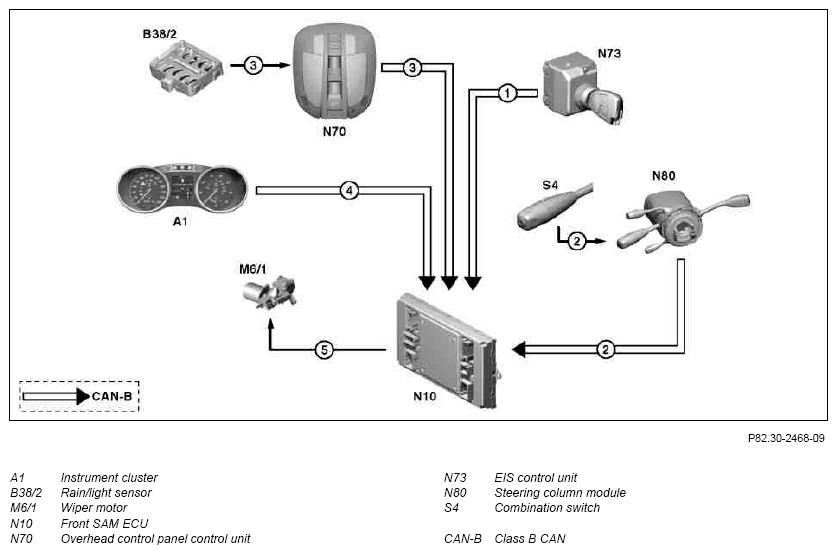

If the vehicle speed drops below approx. 5 km/h, the front SAM control unit (N10) switches the wiper motor (M6/1) down one level. If intermittent wiping is active, the longest wiper interval is selected. If the rain/light sensor (B38/2) is present but defective, a standard reduction takes place (reduction by one stage).
If the vehicle speed increases to faster than approx. 8 km/h, the front SAM control unit automatically switches the wiper motor back to the wiper stage selected at the combination switch (S4).
If a wipe request is issued (intermittent, level 1 or 2 wiping), the speed reduction is suspended until the speed drops below the speed threshold again. The speed reduction is not suspended by wiping or touch wiping.
| Combination switch, component description | GF82.30-P-5000GZ | ||
| Steering column module, component description | GF54.21-P-6050GZ | ||
| Rain/light sensor, component description | GF54.21-P-6000GZ | ||
| Overhead control panel control unit, component description | GF82.20-P-5216GZ | ||
| Electronic ignition switch (EIS) control unit, component description | GF80.57-P-6000GZ | ||
| Front SAM control unit, component description | GF54.21-P-7010GZ | ||
| Wiper motor, component description | GF82.30-P-5010GZ |
