Adjust parking brake - AR42.20-P-0540GI
MODEL 461 with disk brakes on rear axle
MODEL 463 (except 463.270 /271) with disk brakes on rear axle
| Adjust | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle | AR00.60-P-1000G | |

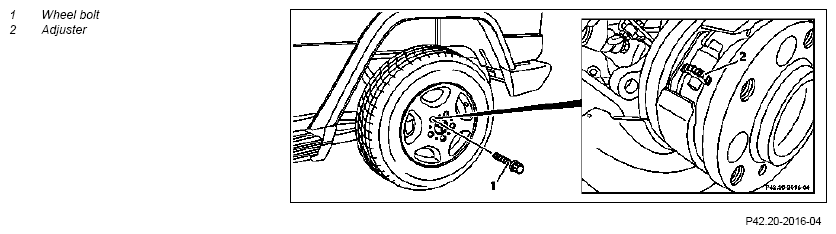

| 2 | Screw out one lug bolt (1) | *BA40.10-P-1001-01D | |
| *BA40.10-P-1002-01D | |||
| 3 | Fully release parking brake and turn the wheel so that the adjuster (2) can be actuated via the opening of the wheel bolt thread | ||
| 4 | Continue turning the adjuster (2) until the brake linings are resting against the drum surface | ||
| 5 | Turn brake adjuster (2) back three detents. | ||
| 6 | Adjust parking brake on roller dynamometer | Model 461.302 /304 /332 /334 /342 /344, Model 463.202 /222 /236 /237 /243 /244 /245 /246 /247 /248 /249 /250 /254 /303 /306 /309 /322 /323 /332 /333 /336 /340 /341 /346 | AR42.20-P-0550GG |
| Model 461.326 /335 /336 /365 /366, Model 463.206 /209 /232 /233 /240 /241 /308 /330 /331 | AR42.20-P-0550GX |
WHEELS
| Number | Designation | Model 460, 461, 463 | |
|---|---|---|---|
| BA40.10-P-1001-01D | Wheel bolt to steel rim | Nm | 180 |
| BA40.10-P-1002-01D | Wheel bolt to light alloy rim | Nm | 130 |
