Retrofit reversing camera - AN54.65-P-0030EL

MODEL 218.3## (except 218.374) 1# up to model year 2013 with CODE 512 (COMAND APS with DVD changer) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 804 (Model year 2014)

MODEL 218.3## (except 218.374) 1# up to model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 804 (Model year 2014)

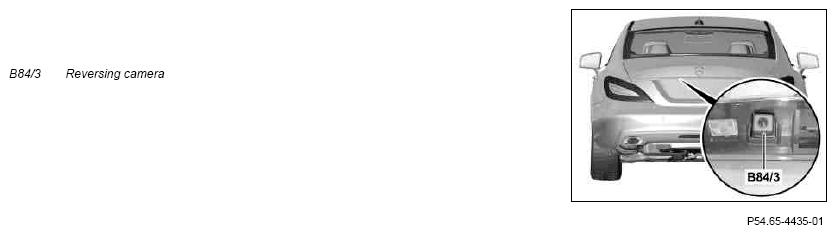

Fig 1: Identifying Reversing Camera

Courtesy of MERCEDES-BENZ USA

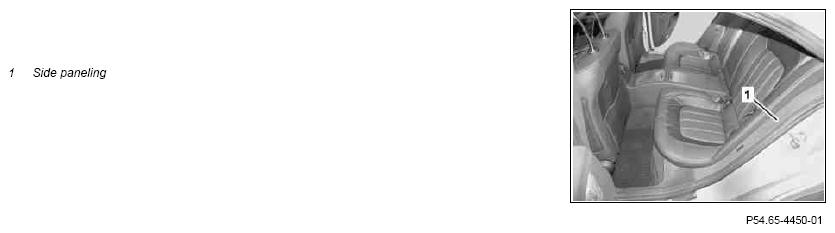

Fig 2: Identifying Side Paneling

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove center console
			AR68.20-P-2000EL
2	Remove COMAND controller unit
			AR82.60-P-7502EW
3	Remove left rear door sill molding
4.1	Remove left side bolster of rear backrest	Vehicles with CODE 287 (Through-loading feature)
		MODEL 218.3## (except 218.374) 1# up to model year 2013 with CODE 512 (COMAND APS with DVD changer) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 804 (Model year 2014) MODEL 218.3## (except 218.374) 1# up to model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 804 (Model year 2014)	AR91.12-P-1710CW
4.2	Remove backrest in rear	Vehicles without CODE 287 (Through-loading feature)
		MODEL 218.3## (except 218.374) 1# up to model year 2013 with CODE 512 (COMAND APS with DVD changer) without CODE 287 (Folding rear seat backrests) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 804 (Model year 2014) MODEL 218.3## (except 218.374) 1# up to model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 287 (Folding rear seat backrests) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 804 (Model year 2014)	AR91.12-P-1620CW
5	Remove left side paneling (1) in rear
6	Remove right and left side paneling in luggage compartment
	Remove paneling in trunk		AR68.30-P-4600EL
7	Remove handle strip from trunk lid
			AR88.50-P-5062EL
		Remove trunk lid cover completely. Replace the old trunk lid handle strip with the trunk lid handle strip contained in the scope of supply.
8	Remove left trunk lid hinge cover
	Install
9	Prepare wiring harness for retrofitting reversing camera (B84/3)	Prepare wiring harness for retrofitting of reversing camera	AN54.65-P-0030-07EL
10	Retrofit power supply module		AN54.65-P-0030-06EL
11	Retrofit wiring harness for reversing camera (B84/3)	Retrofit the backup camera wiring harness	AN54.65-P-0030-03EL
		Wiring harness repair kit	Fig 3
12	Install remaining parts
	Update Vehicle Documentation (VeDoc)
13	Enter special equipment in online vehicle data card	Enter CODE 218 (Reversing camera).
14	Attach note "Reversing camera retrofitted as per AN54.65-P-0030EL " under field organization texts for design group 54
15	Connect diagnostic system and select vehicle using vehicle identification number (VIN)
			AD00.00-P-2000-04A
16	Carry out variant coding using software calibration number (SCN)	"Central gateway (CGW)" "Front SAM control unit with fuse and relay module" "COMAND controller unit"
17	Disconnect diagnostic system
			AD00.00-P-2000-04A
	Check
18	Perform function test

Fig 3: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Courtesy of MERCEDES-BENZ USA
