ASC control mode, function - GF42.45-P-3500TX

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 211, 219.3 up to 31.5.06 except CODE (494) USA version except CODE (498) Japan version

MODEL 211, 219.3 up to 30.6.06 with CODE (494) USA version with CODE (498) Japan version

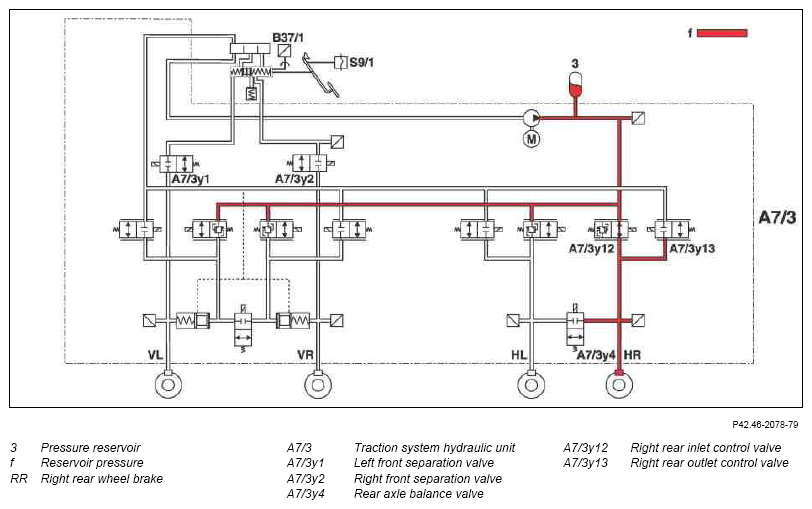

Fig 1: ASC Control Mode Function Diagram - Pressure Buildup
G07191448Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Acceleration slip regulation (ASR) control mode

ASR control mode - pressure buildup

The control process shown in the example and the valve positions refer to the right rear wheel brake (RR).

The control process shown in the example and the valve positions refer to the right rear wheel brake (RR).

If one of the drive wheels tends to spin when starting off or accelerating, on an oversteering vehicle first the drive torque is reduced by the engine control unit in order to increase the lateral stability of the driven rear wheels. If the instability which is starting cannot be prevented as a result, then the ESP control unit (N47-5) introduces the ASR closed-loop operation "Pressure buildup" via the SBC control unit (A7/3n1).

The left front separation valve and right front separation valve y1 and y2 and the rear axle balance valve y4 are closed at the start of the ASR control. The right rear outlet control valve remains closed. The right rear inlet control valve is opened.

The pressure from the pressure reservoir (3) can now be built up at the rear right brake caliper.

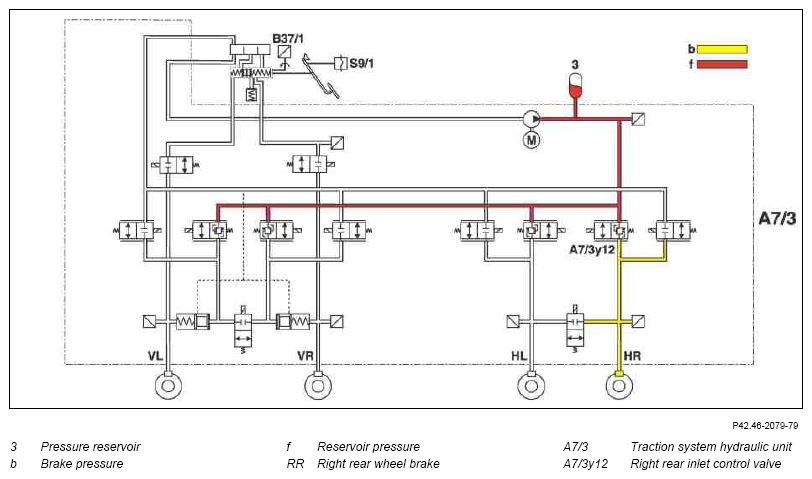

Fig 2: ASC Control Mode Function Diagram - Pressure Holding
G07191449Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

ASR-closed-loop operation, pressure holding

The control process shown in the example and the valve positions refer to the right rear wheel brake.

If to prevent drive slip a more powerful intervention into the braking system is no longer required, then the ASR-closed-loop operation "Pressure holding" starts.

The right rear inlet control valve is closed. As a result the pressure from the pressure reservoir (3) cannot be increased in the brake caliper of the right rear wheel brake.

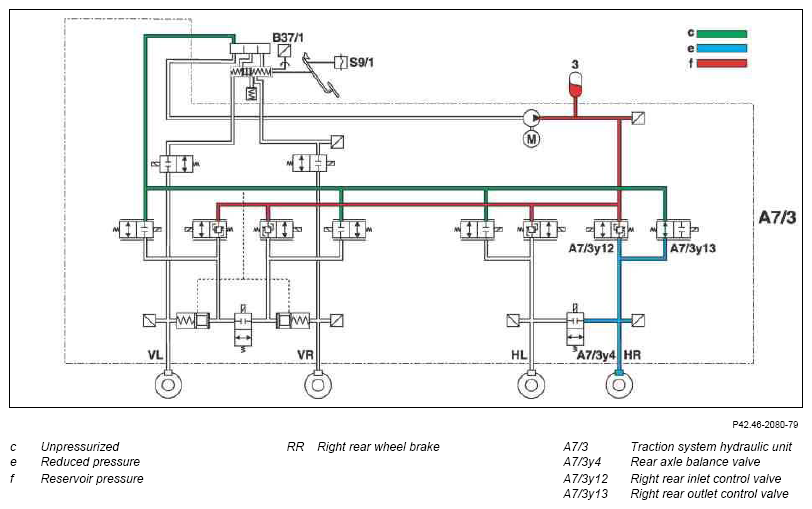

Fig 3: ASC Control Mode Function Diagram - Pressure Reduction
G07191450Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

ASR control mode - pressure reduction

The control process shown in the example and the valve positions refer to the right rear wheel brake.

If the brake pressure required to prevent brake slip is too high, then the acceleration slip regulation closed-loop operation "depressurization" starts.

The pressure reduction phase is introduced by opening the right rear outlet control valve. The right rear inlet control valve and rear axle balance valve remains closed.

The returning brake fluid flows via the return pipe to the brake fluid reservoir.

Electronic stability program (ESP) driver information Model 219 GF42.45-P-0001-04TX
Model 211 GF42.45-P-0001-04T
Description of components in ESP control unit Model 219 GF42.45-P-5118TX
ESP control unit, location/task/function Model 211 GF42.45-P-4500SL
SBC hydraulic unit, component description Model 219 GF42.50-P-5119TX
Traction systems hydraulic unit, location/task/design/function Model 211 GF42.50-P-4000S
SBC control unit, component description Model 219 GF42.46-P-5132TX
SBC control unit, location/task/function Model 211 GF42.46-P-4500SL
Wheel RPM sensor, component description Model 219 GF42.45-P-5134TX
Location/task/design/function of wheel speed sensor Model 211 GF42.45-P-4550S
