Install new radial sealing ring on outside right of front axle gear - AR33.30-P-0540VM
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.08/09/28/29
| Remove/install | ||

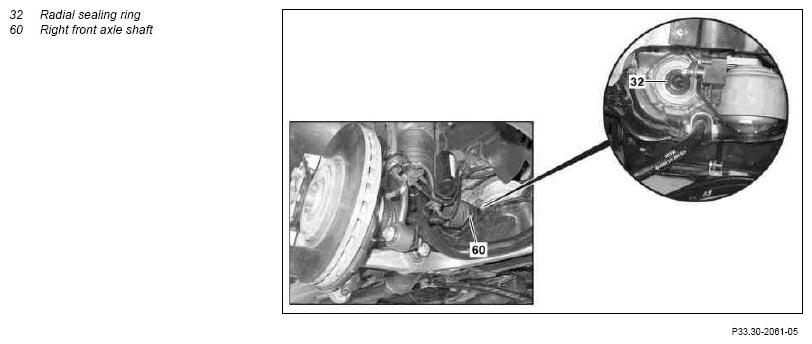

| 1 | Remove right front axle shaft (60) | AR33.30-P-0620I |
| 2 | Replace radial seal (32) | AR33.30-P-0540-01VM |
| 3 | Install in the reverse order | |
| 4 | Check front axle gear oil level and correct if necessary | AR33.30-P-0525-02P |
