Check front axle gear oil level and top up if necessary - AR33.30-P-0525-02P
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
FRONT AXLE TRANSMISSION
| Number | Designation | Model 203.08/09/28/29 | Model 211.08/09/28/29 | Model 220.08/18 | |
|---|---|---|---|---|---|
| BA33.30-P-1006-03D | Oil filler opening screw plug | Nm | 30 | 30 | 30 |
FRONT AXLE GEAR
| Number | Designation | Model 203.08/09/28/29 | Model 211.08/09/28/29 | ||
|---|---|---|---|---|---|
| BF33.30-P-1001-03C | Hypoid gear oil | Filling capacity | Liters | 0,46 | 0.6 |
| Specifications for service products | Sheet | BB00.40-P-0235-07A | BB00.40-P-0235-07A | ||
FRONT AXLE GEAR
| Number | Designation | Model 220.08/18 | ||
|---|---|---|---|---|
| BF33.30-P-1001-03C | Hypoid gear oil | Filling capacity | Liters | 0.6 |
| Specifications for service products | Sheet | BB00.40-P-0235-07A | ||
Conduct oil level check only in installation position and at room temperature. Not when front axle gear is at normal operating temperature.
- Remove screw plug of oil filler opening (7).
The oil level is correct if the hypoid gear oil reaches up to the lower edge of the oil filler opening.
- If necessary refill hypoid gear oil through the oil filler opening, until oil flows out of the oil filler opening.
- Let oil escape for roughly 1 to 2 min and then turn in the screw plug of the oil filler opening (7) and tighten
.

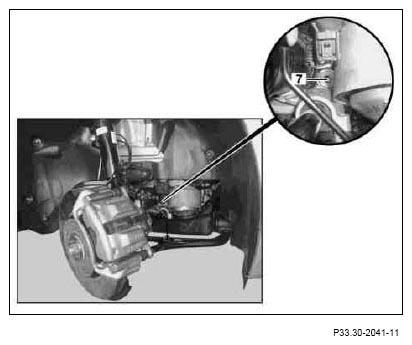

Shown on model 203
