Install and weld in outer part of rear center section - AR64.20-P-1000-10TA
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS
| Number | Designation | Model 211.2 | |||
|---|---|---|---|---|---|
| BE60.00-P-1003-01F | Gap dimension | Trunk lid to rear fender, top | Dimension "J" | mm | - |
| Trunk lid to rear lamp unit | Dimension "K" | mm | - | ||
| Trunk lid to bumper | Dimension "L" | mm | - | ||
| Rear fender to rear lamp unit | Dimension "M" | mm | 2.5 (±1) | ||
| Trunk lid license plate panel to rear lamp unit | Dimension "N" | mm | - | ||
| See picture | AR60.00-P-0700-01T A | ||||
| BE60.00-P-1005-01F | Gap dimension | Liftgate spoiler/roof | Dimension "P" | mm | 7 (-0.5/+1) |
| Rear-end door to rear fender | Dimension "Q" | mm | 4.5 (±1) | ||
| Taillamp in rear-end door to taillamp | Dimension "R" | mm | 5 (±1) | ||
| Rear-end door to bumper | Dimension "S" | mm | 6 (±1.5) | ||
| Rear window and D-pillar | Dimension "T" | mm | 4.5 (±1) | ||
| Front door to roof | Dimension "U" | mm | 4.5 (-0.5/+1) | ||
| See picture | AR60.00-P-0700-01TA | ||||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
| BR00.45-Z-1003-01A | Sealant, white, 310 ml, DB supply specification 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1003-05A | Cavity preservation, solvent-free (1 l container) | A 000 986 72 70 05 |
- Install bottom rear center section, taillamps, spacers and striker eye.
- Check gap dimensions and adjust: Rear fender to taillamp Rear-end door to rear fender Taillamp in rear-end door to taillamp Rear window to D-pillar
Use feeler gage.
- Fit outer part of rear center section (hole and positive) and fix in place with clamping pliers.

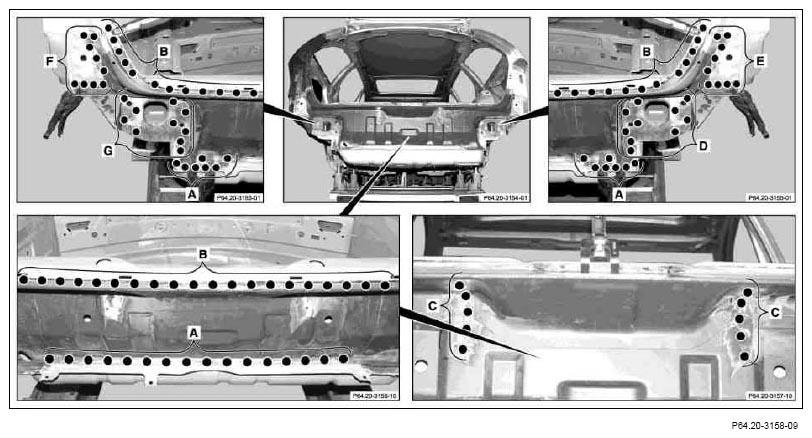

- Rear center section
(areas A, B, C, D, E, F, and G).
