Remove/install rear brake control cable - AR42.20-P-0525SX
MODEL 216
MODEL 221
MODIFICATION NOTES
| 1.9.10 | "Perform brake test on test bench" reference changed | Test sequence augmented/revised |
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

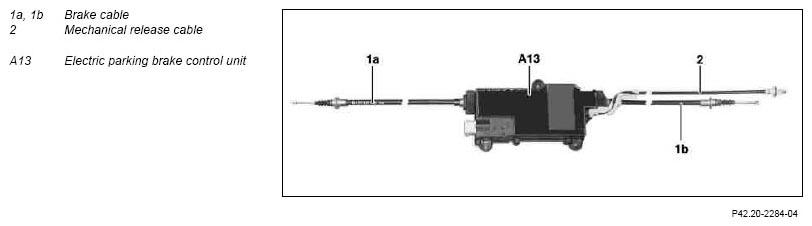

| The electric parking brake controller unit (A13) may only be removed and installed together with the brake cables (1a, 1b) and the manual release cable (2). The brake cables (1a, 1b) may not be detached from the electric parking brake controller unit (A13) which has been installed . Under no circumstances may the manual release cable (2) be detached from the electric parking brake controller unit (A13) otherwise it will be damaged |
|||
| 1 | Read out the number of actuations of the electric parking brake using STAR DIAGNOSIS | *BE42.20-P-1001-01G | |
| Replace electric parking brake controller unit (A13). | AR42.20-P-0590SX | ||
| 2 | Use STAR DIAGNOSIS to bring the brake cables (1a, 1b) into the assembly position | ||
| 3 | Remove rear brake disks | AR42.10-P-0220SX | |
| 4 | Remove electric parking brake controller unit (A13) | AR42.20-P-0590SX | |
| 5 | Detach brake cables (1a, 1b) from the electric parking brake controller unit (A13) | AR42.20-P-0525-04SX | |
| 6 | Install in the reverse order | ||
| 7 | Adjust parking brake | AR42.20-P-0540SX | |
| Checking | |||
| Risk of death caused by limbs being caught or crushed by rotating parts when performing tests on the brake test stand | Never leave the vehicle unattended on the rollers except in an emergency. Ensure that no one is under the vehicle or near rotating parts during testing. In case of emergency, use the EMERGENCY STOP switch to shut down test stand. | AS42.00-Z-0001-01A | |
| 8 | Carry out brake test on the test stand | AP42.00-P-4290BA |
CHECK VALUES FOR ELECTRIC PARKING BRAKE
| Number | Designation | Model 216 | Model 221 without code Z07 | Model 221 with code Z07 | |
|---|---|---|---|---|---|
| BE42.20-P-1001-01G | Max. permissible number of actuations of electric parking brake after which a new electric parking brake controller unit must be installed. | Actuations | 50.000 | 50.000 | 35.000 |
