Retrofit illuminated door sill molding - AZ82.20-P-0001SC

MODEL 216

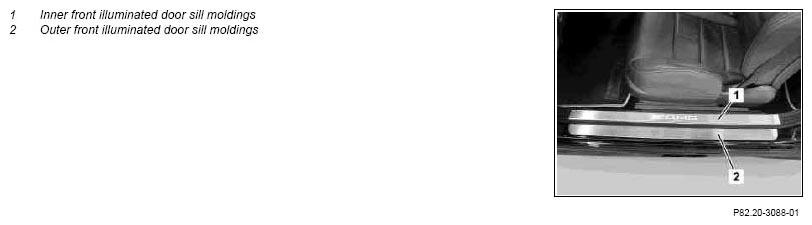

Fig 1: Identifying Inner And Outer Front Illuminated Door Sill Moldings

Courtesy of MERCEDES-BENZ USA

	Removal
	Risk of death caused by contact with parts conducting high voltages.	Do not come into contact with parts that are under high voltage. Persons who wear electronic implants (e.g. heart pacemakers) must not perform any work on such components.	AS00.00-Z-0020-01A
1	Remove paneling in luggage compartment
		Model 216.3	AR68.30-P-4600SX
2	Remove luggage compartment SAM	Only loosen luggage compartment SAM and pull toward the rear, do not disconnect.
		Model 216.3	AR54.21-P-1258SX
3	Remove on-board electrical system battery	Only loosen on-board electrical system battery and swivel to one side, do not disconnect.
		Model 216.3	AR54.10-P-0009SX
4	Remove rear seat cushion
		Model 216.3	AR91.12-P-1020SC
5	Remove rear seat backrest
		Model 216.3	AR91.12-P-1620SC
6	Fold back insulating mat below rear seat
7	Remove standard inner door sill molding on left and right	The inner door sill moldings are discontinued parts. They are replaced with the illuminated door sill moldings.	AZ68.30-P-0005SC
8	Remove rear side paneling
		Model 216.3	AR68.30-P-4780SC
	Install
9	Connect illuminated door sill moldings wiring harness		AZ82.20-P-0001-02SC
10	Connect inner front illuminated door sill moldings (1) and perform function check	Only connect inner illuminated door sill moldings and place into the vehicle for function check purposes, do not mount. The illuminated door sill molding is activated by opening a door. The illuminated door sill moldings switch off automatically after approx. 5 minutes.
11	Install remaining parts onto vehicle	Operation steps 8 to 1. Route and fasten the connectors of the inner illuminated door sill moldings so that they are covered by the rear side paneling.
12	Retrofit outer door sill moldings		AZ68.30-P-0005SC
		Cleaner	*BR00.45-Z-1025-04A
13	Carry out function check

AUXILIARY REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

PARTS ORDERING NOTES

Part no.	Designation	Quantity
B6 602 10 40	AMG door sill molding kit (illuminated in blue)	1
