Retrofit unilluminated door sill molding - AZ68.30-P-0005SC

MODEL 216

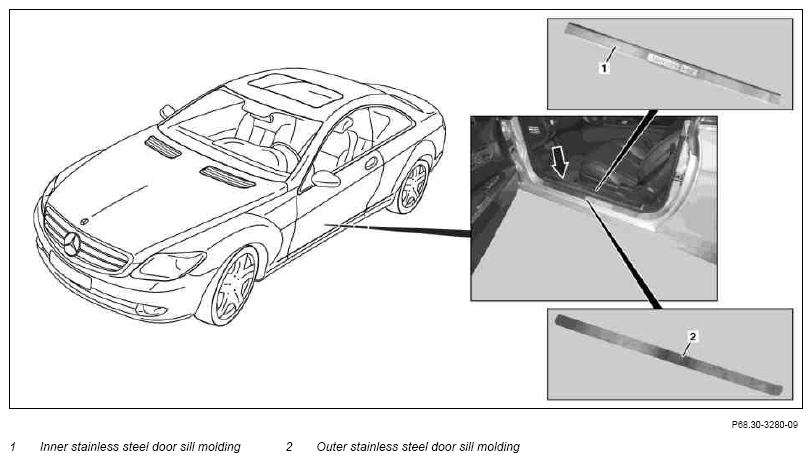

Fig 1: Identifying Inner Stainless Steel Door Sill Molding And Outer Stainless Steel Door Sill Molding

Courtesy of MERCEDES-BENZ USA

	Removal
1	Remove standard inner door sill molding on left and right.	Guide assembly wedge at front below inner door sill molding (arrow) and pry out of mount to prevent damaging inner door sill molding. Standard door sill moldings are replaced with new stainless steel door sill moldings.
1	Remove standard inner door sill molding on left and right.	Mounting wedge	Fig 2
2	Loosen edge guard in area of standard outer door sill molding on left and right.	Do not damage painted surfaces and edge guard.
	Clean
3	Clean surface on standard outer door sill molding on left and right.	The surface of the standard outer door sill molding must dry, free of dust and grease.
3		Glass cleaning agent.	*BR00.45-Z-1025-04A
	Install
4	Retrofit outer stainless steel door sill molding (2) on left and right.	If present, remove protective foil installed at factory from outer stainless steel door sill molding (2). Remove protective foil on adhesive strips on rear of outer stainless steel door sill molding (2). Align outer stainless steel door sill molding (2) along standard outer stainless steel door sill molding and glue on.
5	Fasten edge guard in area of outer stainless steel door sill molding (2) on left and right.
6	Retrofit inner stainless steel door sill molding (1) on left and right.	Remove protective foil installed at factory from inner stainless steel door sill molding (1). Ensure that inner stainless steel door sill molding (1) is in the same installation position on left and right. Insert inner stainless steel door sill molding (1) into mounting clamps, align at entrance and press on firmly.

Fig 2: Identifying Assembly Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

PARTS ORDERING NOTES

Part no.	Designation	Quantity
B6 689 01 52	Mercedes-Benz stainless steel door sill moldings, double, not illuminated	1
