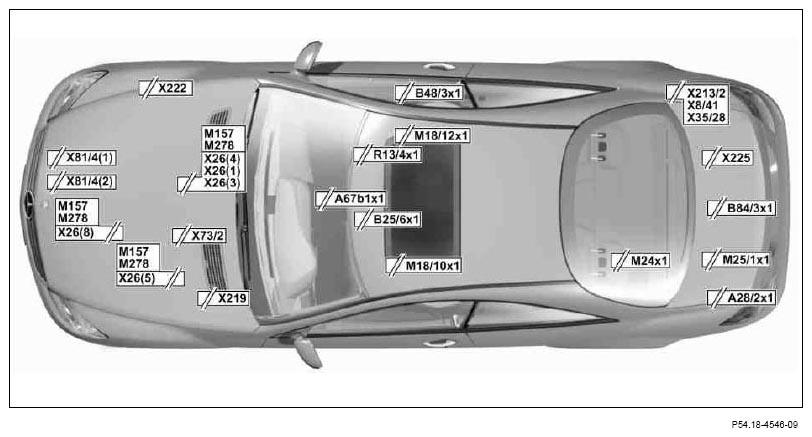

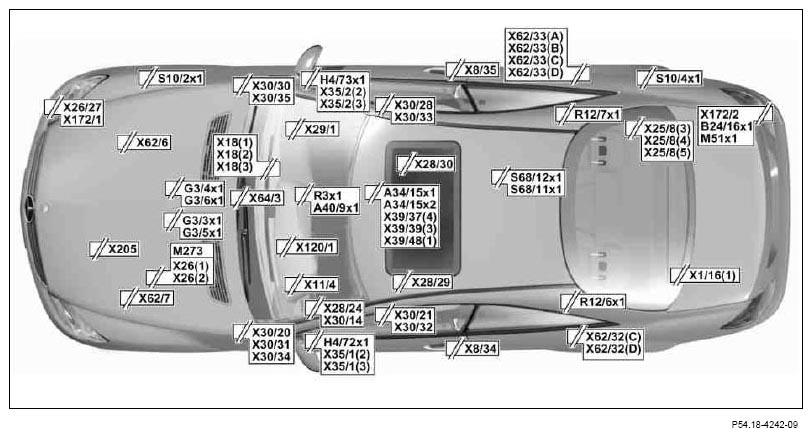

Location and assignment of line and plug connectors - GF00.19-P-1000CAA
MODEL 216
| A28/2x1 | Portable CTEL antenna amplifier connector | GF00.19-P-1000-06CAA | |
| A34/15x1 | Connector 1, UPCI [UHI] portable CTEL holder (Universal Handy Interface) | GF00.19-P-1000-03CAA | |
| A34/15x2 | Connector 2, UPCI [UHI] portable CTEL holder (Universal Handy Interface) | GF00.19-P-1000-03CAA | |
| A40/9x1 | Front central operating unit connector | GF00.19-P-1000-03CAA | |
| A67b1x1 | Hands-free system microphone group connector | GF00.19-P-1000-04CAA | |
| B24/16x1 | Trunk lid position sensor connector | GF00.19-P-1000-07CAA | |
| B25/6x1 | Sound amplifier microphone connector | GF00.19-P-1000-04CAA | |
| B48/3x1 | Belt tension sensor connector | GF00.19-P-1000-05CAA | |
| B84/3x1 | Backup camera connector | GF00.19-P-1000-06CAA | |
| G3/3x1 | Connector, left O2 sensor, upstream CAT | GF00.19-P-1000-01CAA | |
| G3/4x1 | Connector, right O2 sensor, upstream CAT | GF00.19-P-1000-02CAA | |
| G3/5x1 | Connector, left O2 sensor, downstream CAT | GF00.19-P-1000-01CAA | |
| G3/6x1 | Connector, right O2 sensor, upstream CAT | GF00.19-P-1000-02CAA | |
| H4/72x1 | Left front door Sound woofer and midrange speaker group connector | GF00.19-P-1000-04CAA | |
| H4/73x1 | Right front door Sound woofer and midrange speaker group connector | GF00.19-P-1000-05CAA | |
| M18/10x1 | Left front seat backrest ventilation motor group connector | GF00.19-P-1000-04CAA | |
| M18/12x1 | Right front seat backrest ventilation motor group connector | GF00.19-P-1000-05CAA | |
| M24x1 | Rear window blind motor connector | GF00.19-P-1000-06CAA | |
| M25/1x1 | Lumbar support pump connector | GF00.19-P-1000-06CAA | |
| M51x1 | TLC [HDS] hydraulic pump connector | GF00.19-P-1000-07CAA | |
| R3x1 | Front cigar lighter connector | GF00.19-P-1000-03CAA | |
| R12/6x1 | Left rear ETR squib connector | GF00.19-P-1000-04CAA | |
| R12/7x1 | Right rear ETR squib connector | GF00.19-P-1000-05CAA | |
| R13/4x1 | Right front backrest heater element connector | GF00.19-P-1000-05CAA | |
| S10/2x1 | Right front brake pad contact sensor connector | GF00.19-P-1000-02CAA | |
| S10/4x1 | Right rear brake pad contact sensor connector | GF00.19-P-1000-07CAA | |
| S68/11x1 | Left rear seat belt buckle switch connector | GF00.19-P-1000-05CAA | |
| S68/12x1 | Right rear seat belt buckle switch connector | GF00.19-P-1000-05CAA | |
| X1/16(1) | Roof antenna connector | GF00.19-P-1000-04CAA | |
| X8/34 | Left door handle connector | GF00.19-P-1000-04CAA | |
| X8/35 | Right door handle connector | GF00.19-P-1000-05CAA | |
| X8/41 | Trunk lid position sensor connector | GF00.19-P-1000-07CAA | |
| X11/4 | Data link connector | GF00.19-P-1000-03CAA | |
| X18(1) | Cockpit wiring harness and FFS [RBA] connector | GF00.19-P-1000-03CAA | |
| X18(2) | Cockpit wiring harness and FFS [RBA] connector | GF00.19-P-1000-03CAA | |
| X18(3) | Cockpit wiring harness and FFS [RBA] connector | GF00.19-P-1000-03CAA | |
| X25/8(3) | Overhead control panel and FFS [RBA] connector | GF00.19-P-1000-07CAA | |
| X25/8(4) | Overhead control panel and FFS [RBA] connector | GF00.19-P-1000-07CAA | |
| X25/8 (5) | Overhead control panel and FFS [RBA] connector | GF00.19-P-1000-07CAA | |
| X26(1) | Interior and engine wiring harness connector | M273, M157, M278 | GF00.19-P-1000-01CAA |
| X26(2) | Interior and engine wiring harness connector | M273 | GF00.19-P-1000-01CAA |
| X26(3) | Interior and engine wiring harness connector | M157, M278 | GF00.19-P-1000-01CAA |
| X26(4) | Interior and engine wiring harness connector | M157, M278 | GF00.19-P-1000-01CAA |
| X26 (5) | Interior and engine wiring harness connector | M157, M278 | GF00.19-P-1000-01CAA |
| X26 (8) | Interior and engine wiring harness connector | M157, M278 | GF00.19-P-1000-01CAA |
| X26/27 | PTS, front bumper connector | GF00.19-P-1000-02CAA | |
| X28/24 | Interior/telematics connector | GF00.19-P-1000-04CAA | |
| X28/29 | Driver-side FFS [RBA]/seat airbag separation point | GF00.19-P-1000-04CAA | |
| X28/30 | Passenger-side FFS [RBA]/seat airbag separation point | GF00.19-P-1000-05CAA | |
| X29/1 | Glove compartment lamp connector | GF00.19-P-1000-03CAA | |
| X30/14 | Wake-up signal/diagnosis distributor connector | GF00.19-P-1000-04CAA | |
| X30/20 | Central CAN voltage distributor connector | GF00.19-P-1000-03CAA | |
| X30/21 | Drive train CAN voltage distributor connector | GF00.19-P-1000-04CAA | |
| X30/28 | Vehicle dynamics CAN voltage distributor connector | GF00.19-P-1000-05CAA | |
| X30/30 | Chassis CAN/FFS [RBA] voltage distributor connector | GF00.19-P-1000-03CAA | |
| X30/31 | Chassis CAN/cockpit voltage distributor connector | GF00.19-P-1000-03CAA | |
| X30/32 | Left interior CAN/FFS [RBA] voltage distributor connector | GF00.19-P-1000-04CAA | |
| X30/33 | Right interior CAN/FFS [RBA] voltage distributor connector | GF00.19-P-1000-05CAA | |
| X30/34 | Interior CAN/cockpit voltage distributor connector | GF00.19-P-1000-03CAA | |
| X30/35 | Telematics CAN voltage distributor connector | GF00.19-P-1000-03CAA | |
| X35/1(2) | Left front door and FFS [RBA] connector | GF00.19-P-1000-04CAA | |
| X35/1(3) | Left front door and FFS [RBA] connector | GF00.19-P-1000-04CAA | |
| X35/2 (2) | Right front door and FFS [RBA] connector | GF00.19-P-1000-05CAA | |
| X35/2(3) | Right front door and FFS [RBA] connector | GF00.19-P-1000-05CAA | |
| X35/28 | PTS, rear bumper connector | GF00.19-P-1000-07CAA | |
| X39/37(4) | CTEL separation point | GF00.19-P-1000-05CAA | |
| X39/39(3) | Handy connector | GF00.19-P-1000-04CAA | |
| X39/48 (1) | Breakdown assistance/info button connector | GF00.19-P-1000-04CAA | |
| X62/32 (C) | Left rear axle multiple circuit junction connector | GF00.19-P-1000-04CAA | |
| X62/32 (D) | Left rear axle multiple circuit junction connector | GF00.19-P-1000-04CAA | |
| X62/33 (A) | Right rear axle multiple circuit junction connector | GF00.19-P-1000-05CAA | |
| X62/33 (B) | Right rear axle multiple circuit junction connector | GF00.19-P-1000-05CAA | |
| X62/33 (C) | Right rear axle multiple circuit junction connector | GF00.19-P-1000-05CAA | |
| X62/33 (D) | Right rear axle multiple circuit junction connector | GF00.19-P-1000-05CAA | |
| X62/6 | Right front axle multiple circuit junction connector, major assembly compartment | GF00.19-P-1000-02CAA | |
| X62/7 | Left front axle multiple circuit junction connector, major assembly compartment | GF00.19-P-1000-01CAA | |
| X64/3 | Wiper park heater connector | GF00.19-P-1000-02CAA | |
| X73/2 | Coolant circulation pump connector | GF00.19-P-1000-01CAA | |
| X81/4(1) | Engine wiring harness/throttle valve actuator connector | M156 | GF00.19-P-1000-02CAA |
| X81/4 (2) | Engine wiring harness/throttle valve actuator connector | M156 | GF00.19-P-1000-02CAA |
| X120/1 | Instrument cluster/COMAND display additional fan separation point | GF00.19-P-1000-03CAA | |
| X172/1 | Radar sensors/FFS [RBA] connector, front bumper | GF00.19-P-1000-02CAA | |
| X172/2 | Radar sensors/FFS [RBA] connector, rear bumper | GF00.19-P-1000-07CAA | |
| X205 | Tumble flap/variable intake manifold switchover valves connector | M273 | GF00.19-P-1000-01CAA |
| X213/2 | Rear bumper Distronic (DTR) connecting point | GF00.19-P-1000-07CAA | |
| X219 | Daytime running lights/front fog lamps and engine wiring harness connector | GF00.19-P-1000-01CAA | |
| X222 | AIRMATIC emergency filling connector | GF00.19-P-1000-02CAA | |
| X225 | Fuse for backup battery connecting point | GF00.19-P-1000-07CAA | |
| GF00.19-P-1000-01CAA | Location and assignment of line and plug connectors, engine compartment, left | GF00.19-P-1000-01CAA | |
| GF00.19-P-1000-02CAA | Location and assignment of line and plug connectors, engine compartment, right | GF00.19-P-1000-02CAA | |
| GF00.19-P-1000-03CAA | Location and assignment of line and plug connectors, cockpit | GF00.19-P-1000-03CAA | |
| GF00.19-P-1000-04CAA | Location and assignment of line and plug connectors, interior compartment, left | GF00.19-P-1000-04CAA | |
| GF00.19-P-1000-05CAA | Location and assignment of line and plug connectors, interior compartment, right | GF00.19-P-1000-05CAA | |
| GF00.19-P-1000-06CAA | Location and assignment of line and plug connectors, trunk, left | GF00.19-P-1000-06CAA | |
| GF00.19-P-1000-07CAA | Location and assignment of line and plug connectors, trunk, right | GF00.19-P-1000-07CAA |
