Location and assignment of line and plug connectors, interior compartment, left - GF00.19-P-1000-04CAA

Model 216

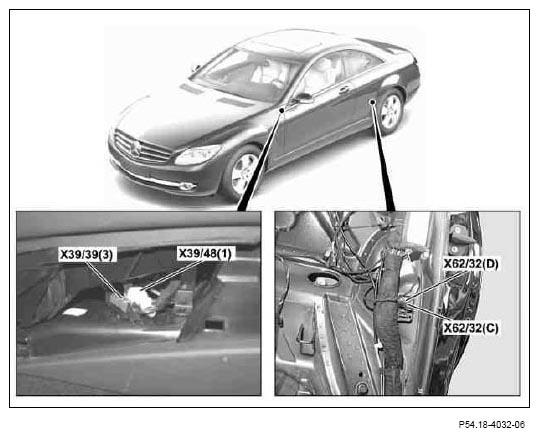

Fig 1: Identifying Interior Compartment Line And Plug Connectors (1 Of 4)

Courtesy of MERCEDES-BENZ USA

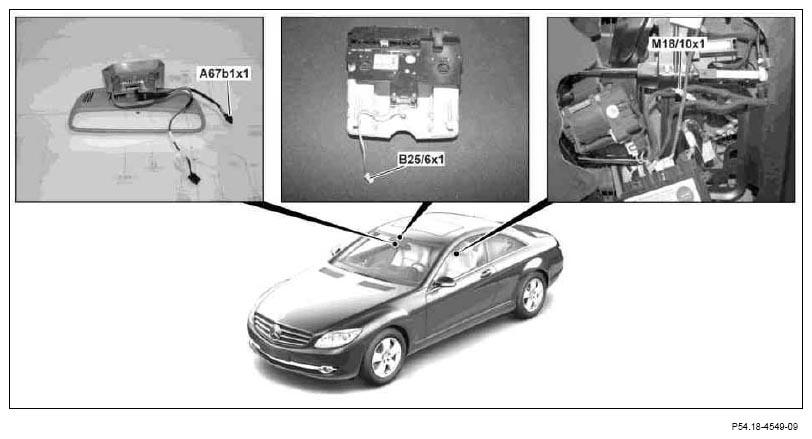

Fig 2: Identifying Interior Compartment Line And Plug Connectors (2 Of 4)

Courtesy of MERCEDES-BENZ USA

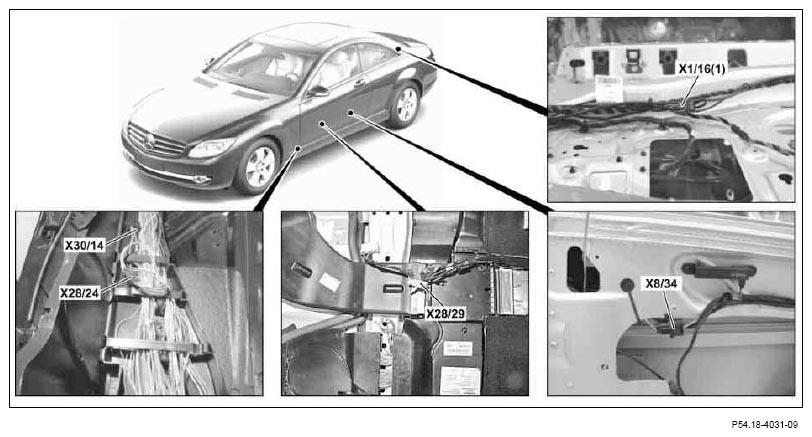

Fig 3: Identifying Interior Compartment Line And Plug Connectors (3 Of 4)

Courtesy of MERCEDES-BENZ USA

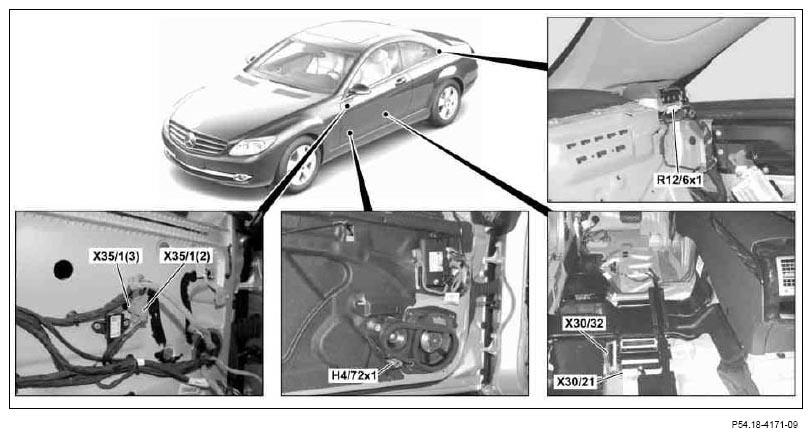

Fig 4: Identifying Interior Compartment Line And Plug Connectors (4 Of 4)

Courtesy of MERCEDES-BENZ USA

Code	Designation		Cable colors		Cable colors	Notes
A67b1x1	Hands-free system microphone group connector		TR	1
			GN	2
				3
			PK	4
				5
			orange	6
B25/6x1	Sound amplifier microphone
		Up to 05/09	WH	1		Sound system
		Up to 05/09	BN	2		Sound system
H4/72x1	Left door Sound woofer and midrange speaker group connector			1	BNBK	Sound system
				2	BK	Sound system
				3	BKRD	Sound system
				4	BK	Sound system
				5	BNGN	Sound system
				6	GN	Sound system
M18/10x1	Left front seat backrest ventilation motor group connector		RDBU	1	RDBU
			BNBU	2	BNBU
R12/6x1	Left rear ETR squib connector			1	BKWH
				2	VTGY
X1/16(1)	Roof antenna connector		RDVT	1	RDVT
			BU	2	BU
			RDBK	3	RDBK
			GYRD	4	GYRD
			GYRD	4	RD	Valid for Japan
X8/34	Left door handle connector		BN	1	BN
			GN	2	GN
			WH	3	WH
				4	BNYE	KEYLESS-GO
				5	BUYE	KEYLESS-GO
X28/24	Interior/telematics connector		BK	1	BK	Valid for USA
				2		Valid for USA
X28/29	Driver-side FFS [RBA]/seat airbag separation point			1
				2
				3
				4
			BK	5	BK
			BN	6	BN
			RDYE	7	RDYE
				8
			BNYE	9	BNYE
				10
			VTGN	11	VTGN
				12
			YE	13	BN (BNBK)
			BU	14	BNBU
X30/14	Wake-up signal/diagnosis distributor connector			1	OG
				2	OG
				3	OG
				4	OG
				5	OG
				6	OG
				7	OG
				8
				9
				10
X30/21	Drive train CAN voltage distributor connector			1.1	BU
				1.2	BUWH
				2.1	BU
				2.2	BUWH
				2.3	BN
				3.1
				3.2
				4.1	BU
				4.2	BUWH
				5.1	BU
				5.2	BUWH
				6.1	BU
				6.2	BUWH
				7.1
				7.2
X30/32	Left interior CAN/FFS [RBA] voltage distributor connector			1.1	BN
				1.2	BNRD
				2.1	BN
				2.2	BNRD
				3.1	BN
				3.2	BNRD
				4.1
				4.2
				5.1	BN
				5.2	BNYE (BNRD)
				6.1
				6.2
				7.1	BN
				7.2	BNRD
				8.1	BN
				8.2	BNGY
				9.1
				9.2
				10.1	BN
				10.2	BNRD
				11.1
				11.2
				12.1
				12.2
				13.1	BN
				13.2	BNBK
X35/1(2)	Left front door and FFS [RBA] connector		BNYE	1	BNYE	KEYLESS-GO
			BUYE	2	BUYE	KEYLESS-GO
X35/1(3)	Left front door and FFS [RBA] connector		RDGN	1	RDGN	KEYLESS-GO
			GNBN	2	GNBN	KEYLESS-GO
X39/39(3)	Handy connector		TR	S	TR
			BK		BK
X39/48(1)	Breakdown assistance/info button connector			1		Teleaid
			WH (BNBK)	2	BNBK	Teleaid
			GY (BNGY)	3	BNGY	Teleaid
			YE (GYBU)	4	GYBU	Teleaid
				5		Teleaid
				6		Teleaid
			OG (YEBU)	7	YEBU	Teleaid
			GN (YERD)	8	YERD	Teleaid
			BU (BNGY)	9	BN	Teleaid
				10		Teleaid
X62/32 (C)	Left rear axle multiple circuit junction connector			1	WHBU
				2	YEGY
				3	BKYE
X62/32 (D)	Left rear axle multiple circuit junction connector			1	GNYE
				2	GNPK
				3
				4
