Home >> Mercedes Benz >> 2012 >> C250 Base >> Repair and Diagnosis >> General Information >> OEM General Information >> Overall Vehicle -- 204 C Class - 7 Of 9 >> Basic Knowledge >> Location and assignment of Z connector sleeves (wiring and plug connectors in wiring harness) - GF00.19-P-3000FAA

Location and assignment of Z connector sleeves (wiring and plug connectors in wiring harness) - GF00.19-P-3000FAA

MODEL 204

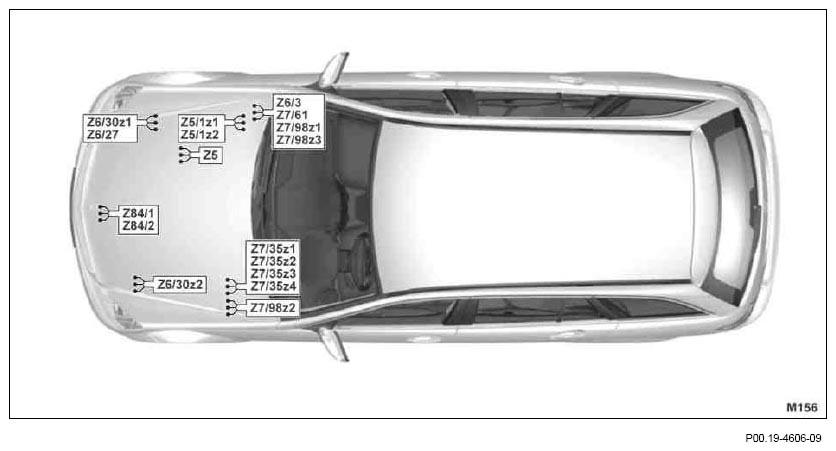

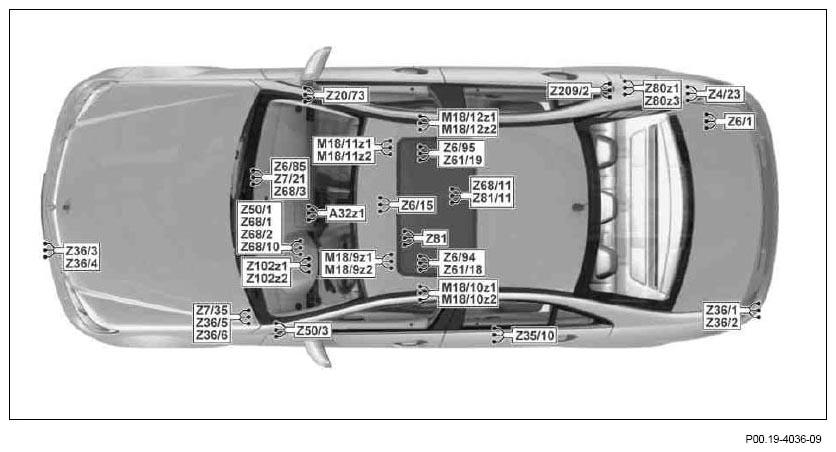

Fig 1: Z Connector Sleeves Location (1 Of 10)
G07204093Courtesy of MERCEDES-BENZ USA
Fig 2: Z Connector Sleeves Location (2 Of 10)
G07204094Courtesy of MERCEDES-BENZ USA

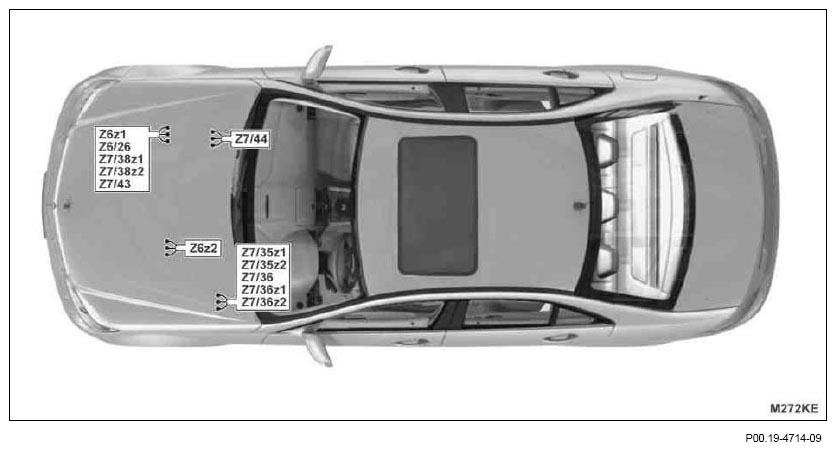

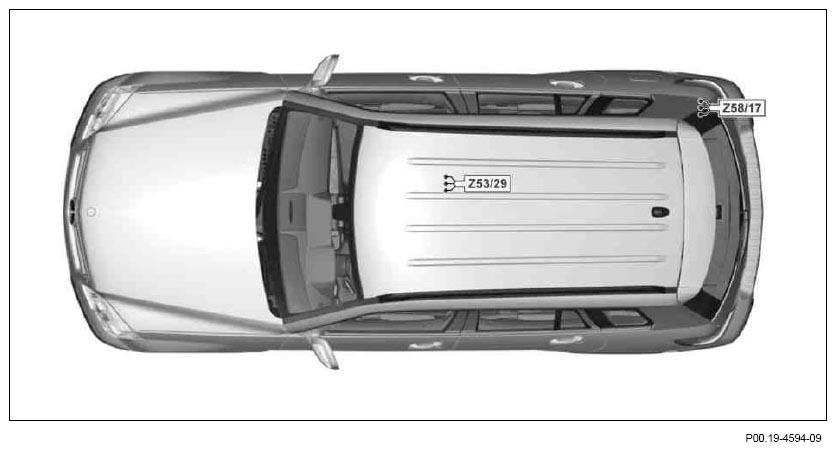

Fig 3: Z Connector Sleeves Location (3 Of 10)
G07204095Courtesy of MERCEDES-BENZ USA

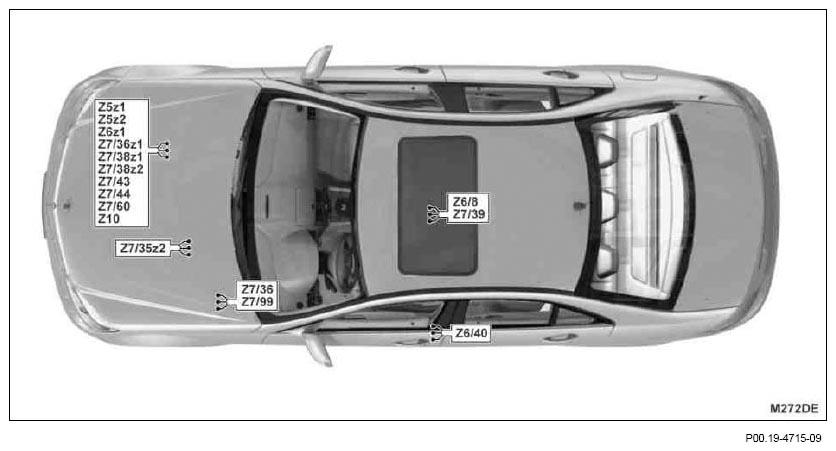

Fig 4: Z Connector Sleeves Location (4 Of 10)
G07204096Courtesy of MERCEDES-BENZ USA

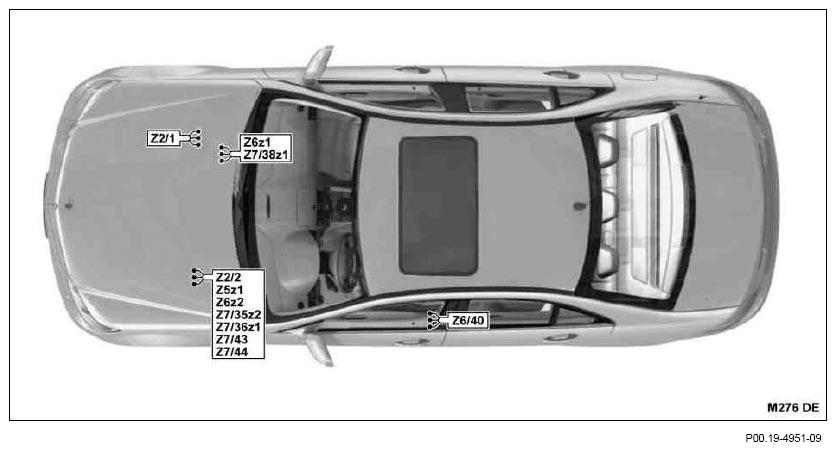

Fig 5: Z Connector Sleeves Location (5 Of 10)
G07204097Courtesy of MERCEDES-BENZ USA

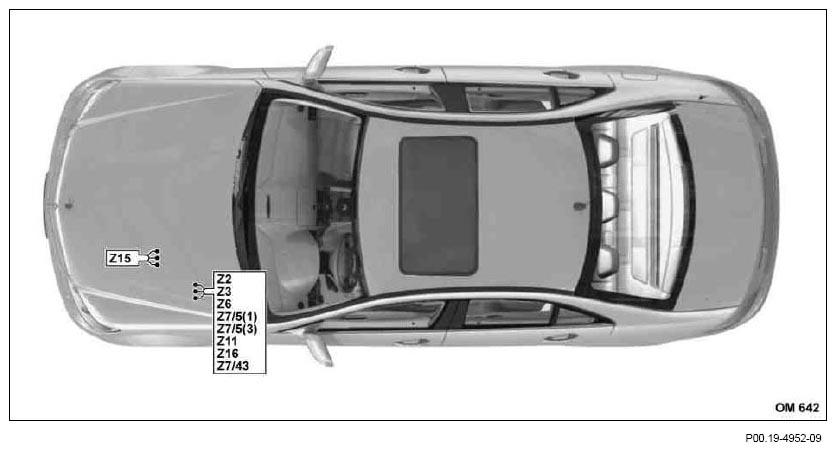

Fig 6: Z Connector Sleeves Location (6 Of 10)
G07204098Courtesy of MERCEDES-BENZ USA
Fig 7: Z Connector Sleeves Location (7 Of 10)
G07204099Courtesy of MERCEDES-BENZ USA

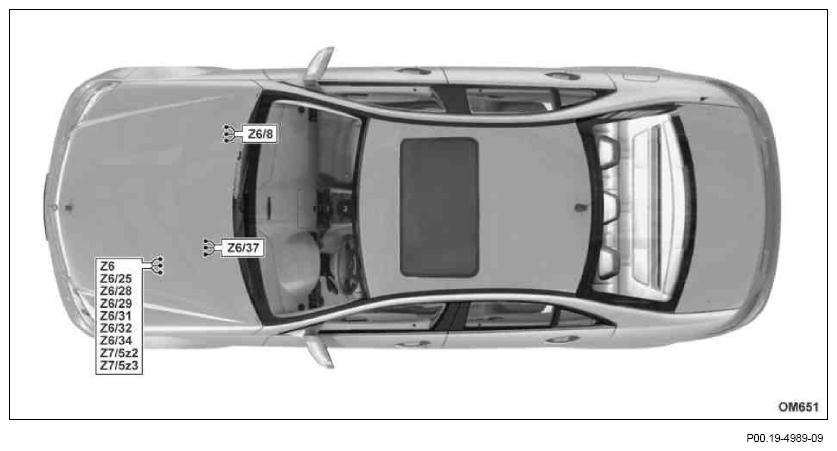

Fig 8: Z Connector Sleeves Location (8 Of 10)
G10084276Courtesy of MERCEDES-BENZ USA

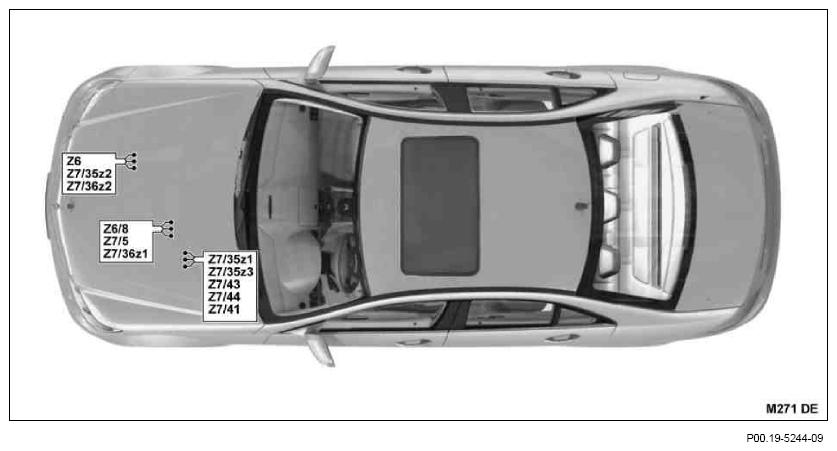

Fig 9: Z Connector Sleeves Location (9 Of 10)
G10084277Courtesy of MERCEDES-BENZ USA

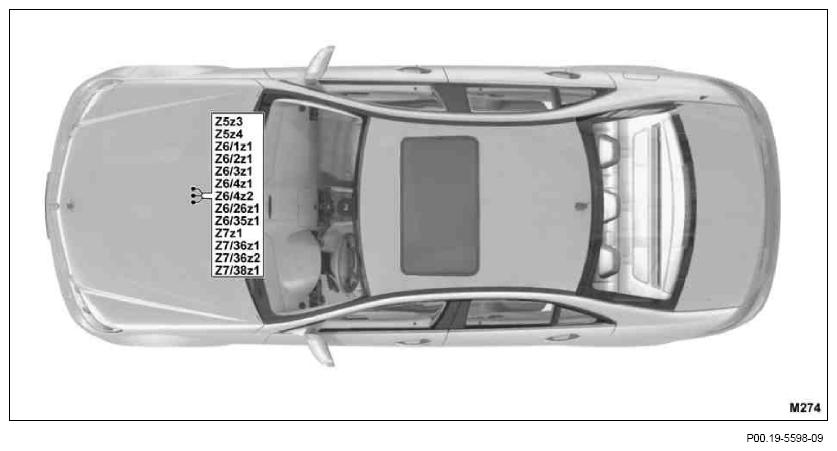

Fig 10: Z Connector Sleeves Location (10 Of 10)
G10084278Courtesy of MERCEDES-BENZ USA
A32z1 Air conditioner housing connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE83.40-P-2101FAA
A32z1 Air conditioner housing connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE83.40-P-2101FAC
M18/9z1 Left front seat cushion seat ventilation motor power supply connector sleeve Location GF00.19-P-3000-04FAA
    Assignment PE91.30-P-2102FAA
M18/9z2 Left front seat cushion seat ventilation motor ground connector sleeve Location GF00.19-P-3000-04FAA
    Assignment PE91.30-P-2102FAA
M18/10z1 Left front backrest seat ventilation motor power supply connector sleeve Location GF00.19-P-3000-04FAA
    Assignment PE91.30-P-2102FAA
M18/10z2 Left front backrest seat ventilation motor ground connector sleeve Location GF00.19-P-3000-04FAA
    Assignment PE91.30-P-2102FAA
M18/11z1 Right front seat cushion seat ventilation motor power supply connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE91.30-P-2102FAA
M18/11z2 Right front seat cushion seat ventilation motor ground connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE91.30-P-2102FAA
M18/12z1 Right front backrest seat ventilation motor power supply connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE91.30-P-2102FAA
M18/12z2 Right front backrest seat ventilation motor ground connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE91.30-P-2102FAA
Z2 Sensor voltage supply connector sleeve Location for OM642 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAB
Z2/1 Right engine ground connector sleeve Location for M276 GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAE
Z3 Circuit 15 connector sleeve Location for OM642 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAB
Z2/2 Left engine ground connector sleeve Location for M276 GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAE
Z4/23 Antenna circuit 30 connector sleeve Location GF00.19-P-3000-07FAA
    Assignment PE54.21-P-2108FAC
Z5 Connector sleeve in wiring harness Location for M156 GF00.19-P-3000-02FAA
    Assignment PE07.61-P-2101FAE
Z5 Connector sleeve in wiring harness Location GF00.19-P-3000-02FAA
    Assignment PE82.60-P-2104FAA
Z5z1 Cross section reduction connector sleeve Location for M276 GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAE
Z5z1 Cross section reduction connector sleeve Location for M272 DE GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAA
Z5z2 Connector sleeve in wiring harness Location for M272 DE GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAA
Z5z3 Voltage supply connector sleeve Location for M274 GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAG
Z5z4 Voltage supply connector sleeve Location for M274 GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAG
Z5/1z1 Blower/fan connector sleeve Location for M156 GF00.19-P-3000-02FAA
    Assignment PE07.61-P-2101FAF
Z5/1z2 Blower/fan connector sleeve Location for M156 GF00.19-P-3000-02FAA
    Assignment PE07.61-P-2101FAF
Z6 Circuit 31 connector sleeve Location for M271 DE GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAC
Z6 Circuit 31 connector sleeve Location for OM642 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAB
Z6 Circuit 31 connector sleeve Location for OM651 up to 05/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAF
Z6 Circuit 31 connector sleeve Location for OM651 as of 06/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAH
Z6z1 Circuit 31 connector sleeve Location for M272 DE GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAA
Z6z1 Circuit 31 connector sleeve Location for M272 KE GF00.19-P-3000-02FAA
    Assignment PE07.61-P-2101FAC
Z6z2 Circuit 31 connector sleeve Location for M272KE GF00.19-P-3000-01FAA
    Assignment PE07.61-P-2101FAC
Z6z1 Circuit 31 connector sleeve Location for M276 GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAE
Z6z2 Circuit 31 connector sleeve Location for M276 GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAE
Z6/1 Circuit 31 connector sleeve Location GF00.19-P-3000-07FAA
    Assignment PE54.21-P-2108FAD
Z6/1z1 Ground line connector sleeve Location for M274 GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAG
Z6/2z1 Ground line connector sleeve Location for M274 GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAG
Z6/3 Ground connector sleeve Location for M156 GF00.19-P-3000-02FAA
    Assignment PE07.61-P-2101FAE
Z6/3z1 Ground line connector sleeve Location for M274 GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAG
Z6/4z1 Ground line connector sleeve Location for M274 GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAG
Z6/4z2 Ground line connector sleeve Location for M274 GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAG
Z6/8 Sensor ground connector sleeve Location for M272 DE GF00.19-P-3000-04FAA
    Assignment PE07.08-P-2101FAB
Z6/8 Sensor ground connector sleeve Location for M271 DE GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAC
Z6/8 Sensor ground connector sleeve Location for OM651 up to 05/10 GF00.19-P-3000-02FAA
    Assignment PE07.16-P-2101FAE
Z6/8 Sensor ground connector sleeve Location for M271 DE GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAC
Z6/8 Sensor ground connector sleeve Location for OM651 as of 06/10 GF00.19-P-3000-02FAA
    Assignment PE07.16-P-2101FAG
Z6/15 Right seat belt buckle circuit 31 connector sleeve Location GF00.19-P-3000-04FAA
    Assignment PE91.60-P-2105FAA
Z6/25 Sensor voltage supply connector sleeve Location for OM651 up to 05/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAF
Z6/25 Sensor voltage supply connector sleeve Location for OM651 as of 06/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAH
Z6/26 Sensor voltage supply connector sleeve Location for M272 KE GF00.19-P-3000-02FAA
    Assignment PE07.61-P-2101FAC
Z6/26z1 Voltage supply connector sleeve Location for M274 GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAG
Z6/27 Sensor ground connector sleeve Location for M156 GF00.19-P-3000-02FAA
    Assignment PE07.61-P-2101FAE
Z6/28 Sensor ground connector sleeve Location for OM651 up to 05/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAF
Z6/28 Sensor ground connector sleeve Location for OM651 as of 06/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAH
Z6/29 Sensor ground connector sleeve Location for OM651 up to 05/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAF
Z6/29 Sensor ground connector sleeve Location for OM651 as of 06/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAH
Z6/31 Sensor voltage supply connector sleeve Location for OM651 up to 05/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAF
Z6/31 Sensor voltage supply connector sleeve Location for OM651 as of 06/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAH
Z6/32 Sensor ground connector sleeve Location for OM651 up to 05/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAF
Z6/32 Sensor ground connector sleeve Location for OM651 as of 06/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAH
Z6/34 Sensor ground connector sleeve Location for OM651 up to 05/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAF
Z6/34 Sensor ground connector sleeve Location for OM651 as of 06/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAH
Z6/37 Sensor voltage supply connector sleeve Location for OM651 up to 05/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAF
Z6/37 Sensor voltage supply connector sleeve Location for OM651 as of 06/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAH
Z6/30z1 ME-SFI [ME] diagnosis connector sleeve Location for M156 GF00.19-P-3000-02FAA
    Assignment PE07.61-P-2101FAE
Z6/30z2 ME-SFI [ME] diagnosis connector sleeve Location for M156 GF00.19-P-3000-01FAA
    Assignment PE07.61-P-2101FAE
Z6/40 NOx sensor connector sleeve Location for M272 DE GF00.19-P-3000-04FAA
    Assignment PE07.08-P-2101FAB
Z6/40 NOx sensor connector sleeve Location for M276 GF00.19-P-3000-04FAA
    Assignment PE07.08-P-2101FAF
Z6/85 Sensor ground connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE83.40-P-2101FAA
Z6/85 Sensor ground connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE83.40-P-2101FAB
Z6/94 Driver seat circuit 31 connector sleeve Location GF00.19-P-3000-04FAA
    Assignment PE91.29-P-2004FAA
Z6/94 Driver seat circuit 31 connector sleeve Location GF00.19-P-3000-04FAA
    Assignment PE91.29-P-2109FAA
Z6/94 Driver seat circuit 31 connector sleeve Location GF00.19-P-3000-04FAA
    Assignment PE91.29-P-2109FAB
Z6/95 Front passenger seat circuit 31 connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE91.29-P-2004FAA
Z6/95 Front passenger seat circuit 31 connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE91.29-P-2109FAA
Z6/95 Front passenger seat circuit 31 connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE91.29-P-2109FAB
Z7/5 Circuit 87 connector sleeve Location for M271 DE GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAC
Z7/5z1 Circuit 87 connector sleeve Location for OM642 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAB
Z7/5z2 Circuit 87 connector sleeve Location for OM651 up to 05/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAF
Z7/5z2 Circuit 87 connector sleeve Location for OM651 as of 06/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAG
Z7/5z3 Circuit 87 connector sleeve Location for OM642 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAB
Z7/5z3 Circuit 87 connector sleeve Location for OM651 up to 05/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAF
Z7/5z3 Circuit 87 connector sleeve Location for OM651 as of 06/10 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAG
Z7/21 Air conditioning circuit 30 connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE83.40-P-2101FAA
Z7/21 Air conditioning circuit 30 connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE83.40-P-2101FAB
Z7/35 Circuit 87 M1e connector sleeve Location for OM642.9 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAA
Z7/35 Circuit 87 M1e connector sleeve Location for M651 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAE
Z7/35z1 Circuit 87 M1e connector sleeve Location for M271 DE GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAC
Z7/35z1 Circuit 87 M1e connector sleeve Location for M156 GF00.19-P-3000-01FAA
    Assignment PE07.61-P-2101FAE
Z7/35z1 Circuit 87 M1e connector sleeve Location for M274 GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAG
Z7/35z2 Circuit 87 M1e connector sleeve Location for M156 GF00.19-P-3000-01FAA
    Assignment PE07.61-P-2101FAE
Z7/35z3 Circuit 87 M1e connector sleeve Location for M156 GF00.19-P-3000-01FAA
    Assignment PE07.61-P-2101FAE
Z7/35z4 Circuit 87 M1e connector sleeve Location for M156 GF00.19-P-3000-01FAA
    Assignment PE07.61-P-2101FAA
Z7/35z1 Circuit 87 M1e connector sleeve Location for M272 KE GF00.19-P-3000-01FAA
    Assignment PE07.61-P-2101FAC
Z7/35z1 Circuit 87 M1e connector sleeve Location for M276 GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAE
Z7/35z2 Circuit 87 M1e connector sleeve Location for M271 DE GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAC
Z7/35z2 Circuit 87 M1e connector sleeve Location for M272 KE GF00.19-P-3000-01FAA
    Assignment PE07.61-P-2101FAC
Z7/35z2 Circuit 87 M1e connector sleeve Location for M272 DE GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAA
Z7/35z3 Circuit 87 M1e connector sleeve Location for M271 DE GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAC
Z7/36 Circuit 87 M2e connector sleeve Location for M272 KE GF00.19-P-3000-01FAA
    Assignment PE00.19-P-2600FAB
Z7/36 Circuit 87 M2e connector sleeve Location for M272 DE GF00.19-P-3000-01FAA
    Assignment PE00.19-P-2600FAC
Z7/36 Circuit 87 M2e connector sleeve Location for M276 DE GF00.19-P-3000-01FAA
    Assignment PE00.19-P-2600FAD
Z7/36z1 Circuit 87 M2e connector sleeve Location for M272 KE GF00.19-P-3000-01FAA
    Assignment PE00.19-P-2600FAB
Z7/36z1 Circuit 87 M2e connector sleeve Location for M272 DE GF00.19-P-3000-01FAA
    Assignment PE00.19-P-2600FAC
Z7/36z1 Circuit 87 M2e connector sleeve Location for M271 DE GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAC
Z7/36z1 Circuit 87 M2e connector sleeve Location for M274 GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAG
Z7/36z1 Circuit 87 M2e connector sleeve Location for M276 GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAE
Z7/36z2 Circuit 87 M2e connector sleeve Location for M272 KE GF00.19-P-3000-01FAA
    Assignment PE00.19-P-2600FAB
Z7/36z2 Circuit 87 M2e connector sleeve Location for M271 DE GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAC
Z7/36z2 Circuit 87 M2e connector sleeve Location for M274 GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAG
Z7/38z1 Circuit 87 M1i connector sleeve Location for M272 KE GF00.19-P-3000-02FAA
    Assignment PE00.19-P-2600FAA
Z7/38z2 Circuit 87 M1i connector sleeve Location for M272 KE GF00.19-P-3000-02FAA
    Assignment PE00.19-P-2600FAA
Z7/38z1 Circuit 87 M1i connector sleeve Location for M272 DE GF00.19-P-3000-02FAA
    Assignment PE00.19-P-2600FAC
Z7/38z1 Circuit 87 M1i connector sleeve Location for M274 GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAG
Z7/38z2 Circuit 87 M1i connector sleeve Location for M272 DE GF00.19-P-3000-02FAA
    Assignment PE00.19-P-2600FAC
Z7/38z1 Circuit 87 M1i connector sleeve Location for M276 GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAE
Z7/39 Circuit 87 M2i connector sleeve Location for M272 DE GF00.19-P-3000-04FAA
    Assignment PE07.08-P-2101FAB
Z7/41 Sensor voltage supply connector sleeve Location for M271 DE GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAC
Z7/41 Sensor voltage supply connector sleeve Location for M276 GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAE
Z7/43 Sensor ground connector sleeve Location for M272.982 GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAA
Z7/43 Sensor ground connector sleeve Location for M271 DE GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAC
Z7/43 Sensor ground connector sleeve Location for M276 GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAE
Z7/43 Sensor ground connector sleeve Location for OM642 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAB
Z7/43 Sensor ground connector sleeve Location for M272 GF00.19-P-3000-02FAA
    Assignment PE07.61-P-2101FAC
Z7/44 Sensor ground connector sleeve Location for M272.982 GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAA
Z7/44 Sensor ground connector sleeve Location for M271 DE GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAC
Z7/44 Sensor ground connector sleeve Location for M276 GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAE
Z7/44 Sensor ground connector sleeve Location for M272 GF00.19-P-3000-02FAA
    Assignment PE07.61-P-2101FAC
Z7/60 5V output connector sleeve Location for M272 DE GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAA
Z7/61 5V output 2 connector sleeve Location for M156 GF00.19-P-3000-02FAA
    Assignment PE07.61-P-2101FAE
Z7/76 Cockpit, circuit 30G connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE54.21-P-2106FAI
Z7z1 Ground line connector sleeve Location for M274 GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAG
Z7/98z1 Circuit 87 M3e connector sleeve Location for M156 GF00.19-P-3000-02FAA
    Assignment PE07.61-P-2101FAE
Z7/98z2 Circuit 87 M3e connector sleeve Location for M156 GF00.19-P-3000-01FAA
    Assignment PE07.61-P-2101FAE
Z7/98z3 Circuit 87 M3e connector sleeve Location for M156 GF00.19-P-3000-02FAA
    Assignment PE07.61-P-2101FAE
Z7/98z3 Circuit 87 M3e connector sleeve Location for M156 GF00.19-P-3000-02FAA
    Assignment PE07.61-P-2101FAF
Z7/99 Circuit 87 M4e connector sleeve Location for M272 DE GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAB
Z7/99 Circuit 87 M4e connector sleeve Location for M276 GF00.19-P-3000-01FAA
    Assignment PE07.08-P-2101FAF
Z10 Connector sleeve 2 Location for M272 DE GF00.19-P-3000-02FAA
    Assignment PE07.08-P-2101FAA
Z11 Connector sleeve 3 in wiring harness Location for OM642 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAB
Z15 Connector sleeve 7 in wiring harness Location for OM642 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAB
Z16 Connector sleeve 8 in wiring harness Location for OM642 GF00.19-P-3000-01FAA
    Assignment PE07.16-P-2101FAB
Z20/73 Tracer wire connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE82.60-P-2101FAA
Z20/73 Tracer wire connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE82.61-P-2101FAA
Z20/73 Tracer wire connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE82.61-P-2101FAA
Z20/73 Tracer wire connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE82.85-P-2101FAB
Z28/10 Receiver shielding connector sleeve Location GF00.19-P-3000-06FAA
    Assignment PE54.65-P-2102FAB
Z35/10 MOST wake-up signal connector sleeve Location GF00.19-P-3000-04FAA
    Assignment PE82.00-P-2710FAA
Z35/20 Cockpit chassis CAN (high) connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE54.21-P-2104FAA
Z35/21 Cockpit chassis CAN (low) connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE54.21-P-2104FAA
Z36/1 Rear PARKTRONIC sensors ground line connector sleeve Location GF00.19-P-3000-06FAA
    Assignment PE30.30-P-2101FAA
Z36/1 Rear PARKTRONIC sensors ground line connector sleeve Location GF00.19-P-3000-06FAA
    Assignment PE54.65-P-2101FAA
Z36/2 Rear PARKTRONIC sensors positive line connector sleeve Location GF00.19-P-3000-06FAA
    Assignment PE30.30-P-2101FAA
Z36/2 Rear PARKTRONIC sensors positive line connector sleeve Location GF00.19-P-3000-06FAA
    Assignment PE54.65-P-2101FAA
Z36/3 Front PARKTRONIC sensors ground line connector sleeve Location GF00.19-P-3000-01FAA
    Assignment PE30.30-P-2101FAA
Z36/3 Front PARKTRONIC sensors ground line connector sleeve Location GF00.19-P-3000-01FAA
    Assignment PE54.65-P-2101FAA
Z36/4 Front PARKTRONIC sensors positive line connector sleeve Location GF00.19-P-3000-01FAA
    Assignment PE30.30-P-2101FAA
Z36/4 Front PARKTRONIC sensors positive line connector sleeve Location GF00.19-P-3000-01FAA
    Assignment PE54.65-P-2101FAA
Z36/5 Headlamp range adjustment sensor ground connector sleeve Location GF00.19-P-3000-01FAA
    Assignment PE82.10-P-2000FAA
Z36/5 Headlamp range adjustment sensor ground connector sleeve Location GF00.19-P-3000-01FAA
    Assignment PE82.10-P-2000FAC
Z36/6 Sensor voltage supply connector sleeve Location GF00.19-P-3000-01FAA
    Assignment PE82.10-P-2000FAA
Z36/6 Sensor voltage supply connector sleeve Location GF00.19-P-3000-01FAA
    Assignment PE82.10-P-2000FAC
Z36/17 Rear sensor CAN connector sleeve Location GF00.19-P-3000-22FAA
    Assignment PE54.18-P-2300FAH
Z36/19 Rear sensor CAN connector sleeve Location GF00.19-P-3000-22FAA
    Assignment PE54.18-P-2300FAH
Z36/35 Rear radar sensors sensor power supply connector sleeve Location GF00.19-P-3000-22FAA
    Assignment PE54.18-P-2300FAH
Z36/36 Rear radar sensors sensor ground connector sleeve Location GF00.19-P-3000-22FAA
    Assignment PE54.18-P-2300FAH
Z50/1 Circuit 58d instrument panel connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE83.40-P-2101FAA
Z50/1 Circuit 58d instrument panel connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE83.40-P-2101FAB
Z50/3 Circuit 31 instrument panel connector sleeve Location GF00.19-P-3000-04FAA
    Assignment PE83.40-P-2101FAA
Z50/3 Circuit 31 instrument panel connector sleeve Location GF00.19-P-3000-04FAA
    Assignment PE83.40-P-2101FAB
Z53/29 Rear entertainment system circuit 30 connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE82.60-P-2104FAA
Z58/17 Circuit 58 trailer socket connector sleeve Location GF00.19-P-3000-07FAA
    Assignment PE31.19-P-2101FAA
Z61/18 Circuit 15R connector sleeve for left seat, ESV, fully electric Location GF00.19-P-3000-04FAA
    Assignment PE91.29-P-2004FAA
Z61/18 Left seat circuit 15R connector sleeve Location GF00.19-P-3000-04FAA
    Assignment PE91.29-P-2109FAA
Z61/18 Left seat circuit 15R connector sleeve Location GF00.19-P-3000-04FAA
    Assignment PE91.29-P-2109FAB
Z61/19 Right seat circuit 15R connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE91.29-P-2004FAA
Z61/19 Right seat circuit 15R connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE91.29-P-2109FAA
Z61/19 Right seat circuit 15R connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE91.29-P-2109FAB
Z68/1 Instrument panel circuit 31 climate control LIN connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE54.21-P-2119FAA
Z68/1 Instrument panel circuit 31 climate control LIN connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE82.10-P-2000FAA
Z68/1 Instrument panel circuit 31 climate control LIN connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE82.10-P-2000FAB
Z68/1 Instrument panel circuit 31 climate control LIN connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE82.10-P-2000FAC
Z68/2 Instrument panel climate control LIN positive line connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE54.21-P-2119FAA
Z68/2 Instrument panel climate control LIN positive line connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE82.10-P-2000FAA
Z68/2 Instrument panel climate control LIN positive line connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE82.10-P-2000FAB
Z68/2 Instrument panel climate control LIN positive line connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE82.10-P-2000FAC
Z68/3 Vehicle interior LIN bus ground line connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE83.40-P-2101FAB
Z68/10 Instrument panel LIN connector sleeve, Location GF00.19-P-3000-03FAA
    Assignment PE54.21-P-2119FAA
Z68/10 Instrument panel LIN connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE82.10-P-2000FAA
Z68/10 Instrument panel LIN connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE82.10-P-2000FAB
Z68/10 Instrument panel LIN connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE82.10-P-2000FAC
Z68/11 Rear air conditioning LIN bus ground line connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE83.40-P-2101FAB
Z80z1 Cross section reduction connector sleeve Location GF00.19-P-3000-07FAA
    Assignment PE07.61-P-2101FAB
Z80z1 Cross section reduction connector sleeve Location GF00.19-P-3000-07FAA
    Assignment PE07.61-P-2101FAD
Z80z3 Cross section reduction connector sleeve Location GF00.19-P-3000-07FAA
    Assignment PE54.21-P-2106FAD
Z81 Circuit 58d connector sleeve   GF00.19-P-3000-04FAA
    Assignment PE00.19-P-2600FAE
Z81/11 Air conditioning circuit 58d connector sleeve Location GF00.19-P-3000-05FAA
    Assignment PE83.40-P-2101FAB
Z84/1 Throttle valve actuator connector sleeve (+ signal) Location for M156 GF00.19-P-3000-01FAA
    Assignment PE07.61-P-2101FAE
Z84/2 Throttle valve actuator connector sleeve (- signal) Location for M156 GF00.19-P-3000-01FAA
    Assignment PE07.61-P-2101FAE
Z102z1 Steering column adjustment connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE91.29-P-2004FAA
Z102z1 Steering column adjustment connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE91.29-P-2105FAA
Z102z2 Steering column adjustment connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE91.29-P-2004FAA
Z102z2 Steering column adjustment connector sleeve Location GF00.19-P-3000-03FAA
    Assignment PE91.29-P-2105FAA
Z120/1 AdBlue® circuit 30 terminal connector Location GF00.19-P-3000-06FAA
    Assignment PE14.40-P-2101FAA
Z209/2 Fuel pump control unit connector sleeve Location for M646.8, M646.9, M651 GF00.19-P-3000-05FAA
    Assignment PE47.20-P-2100FAA
Z209/2 Fuel pump control unit connector sleeve Location for M271, M272 GF00.19-P-3000-05FAA
    Assignment PE47.40-P-2101FAA
Z209/2 Fuel pump control unit connector sleeve Location for M156 GF00.19-P-3000-05FAA
    Assignment PE47.40-P-2101FAB
  Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment left MODEL 204 GF00.19-P-3000-01FAA
  Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment, right MODEL 204 GF00.19-P-3000-02FAA
  Location and assignment of Z connector sleeves (cable connections in wiring harness) - cockpit MODEL 204 GF00.19-P-3000-03FAA
  Location and assignment of Z connector sleeves (cable connections in wiring harness) - interior left MODEL 204 GF00.19-P-3000-04FAA
  Location and assignment of Z connector sleeves (cable connections in wiring harness) - interior right MODEL 204 GF00.19-P-3000-05FAA
  Location and assignment of Z connector sleeves (connectors and wiring harness) -trunk left MODEL 204 GF00.19-P-3000-06FAA
  Location and assignment of Z connector sleeves (connectors and wiring harness) -trunk right MODEL 204 GF00.19-P-3000-07FAA
  Location and assignment, Z-connector sleeves (line connectors in wiring harness)- bumper MODEL 204 GF00.19-P-3000-22FAA
scientia non olet · About LEMON Manuals
