Location and assignment of Z connector sleeves (connectors and wiring harness) - trunk left - GF00.19-P-3000-06FAA

Model 204

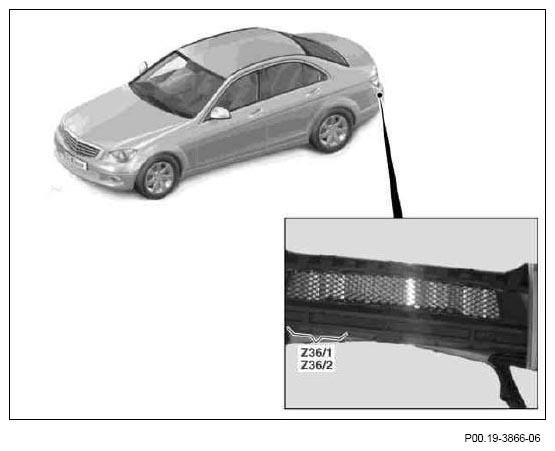

Fig 1: Overview Of Z Connector Sleeves (Trunk Left)
G07204090Courtesy of MERCEDES-BENZ USA

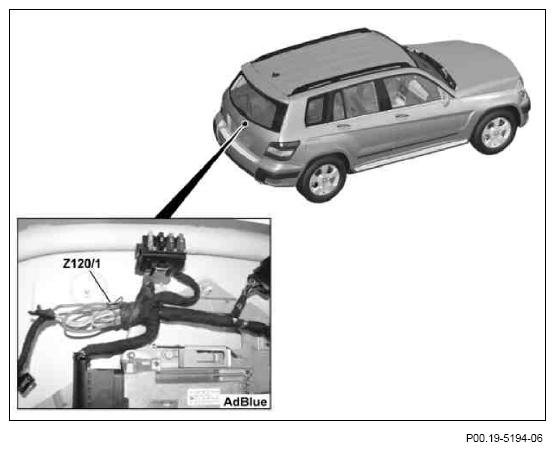

Fig 2: Overview Of Z Connector Sleeves (Trunk Left)
G10105362Courtesy of MERCEDES-BENZ USA
