Component description for the radio - GF82.60-P-3122CEA
MODEL 204.0/2 as of model year 2012 with CODE 510 (Audio 20 with CD changer) without CODE 523 (MB Audio 20 radio)
MODEL 204.0/2 as of model year 2012 with CODE 523 (MB Audio 20 radio) without CODE 510 (Audio 20 with CD changer)
MODEL 204.3 with CODE 510 (Audio 20 with CD changer)
MODEL 204.3 with CODE 523 (MB Audio 20 radio)
MODEL 204.9 as of model year 2013 with CODE 510 (Audio 20 with CD changer) without CODE 523 (MB Audio 20 radio)
MODEL 204.9 as of model year 2013 with CODE 523 (MB Audio 20 radio) without CODE 510 (Audio 20 with CD changer)
Location

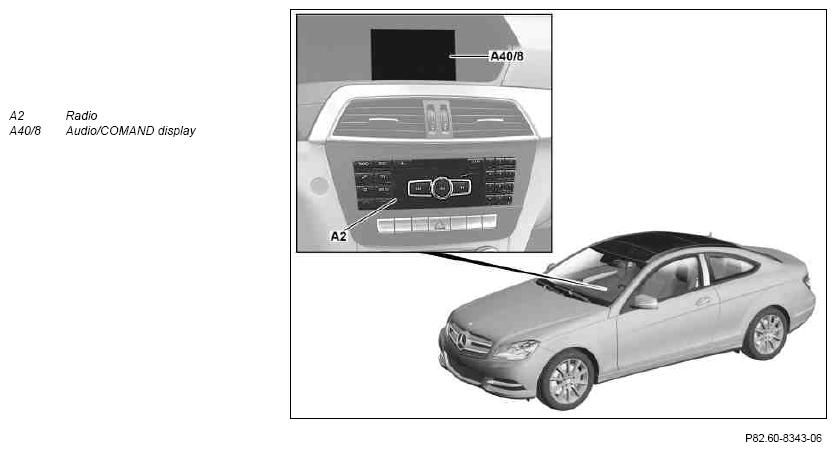

The radio is located in the center console.
Shown on model 204.3 except code (508) Navigation box pre-installation or code (509) Navigation box
Task
- Central control and display device for entertainment and communications systems integrated into vehicle
- Reading in the controls and input signals
- Evaluation of input factors
- Activation of output media and system components
Central control and display device for entertainment and communications systems integrated into vehicle
The radio provides the user with a structured and uniform interface, which is displayed on the Audio/COMAND display.
Reading in the controls and input signals
The input factors are read in via the following connections:
- Media Oriented System Transport (MOST) (with code (510) Audio 20 with CD changer or with code (523) MB Audio 20 radio and code (494) USA version)
- CAN
- Direct lines
Media Oriented System Transport (MOST) (with code (510) Audio 20 with CD changer or with code (523) MB Audio 20 radio and code (494) USA version)
With navigation activated with the "NAVI" button (with code (509) Navigation box), the interface is generated in the navigation module (A2/30), not in the radio. The function and menu guidance are provided by the manufacturer and are not specific for Mercedes-Benz.
The radio receives control and audio signals from the following control units:
- Sound system amplifier control unit (N40/3) (with code (810) Sound system)
- Digital Audio Broadcasting control unit (N87/3) (with code (537) Digital radio)
- Satellite Digital Audio Radio (SDAR) control unit (N87/5) (with code (536) SIRIUS satellite radio)
- Media interface control unit (N125/1) (with code (518) Media interface)
CAN
The radio is a subscriber of the interior CAN (CAN B) and the telematics CAN (CAN A).
Direct lines
The radio receives signals via the following direct connections:
- Circuit 30g
- circuit 31
- Wake-up for MOST (with code (510) Audio 20 with CD changer or with code (523) MB Audio 20 radio and code (494) USA version)
- Bluetooth antenna (A2/91)
- Hands-free system microphone (A67b1)
- Telephone muting (with code (348) Emergency call/assist system or with code (359) TELEAID emergency call system)
- USB electrical connector (X115) (in stowage compartment (telephone compartment) below center armrest)
- AUX connection electrical connector (X39/45) (up to 31.5.2013) (in stowage compartment (telephone compartment) under center armrest, for external audio equipment) (except code (518) Media Interface)
- FM, AM and CL [ZV] antenna amplifier (A2/18), model 204.0/3
- Rear window antenna amplifier 1 (A2/71), model 204.2/9
- Rear window FM antenna amplifier (A2/19), model 204.0/2 or model 204.9 except code (537) Digital radio
- FM 2 and DAB antenna amplifier (A/19), model 204.3
- FM 2, DAB and TV 1 antenna amplifier (A94/1), model 204.9 with code (537) Digital radio
- Cradle for navigation module (A2/30-1) (with code (508) Navigation box pre-installation or with code (509) Navigation box) (in glove compartment)
- External fan (diagnosis)
Evaluation of input factors
The input values are processed in the radio.
Activation of output media and system components
The following direct output signals are possible:
- Audio output (speaker) (except code (810) Sound system)
- Switching voltage for telephony to mobile phone contact plate (X237/1) (as of 1.6.2013 with code (386) Comfort telephony or with code (379) Telephone module with Bluetooth SAP)
- Switching voltage for telephony to Bluetooth module (A34/7) (up to 31.5.2013) (with code (386) Comfort telephony or with code (379) Telephone module with Bluetooth SAP)
- Switching voltage and control signals to USB electrical connector
- Microphone output to the bracket for navigation module (with code (508) Navigation box pre-installation or with code (509) Navigation box)
- External fan (speed control and power supply)
A structured and uniform interface is provided for the following system components:
- Audio system (e.g. "Radio", "CD" (also MP3), "AUX")
- Communication system (e.g. telephone with telephone book function)
- Tone settings (e.g. "bass", "treble", "fader", "balance')
- System settings (e.g. brightness and contrast of Audio/COMAND display)
Body
On vehicles except code (508) Navigation box pre-installation or code (509) Navigation box the "NAVI" button on the left keypad has been replaced by the "Tone" button (music symbols).

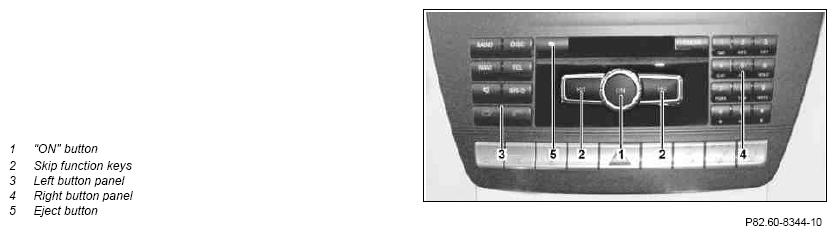

Shown with code (510) Audio 20 including CD changer and code (508) Navigation box pre-installation or code (509) Navigation box
Function
The button signals for the operating panels on the radio are read in and made available to the integrated central computer. Button actuation is processed further in the central computer. If the "ON" button on the radio is pressed, the radio switches on. The volume for the audio sources is regulated on the "ON" button by turning. Pressing the function keys in the left button panel enables the user to switch to the desired system components.
CD drive or CD changer with integrated CD drive
The integrated CD drive can be used to play audio CDs (including in MP3 format).
| Technical data Designation |
Unit | Values | Tolerance range | Remarks |
|---|---|---|---|---|
| Radio | ||||
| Voltage supply | V | 12 | Battery voltage UB | |
| Voltage limits | V | 9 | Minimum UBmin | |
| V | 16 | Maximum UBmax | ||
| Power consumption | A | 15 | Rated power consumption IBmax | |
| A | 5 | Rated power consumption IModel | ||
| A | approx. 4.5 | Action speaker IAction | ||
| A | approx. 0.1 | Action cradle ON/OFF IAction | ||
| μA | 180 | No-load current I0 | ||
| Reverse polarity protection | Yes | |||
| Additional specific parameters | None | |||
| Special features | The radio is protected with a 10 A fuse in the MQS-40 connector at the rear panel. | |||
| Flash capability/coding capability | Yes/yes | |||
| USB electrical connector | ||||
| Type | Connector | |||
| Power consumption | mA | 500 |
| Wiring diagram for radio (RD) control unit | A2 | PE82.60-P-2101-97FAB |
