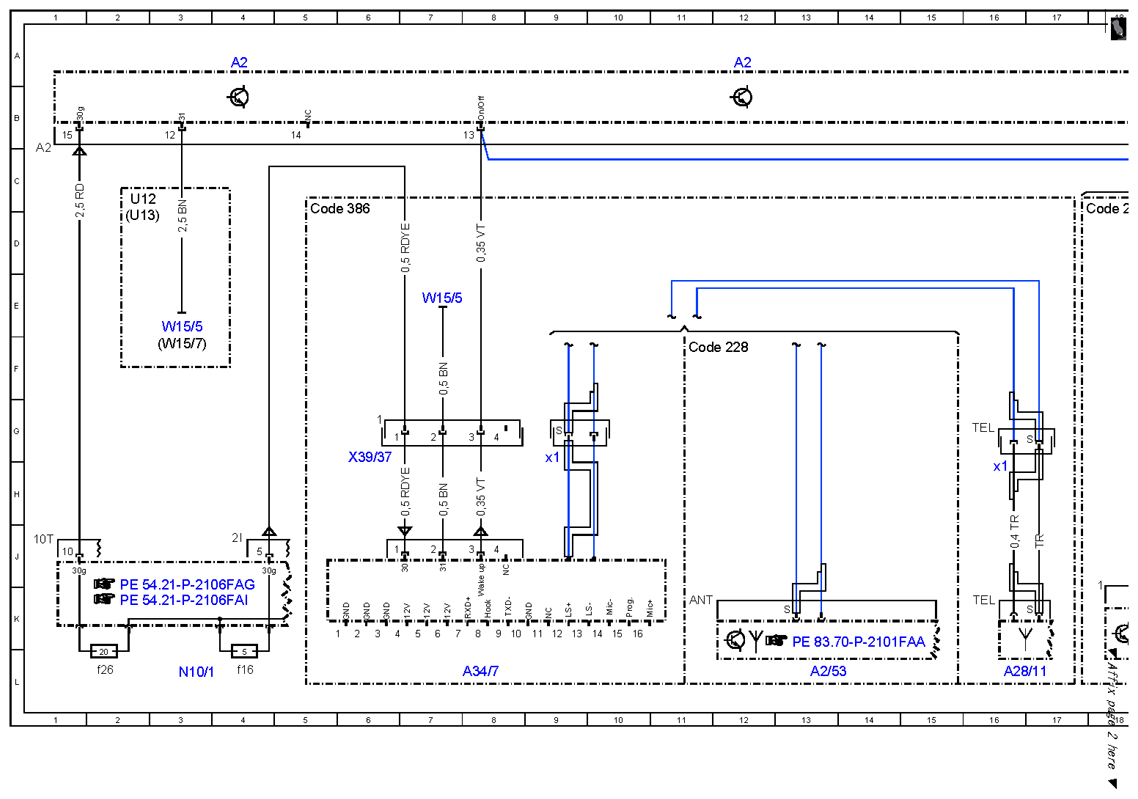

| A0 |
Color code key |
80A |
| A2 |
Radio |
4A |
| A2 |
Radio |
12A |
| A2 |
Radio |
28A |
| A2 |
Radio |
20A |
| A2 |
Radio |
35A |
| A2 |
Radio |
44A |
| A2 |
Radio |
53A |
| A2 |
Radio |
61A |
| A2 |
Radio |
68A |
| A2 |
Radio |
76A |

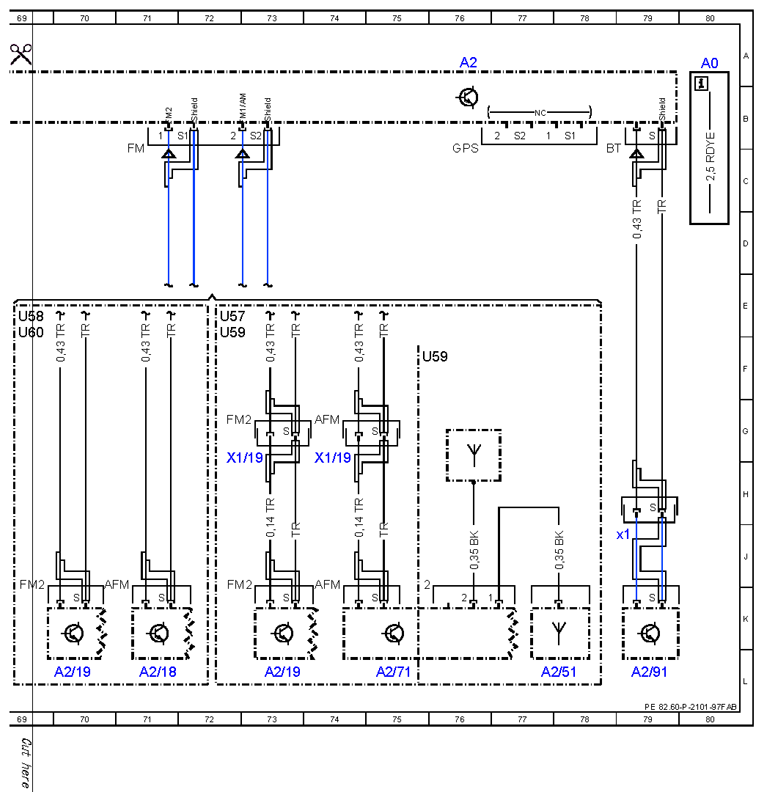

| A2/18 |
FM, AM and CL [ZV] antenna amplifier |
71L |
| A2/19 |
Rear window antenna FM antenna amplifier |
70L |
| A2/19 |
Rear window antenna FM antenna amplifier |
73L |
| A2/51 |
Rear spoiler antenna |
77L |
| A2/53 |
Mobile phone and stationary heater radio remote control antenna splitter |
13L |
| A2/71 |
Rear window antenna amplifier 1 |
75L |
| A2/91 |
Bluetooth antenna |
79L |
| A2/91x1 |
Bluetooth antenna electrical connector |
79J |
| A28/11 |
Multifunction antenna |
16L |
| A28/11x1 |
Multifunction antenna electrical connector |
16H |

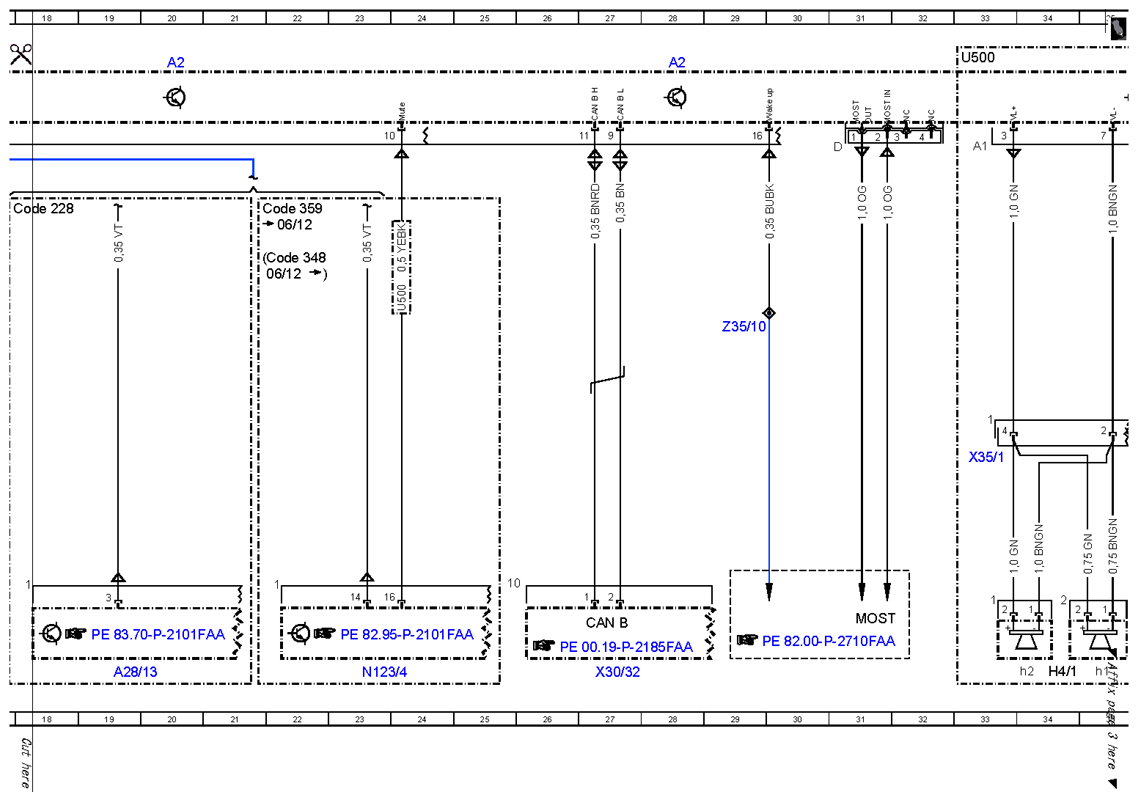

| A28/13 |
Compensator/cellular telephone system UMTS |
19L |
| A34/7 |
Bluetooth module |
8L |
| A34/7x1 |
Bluetooth® module electrical connector 1 |
9H |

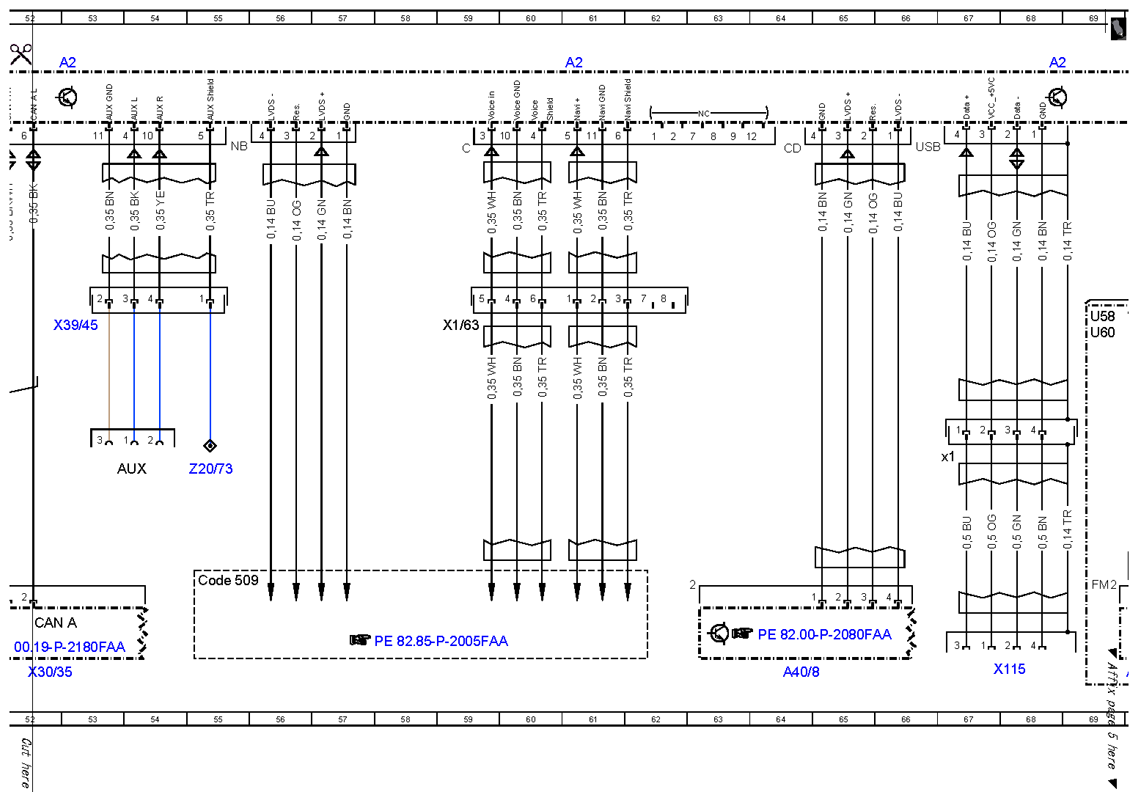

| A40/8 |
Audio/COMAND display |
64L |

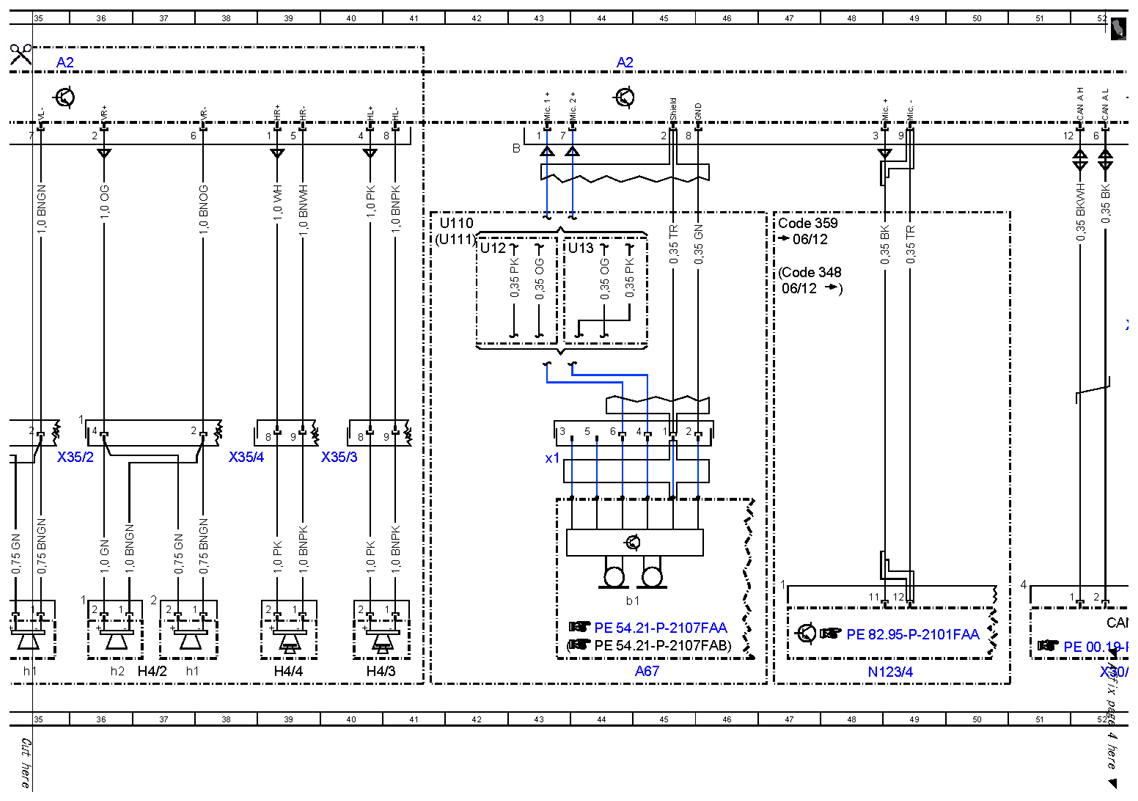

| A67 |
Inside rearview mirror |
45L |
| A67b1 |
Hands-free system microphone |
44K |
| A67x1 |
Inside rearview mirror unit electrical connector |
43H |
| CAN A |
Telematics CAN |
52K |
| CAN B |
Interior CAN |
27K |
| Code 228 |
Stationary heater |
11F |
| Code 228 |
Stationary heater |
17D |
| Code 348 |
Emergency call/assistance system |
22D |
| Code 348 |
Emergency call/assistance system |
47E |
| Code 359 |
TELEAID emergency call system |
21D |
| Code 359 |
TELEAID emergency call system |
47D |
| Code 386 |
Mobile phone |
5D |
| Code 509 |
Navigation module |
55J |
| H4/1 |
Left front door speaker |
34L |
| H4/1h1 |
Left front door tweeter |
35L |
| H4/1h2 |
Left front door bass speaker |
34L |
| H4/2 |
Right front door speaker |
37L |
| H4/2h1 |
Right front door tweeter |
37L |
| H4/2h2 |
Right front door bass speaker |
36L |
| H4/3 |
Left rear door speaker |
40L |
| H4/4 |
Right rear door speaker |
39L |
| MOST |
Media Oriented System Transport |
31K |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1f16 |
Fuse 16 |
4L |
| N10/1f26 |
Fuse 26 |
2L |
| N123/4 |
Emergency call system control unit |
23L |
| N123/4 |
Emergency call system control unit |
48L |
| U110 |
Valid for overhead control panel with CAN |
41D |
| U111 |
Valid for overhead control panel without CAN |
41D |
| U12 |
Valid for left-hand drive vehicles |
2C |
| U12 |
Valid for left-hand drive vehicles |
42D |
| U13 |
Valid for right-hand drive vehicles |
2D |
| U13 |
Valid for right-hand drive vehicles |
43D |
| U500 |
Not valid for sound system |
24E |
| U500 |
Not valid for sound system |
33A |
| U57 |
Valid for model 204.2 |
72E |
| U58 |
Valid for model 204.0 |
69E |
| U59 |
Valid for model 204.9 |
72F |
| U59 |
Valid for model 204.9 |
75F |
| U60 |
Valid for model 204.3 |
69F |
| W15/5 |
Left front footwell ground point |
3E |
| W15/5 |
Left front footwell ground point |
7E |
| W15/7 |
Right front footwell ground point |
3F |
| X1/19 |
AM/FM antenna amplifier electrical connector |
73H |
| X1/19 |
AM/FM antenna amplifier electrical connector |
74H |
| X1/63 |
Antenna splitter, antenna amplifier and multifunction antenna electrical connector |
59E |
| X115 |
USB electrical connector |
68L |
| X115x1 |
USB electrical connector connecting point |
67G |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
27L |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
52L |
| X35/1 |
Left front door electrical connector |
33H |
| X35/2 |
Right front door electrical connector |
36H |
| X35/3 |
Left rear door electrical connector |
40H |
| X35/4 |
Right rear door electrical connector |
38H |
| X39/37 |
Mobile phone electrical connector |
6H |
| X39/45 |
AUX jack electrical connector |
53E |
| Z20/73 |
Tracer wire connector sleeve |
55H |
| Z35/10 |
MOST wake-up signal connector sleeve |
29E |
