Remove/install additional turn signal lamp - AR82.25-P-4726V
MODELS 171.4
| Remove/Install | ||
|---|---|---|

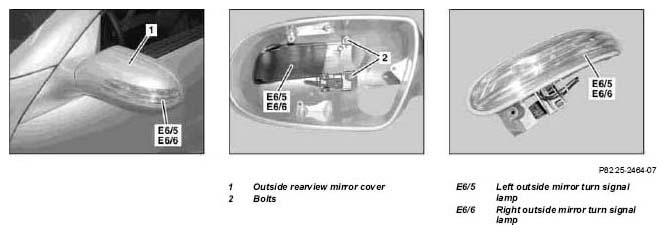

| 1 | Remove trim panel of outside mirror (1) | AR88.70-P-9040V |
| 2 | Unscrew bolts (2) | |
| 3 | Remove the left outside mirror turn signal lamp (E6/5) or the right outside mirror turn signal lamp (E6/6) from the outside rearview mirror cover (1) | |
| 4 | Install in the reverse order |
