Remove/install outside rearview mirror cover - AR88.70-P-9040V

MODEL 171.4

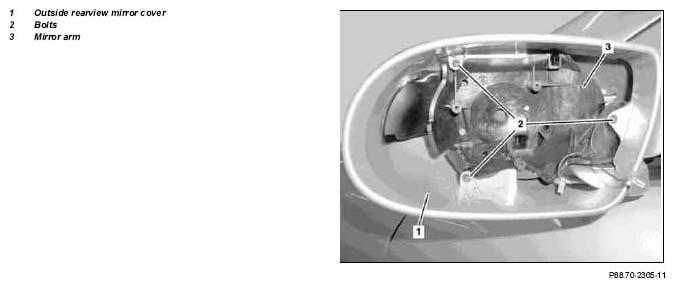

Fig 1: Identifying Outside Rearview Mirror Cover Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove glass adjustment drive		AR88.70-P-9060V
2	Unscrew bolts (2)
3	Remove outside rearview mirror paneling (1) from mirror arm (3)
4	Install in the reverse order
