Remove/install rear axle valve unit - AR32.50-P-0002RX (SL550, SL55AMG 2007-2008, SL63 AMG, SL600 2007-2009, SL65 2006-2011)
MODEL 230.470 /471 /472 /477
MODEL 230.479 as of model year 2006
| Remove/install | |||
|---|---|---|---|
| Notes on fitting hydraulic lines and hoses | AH32.50-P-0001-02A | ||
| Before opening the hydraulic system the area surrounding the separation point should be cleaned thoroughly. Even the smallest dirt particles, introduced into the hydraulic components, can lead to malfunctions and a total failure of the hydraulic system. | |||
| Notes on Active Body Control suspension | AH32.50-P-0001-01N | ||
| 1 | Detach left rear wheel | ||
| Remove/install wheels | AP40.10-P-4050Z | ||
| 2 | Remove fender liner in the rear left fender | AR88.10-P-1400R | |
| 3 | Relieve pressure in the rear axle ABC system | AR32.50-P-0001-01N | |
| *BA32.50-P-1001-02B | |||
| 4 | Remove bolts (2) and remove hydraulic lines (2a) | Ensure that no dirt gets into the opened hydraulic lines (2a) as this can lead to the failure of the ABC system. | |
| *BA32.50-P-1022-01A | |||
| 5 | Separate hydraulic lines (8) using release tool on quick-release couplings (7) | Ensure that no dirt gets into the open quick-release couplings (7) as this can lead to the failure of the ABC system. | |
| Fig 3 | |||
| Fig 2 | |||
| Observe different cross-sections of the quick-release couplings (7). Installation: Ensure that the quick-release couplings (7) latch completely. Installation: The hydraulic lines (8) and quick-release couplings (7) are color coded and must not be transposed. |
|||
| 6 | Detach retaining clamp (6) and separate cable ties (5) | ||
| 7 | Slacken nut (1) | ||

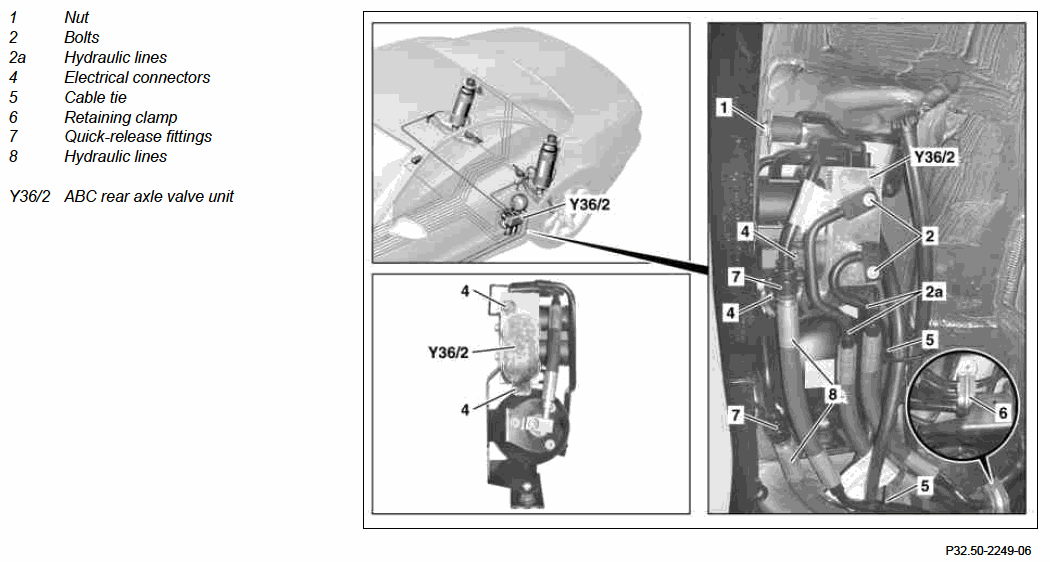

| 8 | Pull rear axle ABC valve unit (Y36/2) backwards slightly and detach electrical connectors (4) | Only pull the rear axle ABC valve unit (Y36/2) back until the electrical connectors (4) are accessible Before detaching the electrical connectors (4), check whether the color coding on the rear axle ABC valve unit (Y36/2) and the electrical connectors (4) are present. Otherwise, if incorrectly mounted, the rear axle ABC valve unit (Y36/2) may be destroyed or malfunction. Warning: Risk of accident! Installation: The electrical plugs and connections on the rear axle ABC valve unit (Y36/2) are color coded relative to each other, and they must not be mixed up. |
|
| 9 | Remove rear axle ABC valve unit (Y36/2) to the rear | ||
| 10 | Detach hydraulic lines (8) from rear axle ABC valve unit (Y36/2) | When replacing rear axle ABC valve unit (Y36/2) Installation: Check sealing rings for damage and replace if necessary. Check support rings for damage and replace the complete hydraulic line (8) if necessary. |
|
| *BA32.50-P-1022-01A | |||
| 11 | Install in the reverse order | ||
| 12 | Fill and bleed ABC system | AR32.50-P-0021N | |
| 13 | Carry out plunger travel calibration using STAR DIAGNOSIS | When replacing rear axle ABC valve unit (Y36/2) |
ACTIVE BODY CONTROL, LINES
| Number | Designation | Model 230 | ||
|---|---|---|---|---|
| BA32.50-P-1001-02B | Bleed screw on soldered fitting in hydraulic line | M10x1 | Nm | 20 |
ACTIVE BODY CONTROL SUSPENSION
| Number | Designation | Model 230 | ||
|---|---|---|---|---|
| BA32.50-P-1022-01A | Bolt, line to rear axle valve unit | M8x25 | Nm | 20 |
