Remove/install fender liner in rear fender - AR88.10-P-1400R
MODEL 230.4 except CODE (P99) "AMG Black Series" special model

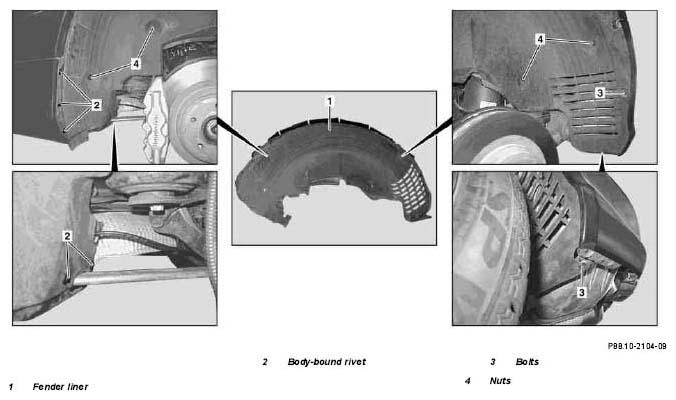

Shown on left rear fender
| Remove/Install | |||
|---|---|---|---|
| Risk of death. Death may result if vehicle slips or topples from the lifting platform. | Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Remove rear wheels | ||
| Remove/install wheels, rotate if necessary | AP40.10-P-4050Z | ||
| 2 | Remove body-bound rivet (2) | ||
| 3 | Unscrew bolts (3) | ||
| 4 | Unscrew nuts (4). | ||
| 5 | Take fender liner (1) out of the rear fender | ||
| 6 | Install in the reverse order |
