Removing and installing wiper system - AR82.30-P-6400R: Notes
MODEL 230.4
| Remove/install | |||
|---|---|---|---|
| Risk of injury in the form of trapping or crushing, or even severing of limbs, if caught in windshield wiper mechanism | Always remove ignition key when working on windshield wiper mechanism. | AS82.30-Z-0001-01A | |
| 1 | Remove water collector | AR83.25-P-1402R | |

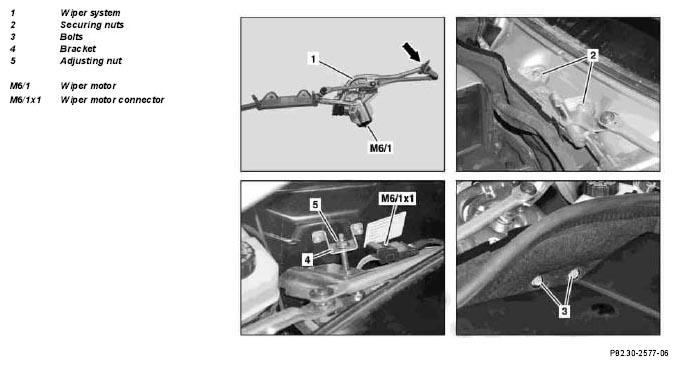

| 2 | Remove mounting nuts (2) and concealed mounting nut on wiper shaft (arrow) of wiper system (1) | *BA82.30-P-1006-01A | |
| 3 | Remove bolts (3) from bracket (4) of wiper system (1) | ||
| *BA82.30-P-1007-01A | |||
| 4 | Lift wiper system (1) and disconnect wiper motor connector (M6/1x1) from wiper motor (M6/1) | ||
| 5 | Move wiper system (1) to vertical position and remove | ||
| 6 | Install in the reverse order |
WINDSHIELD WIPER
| Number | Designation | Model 230 | |
|---|---|---|---|
| BA82.30-P-1006-01A | Nut/screw, wiper system to body | Nm | 19 |
| BA82.30-P-1007-01A | Nut/screw, wiper system to partition wall | Nm | 10 |
