Remove/install water collector - AR83.25-P-1402R

MODEL 230.4

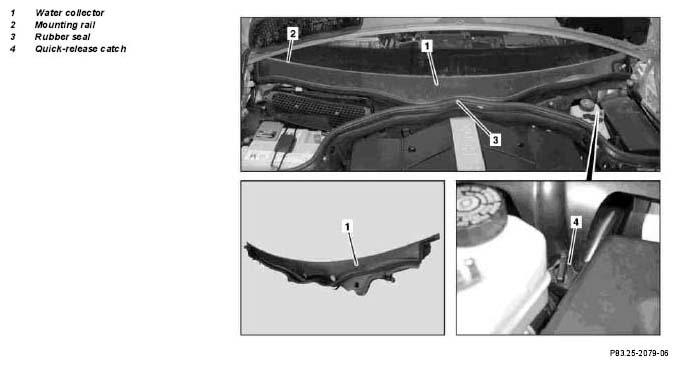

Fig 1: Identifying Water Collector Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove wiper arms		AR82.30-P-6100R
2	Release rubber seal (3) in area of water collector (1)
3	Unhook quick-release coupling (4) behind expansion reservoir
4	Unclip water collector (1) out of mounting rail (2) and remove
5	Install in the reverse order
