Retrofit illuminated door sill molding - AZ82.20-P-0001SXA

MODEL 221.0## 1# except CODE (Z07) Top protection

MODEL 221.1## 1# except CODE (Z07) Top protection

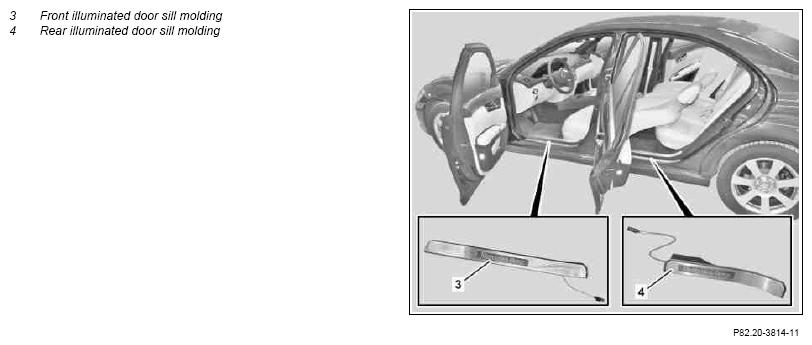

Fig 1: Identifying Illuminated Door Sill Moldings

Courtesy of MERCEDES-BENZ USA

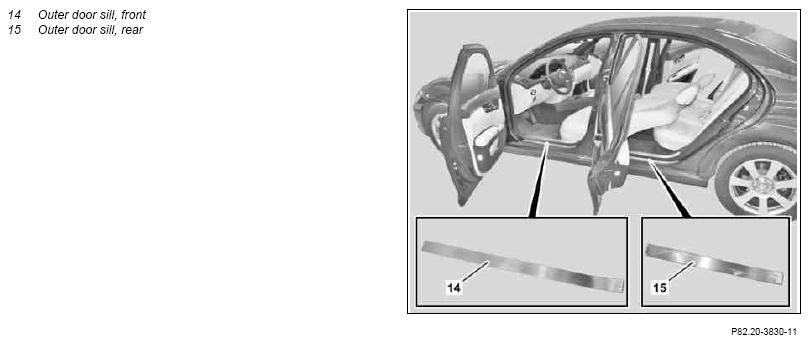

Fig 2: Identifying Outer Door Sills

Courtesy of MERCEDES-BENZ USA

	Remove
	Risk of death  caused by contact with parts conducting high voltages.	Do not come into contact with parts that are under high voltage. Persons who wear electronic implants (e.g. heart pacemakers) must not  perform any work on such components.	AS00.00-Z-0020-01A
1	Remove trim in trunk	Model 221.1 without  CODE (Z07) Top protection. It is not necessary to remove the left lining in the trunk.	AR68.30-P-4600SX
2	Disconnect rear SAM control unit with fuse and relay module and pull backwards	Do not disconnect electrical lines.	AR54.21-P-1258SX
3	Disconnect on-board electrical system battery	Vehicles up to 1.6.08 without  code (809) Model year 2009. Do not disconnect electrical lines.	AR54.10-P-0009SX
4	Remove rear seat cushion	Model 221.0/1 with  code (223) Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints, outer rear seat cushions, Model 221.1 with  code (224) Individual rear seat system design and without  code (Z07) Top protection	AR91.12-P-1020SX
		Model 221.0/1 without  code (223) Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints, Model 221.1 without  code (224) Individual rear seat system design	AR91.12-P-1020SY
		Model 221.0/1 with  code (223) Rear bench seat with electrically adjustable outer seats, lumbar supports as well as pneumatically adjustable head restraints, center rear seat cushion, Model 221.1 with  code (224) Individual rear seat system design, center rear seat cushion	AR91.12-P-1020SZ
5	Remove rear seat backrest	Model 221.0/1 with  code (223) Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints, Model 221.1 with  code (224) Individual rear seat system design and without  code (Z07) Top protection.	AR91.12-P-1620SX
		Model 221.0/1 without  code (223) Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints, Model 221.1 without  code (224) Individual rear seat system design	AR91.12-P-1620SY
6	Remove right backrest side paneling	Only on vehicles with  code (223) Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints.
7	Remove insulation mat under rear seat
8	Remove inner door sill moldings	Model 221.1 without  CODE (Z07) Top protection. The inner door sill moldings are discontinued parts.	AR68.30-P-4100SX
9	Loosen B-pillar trim at bottom	The top B-pillar paneling and the belt end fittings at the front seats do not have to be removed.	AR68.30-P-4700SX
	Install
10	Retrofit wiring harness for illuminated door sills		AZ82.20-P-0001-04SXA
11	Install remaining parts	Replace the non-illuminated door sill moldings with the front illuminated door sill moldings (3) and the rear illuminated door sill moldings (4). Wrap felt tape around connectors of front illuminated door sill moldings (3) and rear illuminated door sill moldings (4) and route below floor covering.
12	Retrofit outer door sills		AZ68.30-P-0005-01SXA
		Cleaner	*BR00.45-Z-1025-04A
13	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach "Illuminated door sill moldings retrofitted as per AZ82.20-P-0001SXA " note under field organization texts to DG 82.
14	Carry out function check	The front illuminated door sill moldings (3) or rear illuminated door sill moldings (4) are activated for approx. 5 min by opening the corresponding door.
