Retrofit outer door sill molding - AZ68.30-P-0005-01SXA

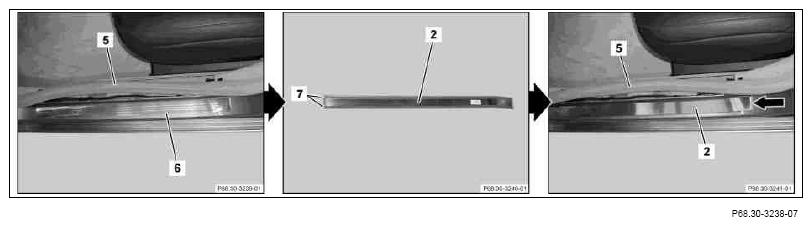

Fig 1: Identifying Outer Door Sill Molding Components

Courtesy of MERCEDES-BENZ USA

The following steps are shown on the left side of the vehicle. Installation on the right side of the vehicle is performed correspondingly.

1. Detach edge guard (5) in area of front door sill.
2. Clean surface of standard outer door front sill (6) with cleaning agent.

   Surface on standard outer front door sill molding (6) must be dry, free of dust and grease. This helps to prevent adhesion problems.

   Observe manufacturers instructions.

3. Remove carrier foils (7) on adhesive strips from rear of accessory outer front door sill (2).
4. Position outer accessory door sill (2) at rear edge (arrow) on standard outer door front sill (6) and glue on.

   Uniformly press accessory outer rear door sill molding (2) to standard outer front door sill molding (6).

5. Fasten edge guard (5) in area of door sill molding.

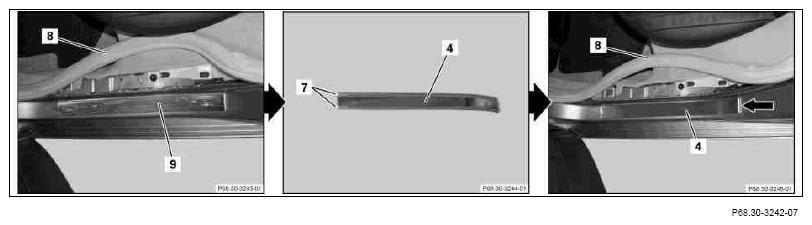

   Fig 2: Installing Rear Outer Accessory Door Sill

   Courtesy of MERCEDES-BENZ USA
6. Detach edge guard (8) in area of rear door sill.
7. Clean surface of standard rear outer door sill (9) with cleaning agent.

   Surface on standard outer rear door sill molding (9) must be dry, free of dust and grease. This helps to prevent adhesion problems.

8. Remove carrier foils (7) on adhesive strips from rear of accessory outer rear door sill molding (4).
9. Position rear outer accessory door sill (4) at rear edge (arrow) on standard outer door rear door sill (9) and glue on.

   Uniformly press accessory outer rear door sill molding (4) to standard outer rear door sill molding (9).

10. Fasten edge guard (8) in area of door sill molding.
