Preparations for distance and comparison measurements - AR40.30-P-0401GZ

MODEL 164, 251

Shown on model 164.1

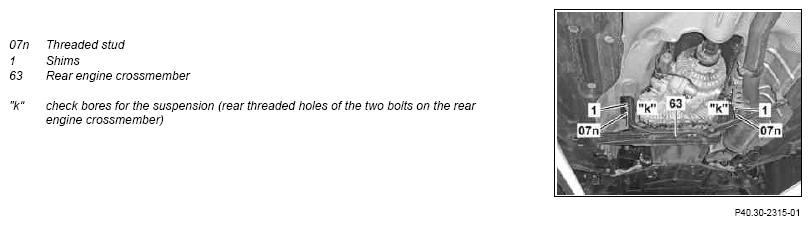

Fig 1: Checking Bores For Suspension - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

Shown on model 164.1

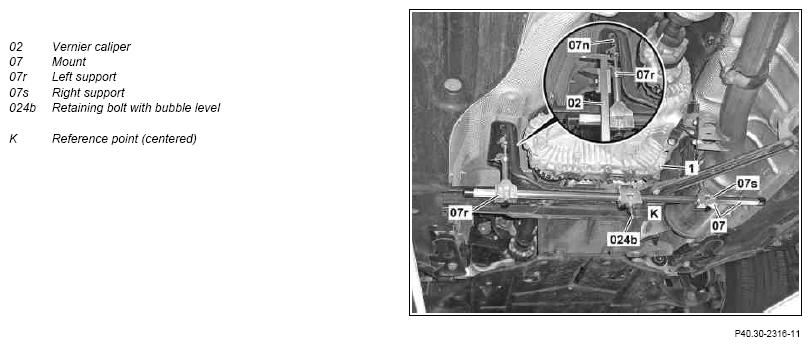

Fig 2: Checking Bores For Suspension - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

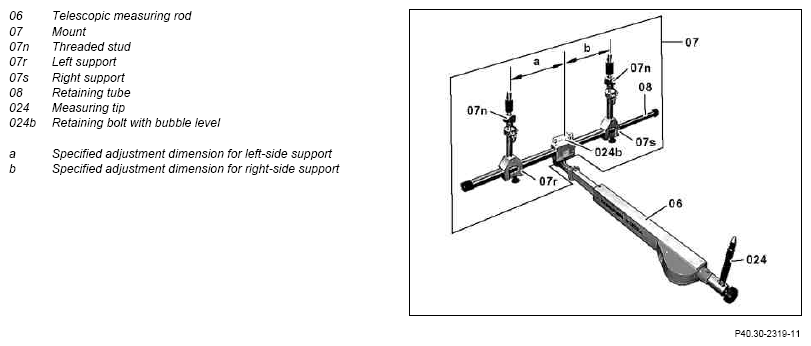

Fig 3: Identifying Telescopic Measuring Rod

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

7.11.06

Bolt, rear engine crossmember to body

*BA22.10-P-1005-03G

	Removing
1	Align the vehicle	Align the vehicle horizontally in the longitudinal direction by loading with weights as appropriate. Measure vehicle inclination across the door sills, e.g. using a spirit level
2.1	Detach lower engine compartment paneling	Vehicles with gasoline engine
2.2	Remove bottom section of soundproofing	Vehicles with diesel engine
3.1	Remove trim on underfloor below the front rear axle carrier mount	Model 164: Only if the distance measurement and comparative measurement is carried out at the rear axle.
3.2	Remove trim on underfloor below the rear front axle carrier mount	Model 251: Only if the distance measurement and comparative measurement is carried out at the front axle.
4	Remove the two rear bolts on the rear engine crossmember (63)
5	Turn in threaded bolts (07n) of suspension (07) with shims (1)	Use washers (1), to ensure that the threaded stud (07n) fits correctly into the rear engine crossmember (63).
			Fig 4
6	Insert and adjust hanger (07)		AR40.30-P-0401-01GZ
			Fig 4
			Fig 8
7	Insert telescopic measuring rod (06) with connecting parts onto retaining bolt using bubble level (024b)	Use relevant measuring bolt and measuring tip (024) for the corresponding distance or comparison measurement.
			Fig 9
			Fig 5
			Fig 6
			Fig 7
	Measure
8	Carry out distance and comparison measurements on front and rear axles		AR40.30-P-0402GZ
	Install
9	Detach cradle (07) and threaded bolts (07n)		Fig 4
10	Screw in bolts of rear engine crossmember (63)	Model 164	*BA22.10-P-1005-03G
		Model 251	*BA22.10-P-1005-03F
11.1	Install trim on underfloor below the front rear axle carrier mount	Model 164: If the distance measurement and comparative measurement has been carried out at the rear axle.
11.2	Install trim on underfloor below the rear front axle carrier mount	Model 251: If the distance measurement and comparative measurement has been carried out at the rear axle.
12.1	Install lower engine compartment paneling	Vehicles with gasoline engine
12.2	Install bottom sections of soundproofing	Vehicles with diesel engine

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		Model 164
BA22.10-P-1005-03G	Bolt, rear engine crossmember to body	Nm	55

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		Model 251
BA22.10-P-1005-03F	Bolt, rear engine crossmember to body	Nm	55

Fig 4: Identifying Mount (170 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Telescopic Measuring Rod (124 589 01 19 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Telescopic Measuring Rod (124 589 02 19 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Set Of Measurement Fixtures (168 589 07 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying Retaining Tube (164 589 04 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 9: Identifying Connecting Pieces (124 589 08 63 00)

Courtesy of MERCEDES-BENZ USA
