Carry out distance and comparison measurements on front and rear axles - AR40.30-P-0402GZ

MODEL 164, 166, 251

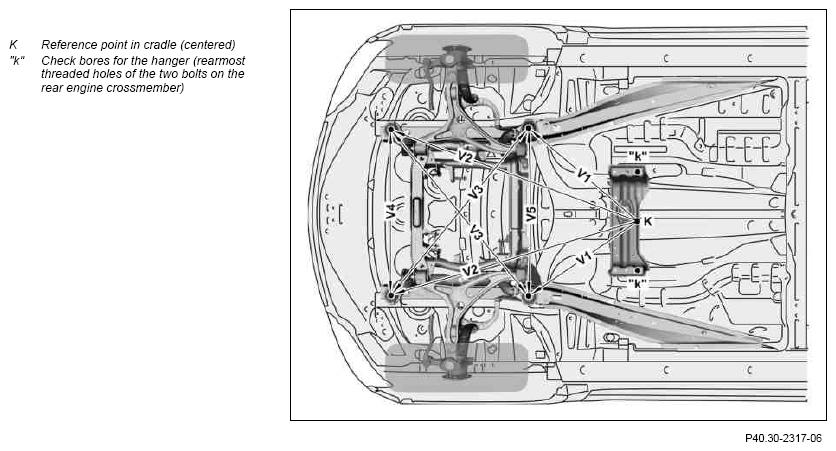

Front axle, shown on model 164.1

Fig 1: Identifying Front Axles Reference Points - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

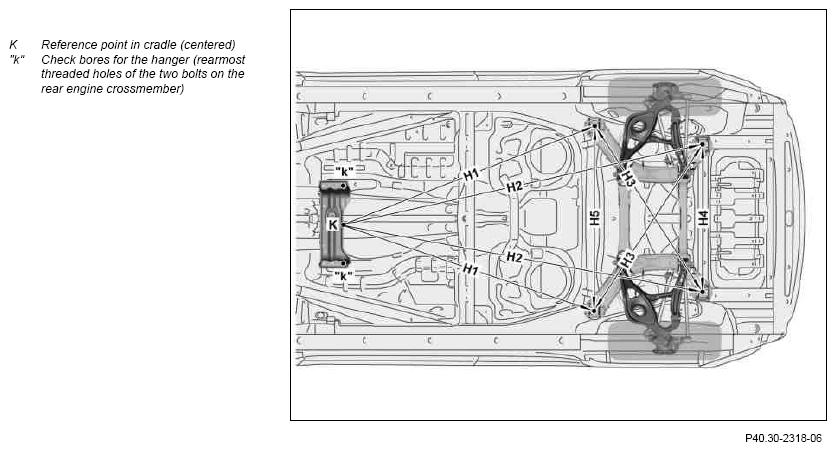

Rear axle, shown on model 164.1

Fig 2: Identifying Rear Axles Reference Points - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

	Measure
1	Perform preparations for distance and comparative measurements	Model 164, 251	AR40.30-P-0401GZ
1		Model 166	AR40.30-P-0401GQ
2.1	Carry out distance measurement on front axle	For front end damage
		Model 164, 166	AR40.30-P-0402-01GZ
		Test specifications for distance measurement of front axle	*BE40.30-P-1001-06I
			Figure
			Figure
			Figure
			Figure
			Figure
			Figure
		Model 251	AR40.30-P-0402-01RT
		Test specifications for distance measurement of front axle	*BE40.30-P-1001-06I
			Figure
			Figure
			Figure
			Figure
			Figure
		Depending on the accident damage, further individual measuring points can be defined for a comparative measurement.	Figure
2.2	Carry out distance measurement on rear axle	For rear end damage	AR40.30-P-0402-02GZ
		Test specifications for distance measurement of rear axle	*BE40.30-P-1001-05H
			Figure
			Figure
			Figure
			Figure
			Figure
		Depending on the accident damage, further individual measuring points can be defined for a comparative measurement.	Figure

TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENTS ON REAR AXLE

Number	Designation			Model 164.1	Model 164.8	Model 166.0
BE40.30-P-1001-05H	Dimension	H1	mm	1621 (±2)	1771 (±2)	1621 (±2)
		H2	mm	2257 (±2)	2413 (±2)	2257 (±2)
		H3	mm	1271 (±2)	1271 (±2)	1271 (±2)
		H4	mm	962 (±2)	962 (±2)	962 (±2)
		H5	mm	1168 (±2)	1168 (±2)	1168 (±2)
		See picture		AR40.30-P-0402-02GZ	AR40.30-P-0402-02GZ	AR40.30-P-0402-02GZ

TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENTS ON REAR AXLE

Number	Designation			Model 166.8	Model 251.0	Model 251.1
BE40.30-P-1001-05H	Dimension	H1	mm	1771 (±2)	1673 (±2)	1895 (±2)
		H2	mm	2413 (±2)	2313 (±2)	2542 (±2)
		H3	mm	1271 (±2)	1307 (±2)	1307 (±2)
		H4	mm	962 (±2)	1060 (±2)	1060 (±2)
		H5	mm	1168 (±2)	1168 (±2)	1168 (±2)
		See picture		AR40.30-P-0402-02GZ	AR40.30-P-0402-02GZ	AR40.30-P-0402-02GZ

TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENT ON FRONT AXLE

Number	Designation			Model 164	Model 166	Model 251
BE40.30-P-1001-06I	Dimension	V1	mm	723 (±2)	723 (±2)	722 (±2)
		V2	mm	1381 (±2)	1381 (±2)	1381 (±2)
		V3	mm	1136 (±2)	1136 (±2)	1136 (±2)
		V4	mm	876 (±2)	876 (±2)	876 (±2)
		V5	mm	866 (±2)	866 (±2)	866 (±2)
		See picture		AR40.30-P-0402-01GZ	AR40.30-P-0402-01GZ	AR40.30-P-0402-01GZ

Fig 3: Identifying Telescopic Measuring Rod (124 589 01 19 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Telescopic Measuring Rod (124 589 02 19 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Mount (170 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Set Of Measurement Fixtures (168 589 07 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Connecting Pieces (124 589 08 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying Holding Pipe (164 589 04 63 00)

Courtesy of MERCEDES-BENZ USA
