Checking rear axle camber - AR40.20-P-0331GZ

MODEL 164

Shown on left rear axle half

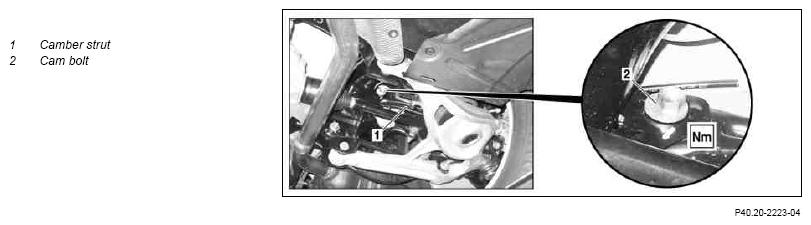

Fig 1: Checking Rear Axle Camber

Courtesy of MERCEDES-BENZ USA

	Checking
	Notes on self-locking nuts and bolts	All models	AH00.00-N-0001-01A
1	Perform wheel alignment check		AR40.20-P-0200GZ
2	Read specified value for camber from the specified value table and compare with the result of the wheel alignment	Camber at vehicle level
		Model 164.1/8 with code 489, 430	*BE40.20-P-1001-09Y
		Model 164.1/8 with code 489, without code 430	*BE40.20-P-1002-09Y
		Model 164.1 without code 489, 430	*BE40.20-P-1003-09Y
		Model 164.1/8 with code 489, without code 430	*BE40.20-P-1004-09Y
		Permissible rear axle camber between right and left vehicle side In the event of larger deviations in wheel camber the following causes may exist: Too great a difference in vehicle level between right and left-hand sides of vehicle. Deformation of the camber strut (1). Deformation of rear axle carrier, e.g. through accident damage. Deformation of the body, e.g. due to accident damage. Check for impermissible deformation on body. See: ↓	*BE40.20-P-1005-09Y
		Checking accident vehicles and vehicles possibly damaged in an accident	AR40.30-P-0400GZ
	Adjust camber
3	Loosen nut of cam bolt (2)	Only if the wheel camber has to be adjusted. Replace cam bolt (2), when bolt length greater than 65  millimeters and  threaded connection has been undone.
4	Adjust wheel camber via cam bolt (2)	Only if the wheel camber has to be adjusted.
5	Tighten nut of cam bolt (2)	Only if the wheel camber has to be adjusted.
			*BA35.20-P-1001-02F
	Checking
6	Perform wheel alignment check	Only if the camber was adjusted.	AR40.20-P-0200GZ

TEST VALUES FOR REAR AXLE CAMBER

Number	Designation			Model 164.1/8 with code 489, 430	Model 164.1/8 with code 489, without code 430
BE40.20-P-1001-09Y	Camber at vehicle level	-2.67°	∠°	-2° 31' (±7')	-
		-1.88°	∠°	-2° 17' (±7')	-
		-1.09°	∠°	-2° 04' (±7')	-
		-0.30°	∠°	-1° 51' (±7')	-
		-0.50°	∠°	-1° 38' (±7')	-
BE40.20-P-1002-09Y	Camber at vehicle level	-3.03°	∠°	-	-2° 31' (±7')
		-2.27°	∠°	-	-2° 17' (±7')
		-1.51°	∠°	-	-2° 04' (±7')
		-0.75°	∠°	-	-1° 51' (±7')
		+0.01°	∠°	-	-1° 38' (±7')
BE40.20-P-1003-09Y	Camber at vehicle level	-0.94°	∠°	-	-
		-0.18°	∠°	-	-
		+0.30°	∠°	-	-
		+0.58°	∠°	-	-
		+1.20°	∠°	-	-
		+1.34°	∠°	-	-
		+2.10°	∠°	-	-
		+2.11°	∠°	-	-
		+3.00°	∠°	-	-
		+3.91°	∠°	-	-
BE40.20-P-1004-09Y	Camber at vehicle level	-0.59°	∠°	-	-
		+0.20°	∠°	-	-
		+0.79°	∠°	-	-
		+0.99°	∠°	-	-
		+1.73°	∠°	-	-
		+1.78°	∠°	-	-
		+2.57°	∠°	-	-
		+2.67°	∠°	-	-
		+3.61°	∠°	-	-
		+4.55°	∠°	-	-
BE40.20-P-1005-09Y	Permissible rear axle camber between right and left vehicle side		∠°	30'	30'

TEST VALUES FOR REAR AXLE CAMBER

Number	Designation			Model 164 without code 489, 430	Model 164. 1/8 with code 489, without code 430
BE40.20-P-1001-09Y	Camber at vehicle level	-2.67°	∠°	-	-
		-1.88°	∠°	-	-
		-1.09°	∠°	-	-
		-0.30°	∠°	-	-
		-0.50°	∠°	-	-
BE40.20-P-1002-09Y	Camber at vehicle level	-3.03°	∠°	-	-
		-2.27°	∠°	-	-
		-1.51°	∠°	-	-
		-0.75°	∠°	-	-
		+0.01°	∠°	-	-
BE40.20-P-1003-09Y	Camber at vehicle level	-0.94°	∠°	-1° 54' (±7')	-
		-0.18°	∠°	-1° 41' (±7')	-
		+0.30°	∠°	-1° 34' (±7')	-
		+0.58°	∠°	-1° 29' (±7')	-
		+1.20°	∠°	-1° 21' (±7')	-
		+1.34°	∠°	-1° 18' (±7')	-
		+2.10°	∠°	-1° 06' (±7')	-
		+2.11°	∠°	-1° 07' (±7')	-
		+3.00°	∠°	-0° 55' (±7')	-
		+3.91°	∠°	-0° 43' (±7')	-
BE40.20-P-1004-09Y	Camber at vehicle level	-0.59°	∠°	-	-1° 55' (±7')
		+0.20°	∠°	-	-1° 43' (±7')
		+0.79°	∠°	-	-1° 34' (±7')
		+0.99°	∠°	-	-1° 31' (±7')
		+1.73°	∠°	-	-1° 20' (±7')
		+1.78°	∠°	-	-1° 19' (±7')
		+2.57°	∠°	-	-1° 08' (±7')
		+2.67°	∠°	-	-1° 07' (±7')
		+3.61°	∠°	-	-0° 54' (±7')
		+4.55°	∠°	-	-0° 43' (±7')
BE40.20-P-1005-09Y	Permissible rear axle camber between right and left vehicle side		∠°	30'	30'

CAMBER STRUT

Number	Designation		Model 164.1/8
BA35.20-P-1001-02F	Self-locking nut, camber strut to rear axle carrier.	Nm	93
