Check and adjust toe on rear axle - AR40.20-P-0332GZ

MODEL 164

Shown on left rear axle half

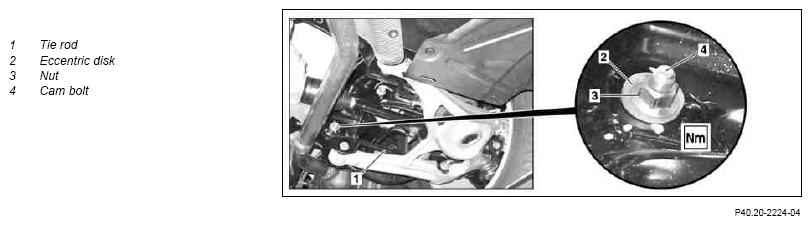

Fig 1: Identifying Tie Rod, Eccentric Disk, Cam Bolt, Nut
G10116553Courtesy of MERCEDES-BENZ USA
MODIFICATION NOTES

17.7.07 Permitted difference between right and left side of vehicle for rear-axle toe.   *BE40.20-P-1005-10L
INSPECT Checking
NOTES Notes on self-locking nuts and bolts All models AH00.00-N-0001-01A
1 Perform wheel alignment check; compare result with test values IMPORTANT If substantial deviations in the total toe are found, the cause may be one of the following:
  • Too great a difference in vehicle level between right and left-hand sides of vehicle.
  • Deformation of the tie rod (1).
  • Deformation of rear axle carrier, e.g. through accident damage.
  • Deformation of the body, e.g. due to accident damage.

Check for impermissible deformation on body. See: ↓		 AR40.20-P-0200GZ
Checking accident vehicles and vehicles possibly damaged in an accident AR40.30-P-0400GZ
    Total toe at vehicle level
Model 164 with code 489, without code 430 *BE40.20-P-1001-10L
Model 164 with code 489, with code 430 *BE40.20-P-1002-10L
Model 164 without code 489, without code 430 *BE40.20-P-1003-10L
Model 164 without code 489, with code 430 *BE40.20-P-1004-10L
Permitted difference between right and left side of vehicle for rear-axle toe *BE40.20-P-1005-10L
  Adjust toe
2 Loosen nut (3) IMPORTANT Only if the measurements are outside the tolerance.
3 Adjust toe via cam bolt (4) and eccentric disk (2) IMPORTANT Only if the measurements are outside the tolerance.
4 Tighten nut (3) IMPORTANT Only if the measurements are outside the tolerance.
TORQUE SPECIFICATION *BA35.20-P-1001-04F
INSPECT Checking
5 Perform wheel alignment check IMPORTANT Only if the toe was adjusted. AR40.20-P-0200GZ
INSPECTION VALUES FOR TOE-IN AT REAR AXLE

Number Designation Model 164 with code 489, without code 430 Model 164 with code 489, with code 430
BE40.20-P-1001-10L Total toe at vehicle level -3.03° ∠° +0° 33' (±7') -
-2.27° ∠° +0° 32' (±7') -
-1.51° ∠° +0° 31' (±7') -
-0.75° ∠° +0° 29' (±7') -
-0.01° ∠° +0° 28' (±7') -
BE40.20-P-1002-10L Total toe at vehicle level -2.67° ∠° - +0° 33' (±7')
-1.88° ∠° - +0° 32' (±7')
-1.09° ∠° - +0° 31' (±7')
-0.30° ∠° - +0° 29' (±7')
+0.50° ∠° - +0° 28' (±7')
BE40.20-P-1005-10L Permissible difference in rear axle toe between right and left sides of the vehicle ∠° 7' 7'
INSPECTION VALUES FOR TOE-IN AT REAR AXLE

Number Designation Model 164 without code 489, without code 430 Model 164 without code 489, with code 430
BE40.20-P-1003-10L Total toe at vehicle level -0.59° ∠° - +0° 30' (±7')
+0.80° ∠° - +0° 27' (±7')
+1.98° ∠° - +0° 24' (±7')
+3.17° ∠° - +0° 22' (±7')
+4.55° ∠° - +0° 19' (±7')
BE40.20-P-1004-10L Total toe at vehicle level -0.94° ∠° +0° 30' (±7') -
+0.20° ∠° +0° 27' (±7') -
+1.44° ∠° +0° 24' (±7') -
+2.58° ∠° +0° 22' (±7') -
+3.91° ∠° +0° 19' (±7') -
BE40.20-P-1005-10L Permissible difference in rear axle toe between right and left sides of the vehicle ∠° 7' 7'
TIE ROD

Number Designation Model 164.1/8
BA35.20-P-1001-04F Self-locking nut, tie rod to rear axle carrier Nm 93
