Check and adjust camber and caster at front axle - AR40.20-P-0322GZ

MODEL 164

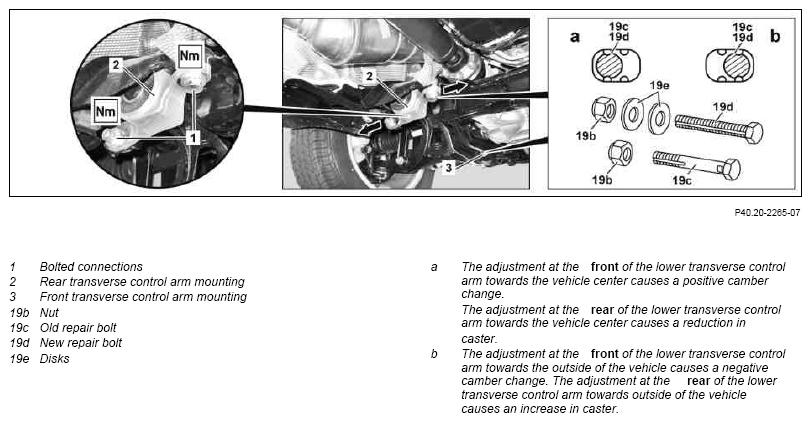

Fig 1: Adjusting Front Axle Camber And Caster
G10116547Courtesy of MERCEDES-BENZ USA

Shown on left front axle half

MODIFICATION NOTES

29.6.06 Bolt, lower transverse control arm at inside rear to front axle carrier   *BA33.20-P-1005-01J
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
IMPORTANT The caster angle at the front axle can only be changed by adjusting the wheel camber angle
HIGH PRESSURE TEST Measure
1 Measure vehicle level at the front and rear axle AR40.20-P-0301GZ
2 Carrying initial measurement of wheel alignment AR40.20-P-0200GZ
INSPECT Checking
3 Read off specified values of wheel camber angle and caster angle by means of the specified value tables and compare with the result of wheel alignment Check caster and assign tabular value: ↓
On vehicles with offroad package, code 430. AR40.20-P-0322-03GZ
On vehicles without offroad package, code 430.
Camber at vehicle level		 AR40.20-P-0322-03GZA
Model 164.1/8 with code 489, except model 164.120/121/156 *BE40.20-P-1001-13L
Model 164.1/8 without code 489, with code 494, except model 164.120/121/156 *BE40.20-P-1002-13L
Model 164.1/8 without code 489, without code 494, except model 164.120/121/156 *BE40.20-P-1003-13L
Model 164.120/121/156 *BE40.20-P-1004-13L
Permissible difference in front axle camber between right and left sides of the vehicle *BE40.20-P-1005-13L
IMPORTANT The following causes may exist in the event of larger deviations in wheel camber or caster:
  • Too large a difference in vehicle level between the left and right side of the vehicle,
  • Deformation of steering parts or tie rods,
  • Deformation of front axle carrier or of chassis parts, e.g. through damage due to an accident,
  • Deformation of the body, e.g. due to accident damage.

Check for impermissible deformation on body. See: ↓		 AR40.20-P-0200GZ
Checking accident vehicles and vehicles possibly damaged in an accident AR40.30-P-0400GZ
Adjust
4 Loosen bolted connections (1) on transverse control arm mountings (2, 3) IMPORTANT Only if it is necessary to correct the camber angle and/or caster angle.
5 Remove bolts of stabilizer bar bracket to axle/engine subframe and swivel the stabilizer bar downwards IMPORTANT Only if the wheel camber angle at the front transverse control arm mounting.
IMPORTANT Remove stabilizer bar carefully as it is pre-loaded
TORQUE SPECIFICATION *BA32.35-P-1001-01B
6 Install repair bolt (19c, 19d) on front or rear transverse control arm mounting IMPORTANT Only if the wheel camber angle or caster cannot  be adjusted.
Screw on nut (19b) until it abuts, but do not tighten yet, so that the rubber mount of the lower transverse control arm can twist when the vehicle is rocked to settle the suspension.
IMPORTANT On front axle carriers with lock tabs on both sides of the front transverse control arm mounting, only the new repair bolt (19d) may be used.
The new repair bolt (19d) for the rear transverse control arm mounting can be inserted from above or from below.
IMPORTANT The old repair bolt (19c) can be replaced with the new repair bolt (19d).
Only use the new repair bolt (19d) with washers (19e).
7 Tighten nut (19b) IMPORTANT The repair bolt (19c, 19d) must not turn after fixing. When tightening the nut (19b) counterhold the repair bolt (19c, 19d) otherwise the lock tabs in the front axle carrier may be damaged.
8 Tighten bolted connections (1) of transverse control arm mountings (2, 3) IMPORTANT Only if it is necessary to correct the camber angle and/or caster angle.
TORQUE SPECIFICATION *BA33.20-P-1004-01J
TORQUE SPECIFICATION *BA33.20-P-1005-01J
TORQUE SPECIFICATION *BA33.20-P-1007-01J
HIGH PRESSURE TEST Measure
9 Carrying final measurement of wheel alignment IMPORTANT Only if the camber was adjusted. AR40.20-P-0200GZ
INSPECTION AND ADJUSTING VALUES FOR FRONT-AXLE CAMBER

Number Designation Model 164.1/8 with code 489, except model 164.120/121/156 Model 164.1/8 without code 489, with code 494, except model 164.120/121/156
BE40.20-P-1001-13L Camber at vehicle level +7.21° ∠° -0° 53' (±30') -
+6.71° ∠° -1° 00' (±30') -
+6.20° ∠° -1° 07' (±30') -
+5.70° ∠° -1° 15' (±30') -
+5.20° ∠° -1° 20' (±30') -
+4.70° ∠° -1° 30' (±30') -
+4.19° ∠° -1° 39' (±30') -
+3.69° ∠° -1° 47' (±30') -
+3.19° ∠° -1° 56' (±30') -
BE40.20-P-1002-13L Camber at vehicle level +10.98° ∠° - -0° 08' (±30')
+10.48° ∠° - -0° 14' (±30')
+9.97° ∠° - -0° 19' (±30')
+9.47° ∠° - -0° 25' (±30')
+8.97° ∠° - -0° 30' (±30')
+8.47° ∠° - -0° 37' (±30')
+7.69° ∠° - -0° 43' (±30')
+7.46° ∠° - -0° 50' (±30')
+6.96° ∠° - -0° 56' (±30')
BE40.20-P-1003-13L Camber at vehicle level +11.73° ∠° - -
+11.23° ∠° - -
+10.73° ∠° - -
+10.23° ∠° - -
+9.72° ∠° - -
+9.22° ∠° - -
+8.72° ∠° - -
+8.21° ∠° - -
+7.71° ∠° - -
BE40.20-P-1004-13L Camber at vehicle level +9.09° ∠° - -
+8.59° ∠° - -
+8.09° ∠° - -
+7.59° ∠° - -
+7.08° ∠° - -
+6.58° ∠° - -
+6.08° ∠° - -
+5.58° ∠° - -
+5.07° ∠° - -
BE40.20-P-1005-13L Permissible difference in front axle camber between right and left sides of the vehicle ∠° 20' 20'
INSPECTION AND ADJUSTING VALUES FOR FRONT-AXLE CAMBER

Number Designation Model 164.1/8 without code 489, without code 494, except model 164.120/121/156 Model 164.120/121/156
BE40.20-P-1001-13L Camber at vehicle level +7.21° ∠° - -
+6.71° ∠° - -
+6.20° ∠° - -
+5.70° ∠° - -
+5.20° ∠° - -
+4.70° ∠° - -
+4.19° ∠° - -
+3.69° ∠° - -
+3.19° ∠° - -
BE40.20-P-1002-13L Camber at vehicle level +10.98° ∠° - -
+10.48° ∠° - -
+9.97° ∠° - -
+9.47° ∠° - -
+8.97° ∠° - -
+8.47° ∠° - -
+7.69° ∠° - -
+7.46° ∠° - -
+6.96° ∠° - -
BE40.20-P-1003-13L Camber at vehicle level +11.73° ∠° -0° 01' (±30') -
+11.23° ∠° -0° 06' (±30') -
+10.73° ∠° -0° 11' (±30') -
+10.23° ∠° -0° 16' (±30') -
+9.72° ∠° -0° 22' (±30') -
+9.22° ∠° -0° 27' (±30') -
+8.72° ∠° -0° 33' (±30') -
+8.21° ∠° -0° 40' (±30') -
+7.71° ∠° -0° 46' (±30') -
BE40.20-P-1004-13L Camber at vehicle level +9.09° ∠° - -0° 29' (±30')
+8.59° ∠° - -0° 35' (±30')
+8.09° ∠° - -0° 41' (±30')
+7.59° ∠° - -0° 48' (±30')
+7.08° ∠° - -0° 55' (±30')
+6.58° ∠° - -1° 02' (±30')
+6.08° ∠° - -1° 09' (±30')
+5.58° ∠° - -1° 17' (±30')
+5.07° ∠° - -1° 24' (±30')
BE40.20-P-1005-13L Permissible difference in front axle camber between right and left sides of the vehicle ∠° 20' 20'
ANTI-ROLL BAR

Number Designation Model 164.1/8
BA32.35-P-1001-01B Bolt, stabilizer bar bracket to axle/engine subframe Nm 50
WHEEL CONTROL, HUB

Number Designation Model 164.1/8
BA33.20-P-1004-01J Self-locking nut, lower front transverse control arm to front axle carrier Nm 270
BA33.20-P-1005-01J Bolt, lower transverse control arm at inside rear to front axle carrier Nm 220
BA33.20-P-1007-01J Bolt, lower transverse control arm at outside rear to front axle carrier Nm 180
