Remove/install front axle shafts - AR33.30-P-0620GZ

MODEL 164

MODIFICATION NOTES

25.4.14 "Install a new retaining ring (14)" added. Operation step 17

Shown on right side of MODEL 164 with CODE 489 (AIRmatic (air suspension with level adjustment and adaptive damping system ADS))

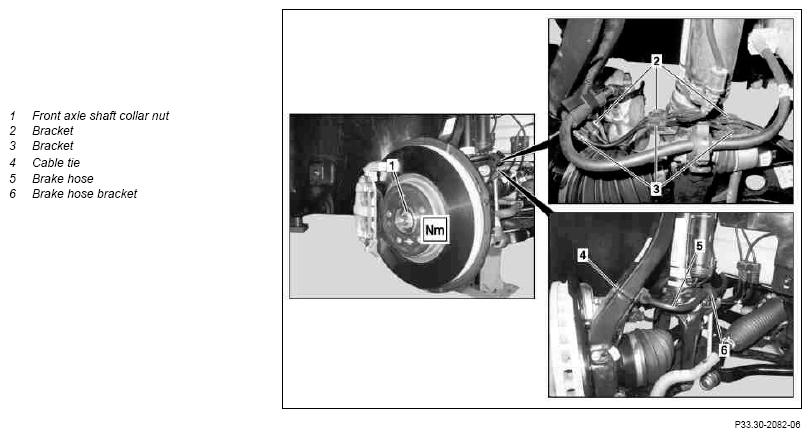

Fig 1: Identifying Front Axle Shafts Remove/Install Components - Shown On Model 164 With Code 489
G10116342Courtesy of MERCEDES-BENZ USA

Shown on right side of MODEL 164 with CODE 489 (AIRmatic (air suspension with level adjustment and adaptive damping system ADS))

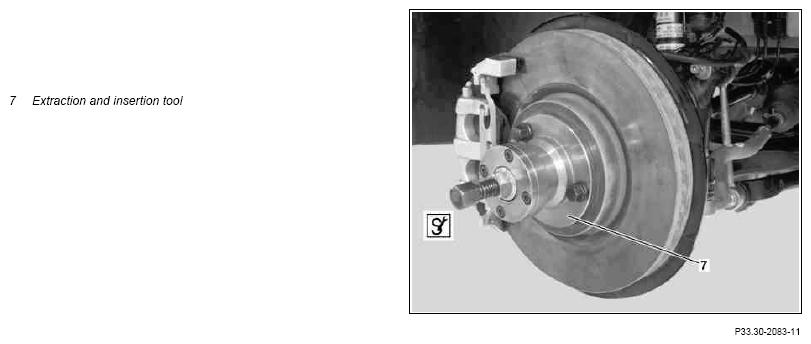

Fig 2: Identifying Front Axle Shafts Remove/Install Components - Shown On Model 164 With Code 489
G10116343Courtesy of MERCEDES-BENZ USA

Shown on right side of MODEL 164 with CODE 489 (AIRmatic (air suspension with level adjustment and adaptive damping system ADS))

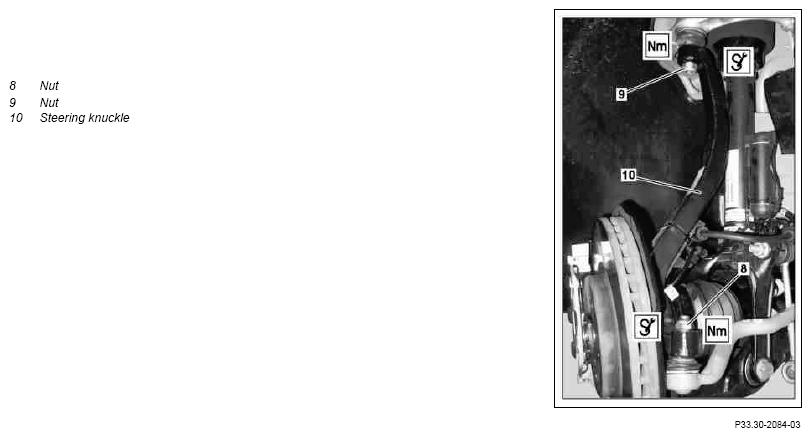

Fig 3: Identifying Front Axle Shafts Remove/Install Components - Shown On Model 164 With Code 489
G10116344Courtesy of MERCEDES-BENZ USA

Shown on right side of MODEL 164 with CODE 489 (AIRmatic (air suspension with level adjustment and adaptive damping system ADS))

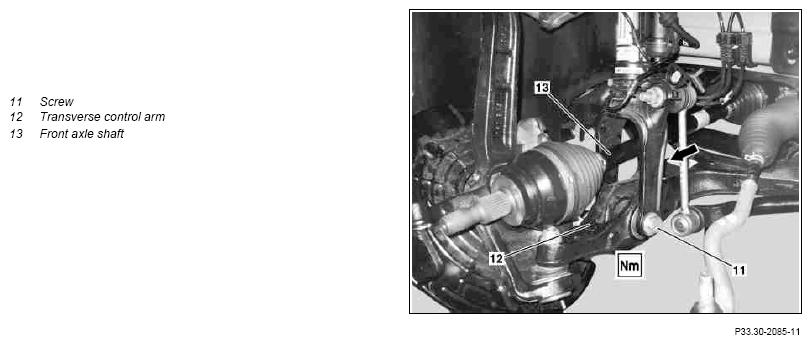

Fig 4: Identifying Front Axle Shafts Remove/Install Components - Shown On Model 164 With Code 489
G10116345Courtesy of MERCEDES-BENZ USA

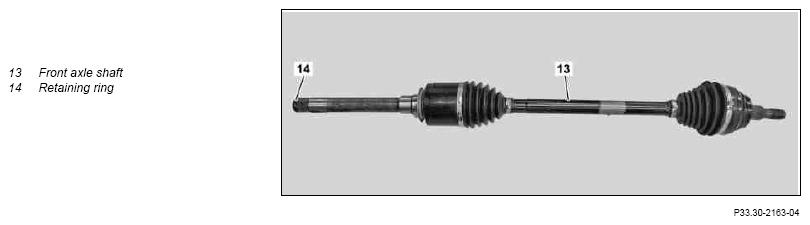

Fig 5: Identifying Front Axle Shafts Remove/Install Components
G10116346DANGERDANGERDANGERNOTESIMPORTANTREMOVINGINSTALLINGIMPORTANTREFER TO SELF-DIAGNOSTIC SYSTEMSREFER TO MAINTENANCEIMPORTANTTORQUE SPECIFICATIONIMPORTANTIMPORTANTIMPORTANTINSTALLATION IMPORTANTINSTALLATION IMPORTANTSPECIAL TOOLIMPORTANTTORQUE SPECIFICATIONSPECIAL TOOLSPECIAL TOOLTORQUE SPECIFICATIONSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLTORQUE SPECIFICATIONINSTALLATION IMPORTANTIMPORTANTNOTESCourtesy of MERCEDES-BENZ USA
DANGER Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of the mechanism when the components are moving. AS00.00-Z-0009-01A
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of death  when touching components on vehicles with high-voltage on-board electrical system Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems. AS54.00-Z-0001-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
IMPORTANT Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Switch off ignition and remove transmitter key
2 Raise vehicle   AR00.60-P-1000GZ
IMPORTANT Raise vehicle until wheels are free of ground.
3 Deflate AIRmatic system using STAR DIAGNOSIS MODEL 164
with CODE 489 (Airmatic (air suspension with level adjustment and adaptive damping system ADS))

REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
4 Remove front wheels
REFER TO MAINTENANCE     AP40.10-P-4050Z
5 Unscrew collar nut on front axle shaft (1) IMPORTANT For counterholding purposes an assistant must apply the brake.
TORQUE SPECIFICATION Collar nut, front axle shaft to front axle shaft flange *BA33.30-P-1001-02D
6 Raise vehicle   AR00.60-P-1000GZ
IMPORTANT Raise vehicle to full height.
7.1 Detach lower engine compartment paneling MODEL 164 with ENGINE 113, 156, 272, 273
AR61.20-P-1105GZ
7.2 Remove soundproofing MODEL 164 with ENGINE 629, 642
AR94.30-P-5300GZ
7.3 Remove underride guard MODEL 164
with CODE 430 (Offroad package)

AR88.30-P-0010GZ
8 Lower vehicle   AR00.60-P-1000GZ
IMPORTANT Lower half way.
9 Remove electrical lines from bracket (2) and bracket (3) IMPORTANT Do not damage electrical leads.
10 Cut off cable ties (4) INSTALLATION IMPORTANT Pay attention to installation position.
INSTALLATION IMPORTANT Use a new cable tie (4).

SPECIAL TOOL Pliers Figure
11 Remove brake hose (5) from brake hose bracket (6) IMPORTANT Do not damage the brake hose (5).
12 Unscrew nut (8) and detach tie rod from steering knuckle (10) TORQUE SPECIFICATION Self-locking nut, tie rod to steering knuckle *BA46.40-P-1002-01K
SPECIAL TOOL Thrust piece Figure
SPECIAL TOOL Puller Figure
13 Unscrew nut (9) and detach steering knuckle (10) from upper transverse control arm TORQUE SPECIFICATION Self-locking nut, upper ball joint out of upper transverse control arm to steering knuckle *BA33.20-P-1001-01J
SPECIAL TOOL Puller Figure
SPECIAL TOOL Thrust piece Figure
14 Mount extraction and insertion tool (7) and undo front axle shaft (13) from front axle shaft flange SPECIAL TOOL Extraction and insertion tool Figure
15 Swivel steering knuckle (10) out of working area
16 Unscrew nut from front shock absorber, pull out bolt (11) and detach front shock absorber from transverse control arm (12) TORQUE SPECIFICATION Self-locking nut, shock absorber to wishbone *BA32.25-P-1002-01G
17 Pull front axle shaft (13) out of front axle gear (arrow) and remove INSTALLATION IMPORTANT Install a new retaining ring (14).
IMPORTANT Collect any oil which runs out.

18 Install in the reverse order
19 Fill AIRmatic system using STAR DIAGNOSIS NOTES
The wheels must not be in contact with the ground during the filling procedure.
The air suspension bellows in the spring element will otherwise be destroyed if filling is performed in the compressed state.

20 Check AIRmatic for leaks MODEL 164
with CODE 489 (Airmatic (air suspension with level adjustment and adaptive damping system ADS))

AR32.22-P-8100GZ
FRONT AXLE SHOCK ABSORBER

Number Designation Model 164.1/8
BA32.25-P-1002-01G Self-locking nut, shock absorber to wishbone Nm 265
WHEEL CONTROL, HUB

Number Designation MODEL 164.1/8
BA33.20-P-1001-01J Self-locking nut, upper ball joint out of upper transverse control arm to steering knuckle Stage 1 Nm 20
Stage 2 ∠° 90
FRONT AXLE SHAFT

Number Designation MODEL 164.1 MODEL 164.8
BA33.30-P-1001-02D Collar nut, front axle shaft to front axle shaft flange Stage 1 Nm 250 260
Stage 2 ∠° 45 45
TIE ROD

Number Designation MODEL 164.1/8
BA46.40-P-1002-01K Self-locking nut, tie rod to steering knuckle Stage 1 Nm 45
Stage 2 ∠° 90
Fig 6: Identifying Thrust Piece (140 589 00 63 00)
G07279191Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Puller (140 589 09 33 00)
G07472995Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Extraction And Insertion Tool (210 589 03 43 00)
G07274463Courtesy of MERCEDES-BENZ USA
Fig 9: Identifying Puller (601 589 04 33 00)
G07274421Courtesy of MERCEDES-BENZ USA
Fig 10: Identifying Pliers (164 589 01 37 00)
G09982323Courtesy of MERCEDES-BENZ USA
