Remove/install engine charge air channel downstream of charge air cooler - AR09.41-P-8624GZB
ENGINES 642 in MODEL 164, 251
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Removes strut tower brace | Model 164.8 only |
AR62.30-P-2500GY |
| 2 | Remove engine trim panel | Model 164 | AR01.10-P-2405GZB |
| Model 251 | AR01.10-P-2405RTB | ||
| 3 | Remove engine charge air hose downstream of charge air cooler | AR09.41-P-8625GZB | |
| 4 | Disconnect electrical connector at charge air temperature sensor (B17/8) | ||
| 5 | Remove right air filter housing | Model 164 | AR09.10-P-1150GZC |
| Model 251 | AR09.10-P-1150RTC | ||

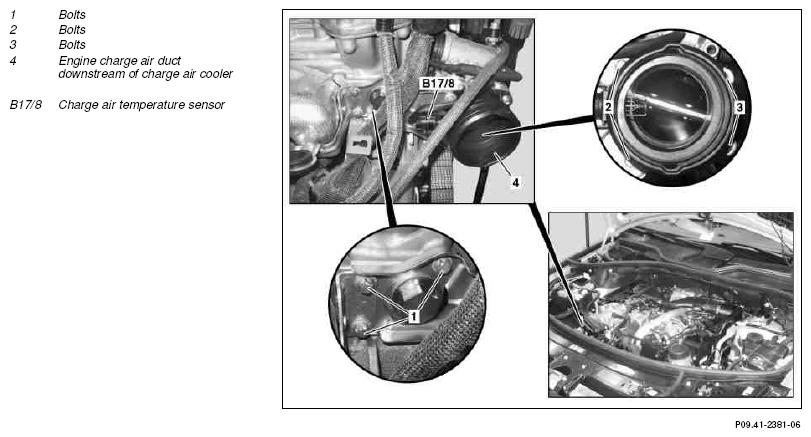

| 6 | Remove bolts (1) of the bracket at the cylinder head | *BA09.41-P-1006-01J | |
| 7 | Remove bolts (2) at engine charge air duct downstream of charge air cooler (4) | *BA09.41-P-1005-01J | |
| 8 | Remove bolts (3) at engine charge air duct downstream of charge air cooler (4) | *BA09.41-P-1005-01J | |
| 9 | Remove engine charge air channel downstream of charge air cooler (4) | ||
| 10 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Test run engine and check connections for leaks |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 642 | |
|---|---|---|---|
| BA09.41-P-1005-01J | Engine charge air duct downstream of charge air cooler to throttle valve actuator | Nm | 9 |
| BA09.41-P-1006-01J | Bracket, throttle valve actuator to cylinder head | Nm | 9 |
