Remove/install |
|
|
 |
Risk of death
caused by vehicle slipping or toppling off of the lifting platform. |
Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. |
AS00.00-Z-0010-01A |
 |
Notes on repairs to brake system |
All models |
AH42.00-P-0003-01A |
|
Notes on self-locking nuts and bolts |
All models |
AH00.00-N-0001-01A |
| 1 |
Release parking brake |
|
|
| 2 |
Lift/jack up vehicle |
|
AR00.60-P-1000GZ |
| 3 |
Remove rear wheels |
|
|
 |
Remove/install wheels, rotate if necessary |
|
AP40.10-P-4050Z |
| 4 |
Remove left brake disk or right brake disk from rear axle |
|
AR42.10-P-0220GZ |
| 5 |

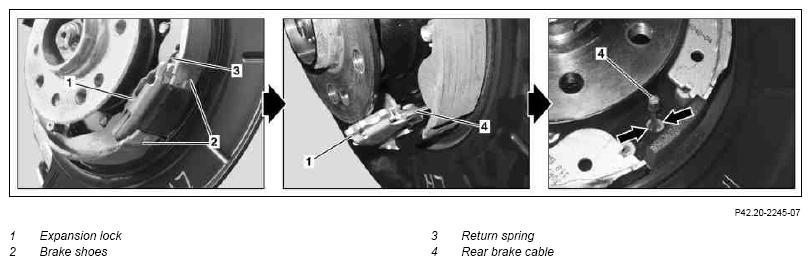

Unhook retracting spring (3) using removal and installation tool |
Removal and installation tool |
Fig 3 |
| 6 |
Remove expansion lock (1) |
To do so, open the expansion lock (1) and push out of the rear brake cable (4).
Apply light coating of grease to slide surfaces on expansion lock (1). |
|
| Hot lubricating paste |
*BR00.45-Z-1005-06A |
| 7 |

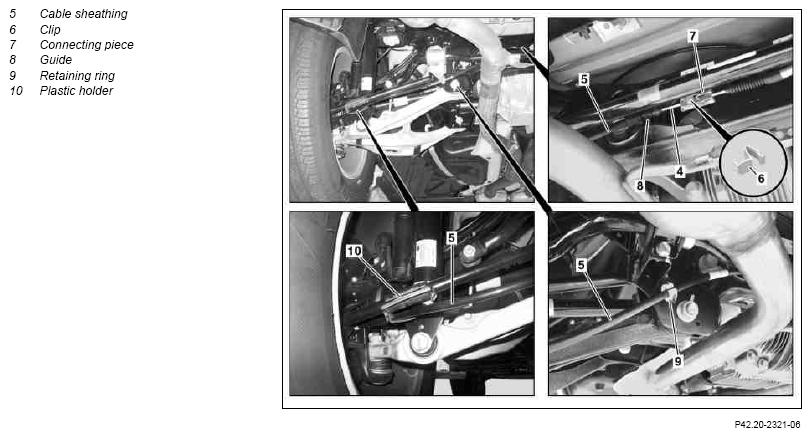

Unclip rear brake cable (4) from wheel carrier (arrows) |
|
|
| 8 |
Unclip clip (6) from connection piece (7) |
|
|
| 9 |
Unclip rear brake cable (4) from connection piece (7) |
|
|
| 10 |
Unclip guide (8) |
To unclip, squeeze the lock tabs on the guide (8) together. |
|
| 11 |
Squeeze retaining ring (9) together and unclip from bracket together with cable sheathing (5) |
|
|
| 12 |
Open plastic holder (10) and remove rear brake cable (4) together with cable sheathing (5) |
The distance from the plastic holder (10) to the outer tie rod end must be 76 mm and the cable sheathing (5) must not rub against the plastic holder (10) when the brake is in its released state, otherwise the plastic holder (10) could open by itself when the brake is applied or released. |
|
| 13 |
Install in the reverse order |
|
|
| 14 |
Adjust parking brake |
|
AR42.20-P-0540GZ |
