Remove/install electronic stability program (ESP) hydraulic unit - AR42.45-P-0817GZ

MODEL 164

Fig 1: Identifying Electronic Stability Program Hydraulic Unit Remove/Install Component (1 Of 2)

Courtesy of MERCEDES-BENZ USA

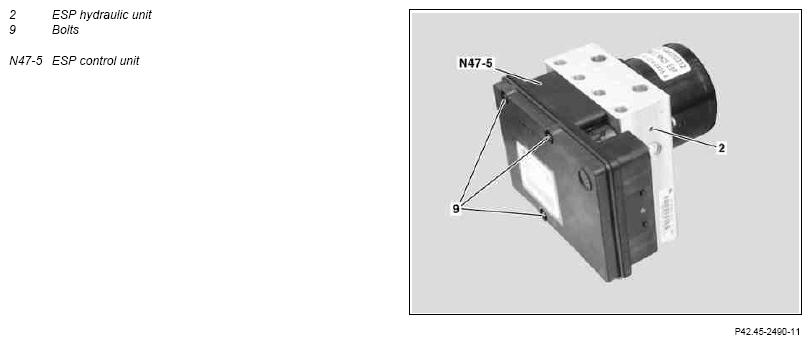

Fig 2: Identifying Electronic Stability Program Hydraulic Unit Remove/Install Component (2 Of 2)

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

10.2.10

Install adhesive pad on bracket, added

Step 8

	Remove/install
	Risk of poisoning  caused by swallowing brake fluid. Risk of injury  caused by brake fluid coming into contact with skin and eyes.	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
1	Turn key in ignition lock to position "0"	On vehicles with Keyless-Go, code 889: Press keyless go start/stop button repeatedly until ignition is switched off
2	Open engine hood and raise to vertical position		AR88.40-P-1000GZ
3	Pull off intake air duct (1)
4	Clean ESP hydraulic unit (2) in the area of the line connections	Before opening the brake system the area around the connection point should be cleaned thoroughly. Even the smallest dirt particles, introduced into the hydraulic components, can lead to malfunctions and a total failure of the hydraulic system
5	Unscrew union nuts for pressure circuit and secondary brake circuit (3) and union nuts for brake lines (4) of ESP hydraulic unit (2)	Before detaching, mark brake lines relative to the corresponding line connection, in the process observe the markings on the ESP hydraulic unit (2). Trace line routing to the corresponding wheel. Collect any brake fluid which runs out in a fluff-free, absorbent cloth. Seal brake lines and line connections on the ESP hydraulic unit (2) immediately with stop plugs in order to prevent the ingress of foreign objects. Do not mix up brake lines, observe markings.
			*BA42.45-P-1002-01J
		Box wrench bit	Figure
		Box wrench bit	Figure
		Set of stop plugs	Figure
6	Unlock ESP control unit connector (5) and detach from ESP control unit (N47-5)
7	Pull ESP hydraulic unit (2) with bracket of ESP hydraulic unit (6) out of rubber mounts (8)	Flush off brake fluid which runs out in the area of the longitudinal frame member with water in order to avoid paint damage. Coat rubber mounts (8) with liquid lubricant for the purposes of easier installation
		Lubricant paste	*BR00.45-Z-1002-06A
8	Attach adhesive pad to protect the A/C line at bracket of ESP hydraulic unit (6)
9	Detach bracket of ESP hydraulic unit (6) from ESP hydraulic unit (2); for this purpose remove bolts (7)		*BA42.45-P-1003-01J
		Torx bit set	Fig 6
10	Detach ESP control unit (N47-5) from ESP hydraulic unit (2); for this purpose remove bolts (9)	Torx bit set	Fig 6
11	Install in the reverse order
12	Bleed brake system		AR42.10-P-0010GZ
	Checking
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
13	Check brake system for leaks		AR42.10-P-0100-01GZ

ELECTRONIC STABILITY PROGRAM (ESP)

Number	Designation			Model 164.1/8
BA42.45-P-1002-01J	Union nut, brake line to ESP hydraulic unit		Nm	18
BA42.45-P-1003-01J	Bolt, ESP hydraulic unit to bracket	M6	Nm	8
		M8	Nm	-

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Lubricating paste, rubber parts 2.5 kg, DB supply specification 6867.00	A 000 989 01 60

Fig 3: Identifying Box Wrench Bit (000 589 75 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Box Wrench Bit (140 589 00 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Set Of Stop Plugs (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Torx Bit Set (000 589 01 10 00)

Courtesy of MERCEDES-BENZ USA
