Remove, install brake line from stepped tandem brake master cylinder to hydraulic unit - AR42.50-P-0002GZ
MODEL 164
| Remove/install | |||
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Brake fluid notes | All models | AH42.50-P-0001-01A | |
| Notes on externally invisible brake fluid loss | Model 164 | AH42.10-P-9406-02GZ | |
| Notes on repairs to brake system | All models | AH42.00-P-0003-01A | |
| 1 | Open engine hood and raise to vertical position | AR88.40-P-1000GZ | |

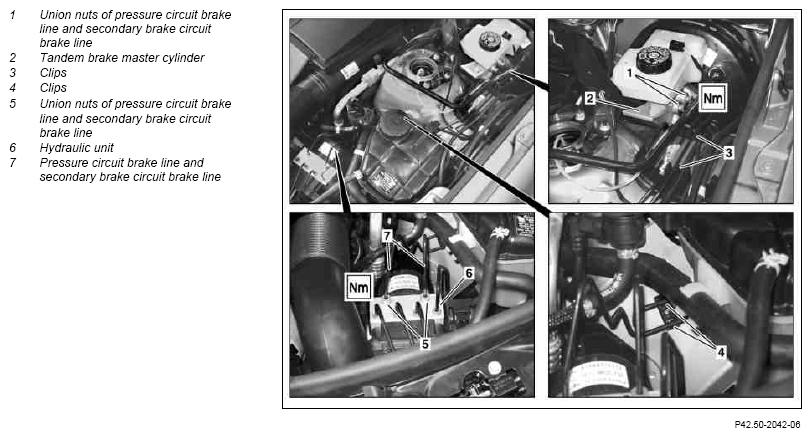

| 2 | Unscrew union nuts from pressure circuit brake line and secondary brake circuit brake line (1) from tandem master brake cylinder (2) | ||
| *BA42.10-P-1003-04J | |||
| Figure | |||
| Figure | |||
| 3 | Unclip pressure circuit brake line and secondary brake circuit brake line (7) | ||
| 4 | Unscrew union nuts from pressure circuit brake line and secondary brake circuit brake line (5) from hydraulic unit (6) | ||
| *BA42.45-P-1002-01J | |||
| Figure | |||
| Figure | |||
| 5 | Remove pressure circuit brake line and secondary brake circuit brake line (7) | ||
| 6 | Install in the reverse order | ||
| 7 | Bleed brake system | AR42.10-P-0010GZ |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 164.1/8 | |
|---|---|---|---|
| BA42.10-P-1003-04J | Brake pipe to master brake cylinder | Nm | 18 |
ELECTRONIC STABILITY PROGRAM (ESP)
| Number | Designation | Model 164.1/8 | |
|---|---|---|---|
| BA42.45-P-1002-01J | Union nut, brake line to ESP hydraulic unit | Nm | 18 |
