Remove/install front floor covering (right) - AR68.20-P-2070GZ

MODEL 164

Front seat removed for better illustration. Shown on model 164.1

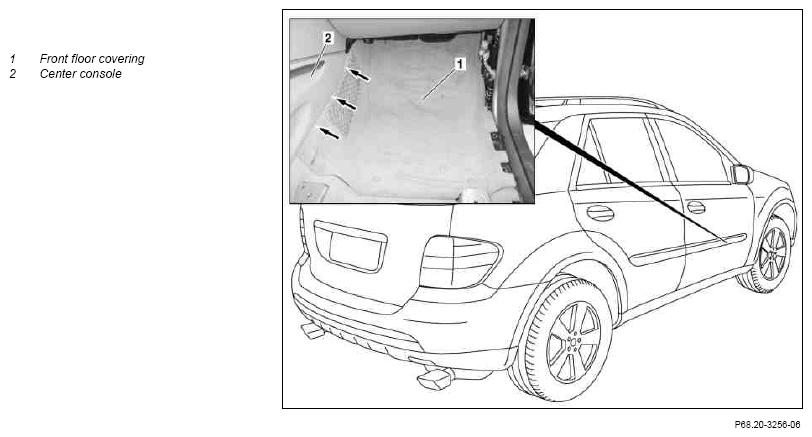

Fig 1: Identifying Front Right Floor Covering Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move front passenger seat toward rear
2	Remove paneling in footwell.	Right side only.	AR68.30-P-4010GZ
3	Move out front floor coverings (1) below center console (2)	Carefully raise center console (2) with mounting wedge (arrows) to prevent damage
		Mounting wedge	Figure
4	Remove front floor coverings (1)	Right side only. Remove through front door
5	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
