Remove/install head restraint on front seat - AR91.16-P-0040GZA
MODEL 164 Mechanically adjustable head restraint

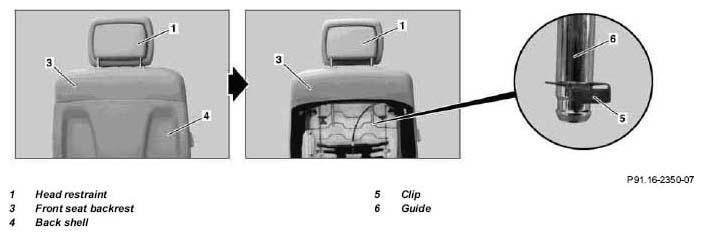

Fig 1: Identifying Head Restraint On Front Seat Components - Mechanically Adjustable Head Restraint (1 Of 2)

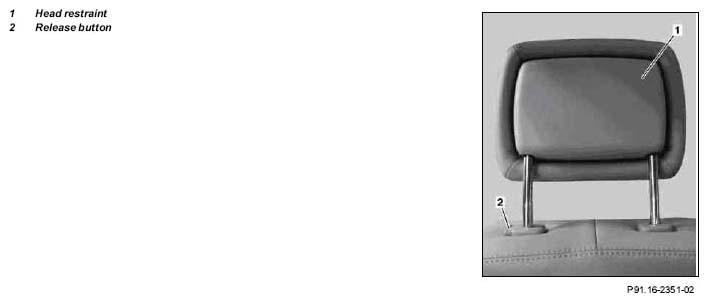

Fig 2: Identifying Head Restraint On Front Seat Components - Mechanically Adjustable Head Restraint (2 Of 2)
MODIFICATION NOTES
| 26.7.06 | "Disconnect/connect battery ground line" removed | Step 2 |
| Remove/install | |||
|---|---|---|---|
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove back shell (4) from the front seat backrest | AR91.10-P-1915GZ | |
| 2 | Unclip clip (5) from guide (6) of head restraint | ||
| 3 | Disconnect electrical connector | ||
| 4 | Tilt front seat backrest (3) backwards | ||
| 5 | Press release button (2) and pull out head restraint (1) upwards | ||
| 6 | Install in the reverse order |
